IOGEAR Miniview Symphony 4-Port VGA/USB KVM Switch

GCS1774

$249.95

Discontinued
For upgrade or replacement options: Contact Us

IOGEAR GCS1774 Description

Miniview Symphony GCS1774 Multi-function 4-Port KVM Switch - 4-port Miniview Symphony Multi-function KVM Switch, KVM/USB2.0 Peripherals, Networking/Audio

IOGEAR's Symphony multi-function 4-Port KVM Switch represents the new wave in KVM technology. The Symphony allows you to control four computers using a single VGA monitor, USB keyboard and mouse. In addition, it has a built-in USB 2.0 hub, Ethernet 10/100 switch, and audio sharing capabilities.

With its built-in USB 2.0 High Speed hub, slow transfer rates are a thing of the past. Fully compatible with USB 2.0 standards, this KVM allows you to share your USB peripherals and transfer data at up to 480 Mbps. In addition, the audio ports allow you to connect one set of speakers and microphone, and share them among your computers.

To complement your KVM setup, IOGEAR's Symphony KVM sports a full-featured Ethernet 10/100 switch. This built-in Ethernet switch allows you to easily network and share internet with your computers. Among its many features, it supports auto-sensing, 10/100 Mbps speed, and is fully compliant with 802.3 networking standard.

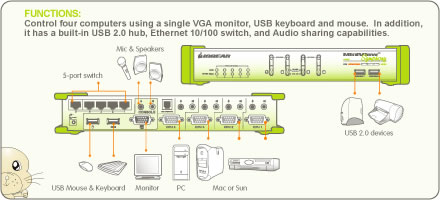

IOGEAR GCS1774 Functions

IOGEAR GCS1774 Features/Benefits

  • Four 6 ft (1.8m) cables included
  • Multi-function USB KVM switch integrates a USB 2.0 hub, Ethernet switch, and audio
  • Controls four computers with a single VGA monitor, USB keyboard and mouse
  • Built-in USB 2.0 peripheral sharing to share printers, scanners, hard drives, etc., with data transfer rates of up to 480 Mbps
  • Built-in 3 port 10/100 Mbps Ethernet switch allows you to easily network and share Internet with your computers
  • Share one set of speakers with all your computers
  • Independent switching of KVM, USB peripherals, and audio focus
  • Port selection via Hotkeys and front push-buttons
  • Auto scan mode for monitoring all computers
  • Power on detection - automatically switches to the first powered on port
  • Superior video quality - up to 2048 x 1536
  • Firmware upgradeable
  • Easy installation - no software required
  • Keyboard and mouse emulation for error-free boot up
  • Hot pluggable - add or remove computers without powering down the switch
  • Compatible with multiple operating platforms (PC, Mac, and Sun)

IOGEAR GCS1774 Requirements

  • CONSOLE
  • VGA or SVGA monitor
  • USB style mouse
  • USB style keyboard
  • COMPUTER
  • 1 x VGA or SVGA port
  • 1 x Type A USB port for keyboard/mouse cable
  • 1 x Type A USB 2.0 port for USB hub cable
  • Supports Windows 98SE/ME/2000/XP; Mac OS 8.6 or higher; Solaris; Linux
  • AUDIO
  • Requires 2-piece powered speaker system

IOGEAR GCS1774 Package Contents

  • 1 x GCS1774 4-Port KVM Switch
  • 4 x Custom 6' (1.8m) KVM cables
  • 1 x Firmware upgrade cable
  • 1 x Power adapter
  • 1 x User manual
  • 1 x Quick start guide

IOGEAR GCS1774 Specifications

FunctionGCS1774
Resolution2048 x 1536
Operating Temperature80-50 Celsius
Storage Temperature-20-60 Celsius
LAN Connection10/100 Mbps
Scan Interval1-99 secs (5 sec default)
Power ConsumptionDC 5.3V; 5W; 1000mA
Cable Length6 ft
Humidity0-80% RH
CPU Connectors
MouseUSB
KeyboardUSB
MonitorVGA HD-15
PeripheralsUSB 2.0 port
Dimensions
Depth3.5"
Height3.5"
Length10.63 in
Weight
Unit Wt.2.03 lbs
Housing
CaseMetal
Power
Voltage DC 5.3V; 2.4A
Console Connectors
Keyboard1 x USB Type A female
Mouse 1 x USB Type A female
Audio 1 x speaker; 1 x mic
Flash ROM Upgrade 1 x RJ-11
Monitor 1 x HDB-15 female
LEDs
LAN 5 (green)
Link5 (green)
USB Peripherals2 (green)
Computer Connections
Direct4
UPC / EAN Barcode icon
UPC 881317004529
EAN 0881317004529
