IOGEAR MiniView SE 2-Port w/Cables

GCS82A

$139.95

Discontinued
Replaced by: IOGEAR GCS1802
Alternative options: Contact Us

MiniView™ SE GCS82A KVM Switch - MiniView™ SE 2 Port Desktop KVM Switch, PS/2

A faster Way To Connect! Once again, IOGEAR raised the bar on quality KVMs. These desktop PS/2 KVMs feature the latest in micro-design and technology. Setup is fast and easy; simply plug cables into their appropriate ports. The 2 PS/2 console ports are on the front of the unit for easy and convenient access. IOGEAR's MiniView™ SE GCS82A provides two convenient methods to access the connected computers: use push-button selection switches, located on the unit's front panel; or type Hot Key combinations from the keyboard. There is no better way to save time and money than with IOGEAR's MiniView™ SE GCS82A.

Cables Included!

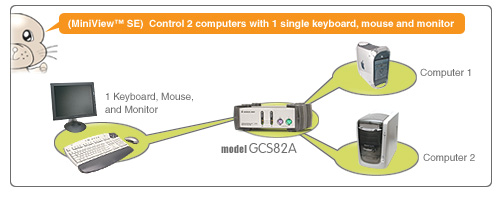

IOGEAR GCS82A Diagram and Application

IOGEAR MiniView 2-Port KVM Switch GCS82A

IOGEAR GCS82A Features and Benefits

  • Use one keyboard, monitor and mouse to control up to two PCs
  • Works with PS/2 compliant computers
  • Operating system independent
  • Plug-n-Play monitor support
  • MiniView™ switches support video resolutions up to 2048 x 1536
  • Self or Bus powered
  • No software required
  • Built in AutoScan mode
  • LED's allow for easy status monitoring
  • Increases desk space and productivity
  • Decreases power and equipment costs
  • Trim-line, compact design
  • 3 Year Limited Warranty
IOGEAR MiniView GCS82A IOGEAR GCS82A MiniView GCS82A
PS/2 console placed in front for easy access No DIP switches, software or power supply needed VSE: Patented Video Signal Enhancement technology supports ultra high resolution up to 2048 x 1536

IOGEAR GCS82A Requirements

  • PS/2 Enabled/Compliant Computer System

IOGEAR GCS82A Package Contents

  • 1 Miniview SE 2-Port KVM switch GCS82A
  • 2 sets of premium bonded KVM cables
  • 1 installation manual
  • 1 quick start guide
  • 1 product registration card

IOGEAR GCS82A Specifications

Function GCS82A
Computer Connections
Direct 2
Console Connectors
Keyboard 1 x 6 pin mini-DIN Female (PS/2)
Monitor 1 HDB-15 Female (Std. VGA/SVGA)
Mouse 1 x 6 pin mini-DIN Female (PS/2)
CPU Connectors
Keyboard 2 x 6 pin mini-DIN Female (PS/2)
Monitor 2 HDB-15 Male (Std. VGA/SVGA)
Mouse 2 x 6 pin mini-DIN Female (PS/2)
Dimensions
Height 1.7
Length 3
Width 5.2
Emulation
Keyboard PS/2; AT
Mouse PS/2
Housing
Case Metal
LEDs
On Line 2
Selected 2
Port Selection Pushbutton Switch / Hot Keys
Power
Amps 20 mA (Max.)
Voltage DC 9V
Power Consumption DC 9V 180 mW (Max.)
Scan Interval 5 sec.
Video Resolution 2048 x 1536 (Max.); DDC; DDC2B; DDC2AB
Weight 1.1LBs
