Gefen 4:1 HDMI, 5.1-Channel Audio AV Processor with Amp

GTV-HT-AUDPROCN

$999.00

Discontinued
For upgrade or replacement options: Contact Us

The GefenTV GTV-HT-AUDPROCN 4x1 AV Processor with Amp is the perfect addition to your Home Theater System. Enjoy DVD or Blu-ray movies with surround sound or create the ultimate gaming experience. With its compact size, it offers an alternative to large overly-complicated Home Theater Receivers.

The GTV-HT-AUDPROCN 4x1 AV Processor with Amp converts and decodes audio from the four HDMI inputs, the coaxial and optical digital inputs, the left and right analog inputs, using its built-in 5.1 channel Dolby Digital and Dolby ProLogic II Surround processor for an unbelievable home theater experience. Speakers can be connected directly to its internal seven audio amplifiers, or the seven preamp outputs can be connected to a multi-channel audiophile amplifier. The subwoofer preamp output connects to any powered subwoofer. The internal power amplifiers deliver up to 50 watts per channel RMS and feature five-way binding post speaker terminals for a secure speaker wire connection. To provide a more dynamic sound quality to your speaker system, front left and front right amplifier and preamp-level outputs may be used to bi-amplify sound to the two front main channels. When a different digital or analog audio input is selected, the previously selected Hi-Def video source continues to output HD video to the display. This feature allows users to simultaneously watch video from the source while listening to a different audio selection.

The 4x1 AV GTV-HT-AUDPROCN Processor with Amp features an easy-to-read LCD menu display that facilitates the setup and calibration of the Dolby processor and individually displays the calibration settings for the size, distance, and output levels of each speaker. The unit has a single Trigger Input and single Trigger Output terminals to allow system integration. The unit can be controlled using the front-panel push buttons, the included IR remote, or from an automation system using its RS-232 port.

How It Works:

The GefenTV GTV-HT-AUDPROCN 4x1 AV Processor with Amp switches four HDMI sources, using (4) GEFEN-supplied HDMI cables. Use the supplied TOSLINK or a S/PDIF cable to connect two digital audio sources to the individual coaxial and optical inputs. Use Left/Right RCA cables to connect a stereo analog audio source to the RCA inputs. Connect a locking HDMI cable from the HDMI output of the AV Processor to any HDTV display. If you are using external multi-channel power amplifiers that have provisions for remote power control, connect the 12V Trigger Out from the processor to the amplifier's trigger input. Connect the included 24V power supply and plug the AC power cord into an available electrical outlet. Control the processor using the front-panel buttons, the supplied IR remote control, an RS-232 automation device, or the Trigger Input terminals on the rear of the unit. Connect the processor's Trigger Output to activate a 12V-controlled AC power strip or surge protector to power on the sources, HDTV display, powered subwoofer, and other equipment that is part of your AV system whenever the AV Processor is turned on, and turn them off to conserve energy when the system is not in use.

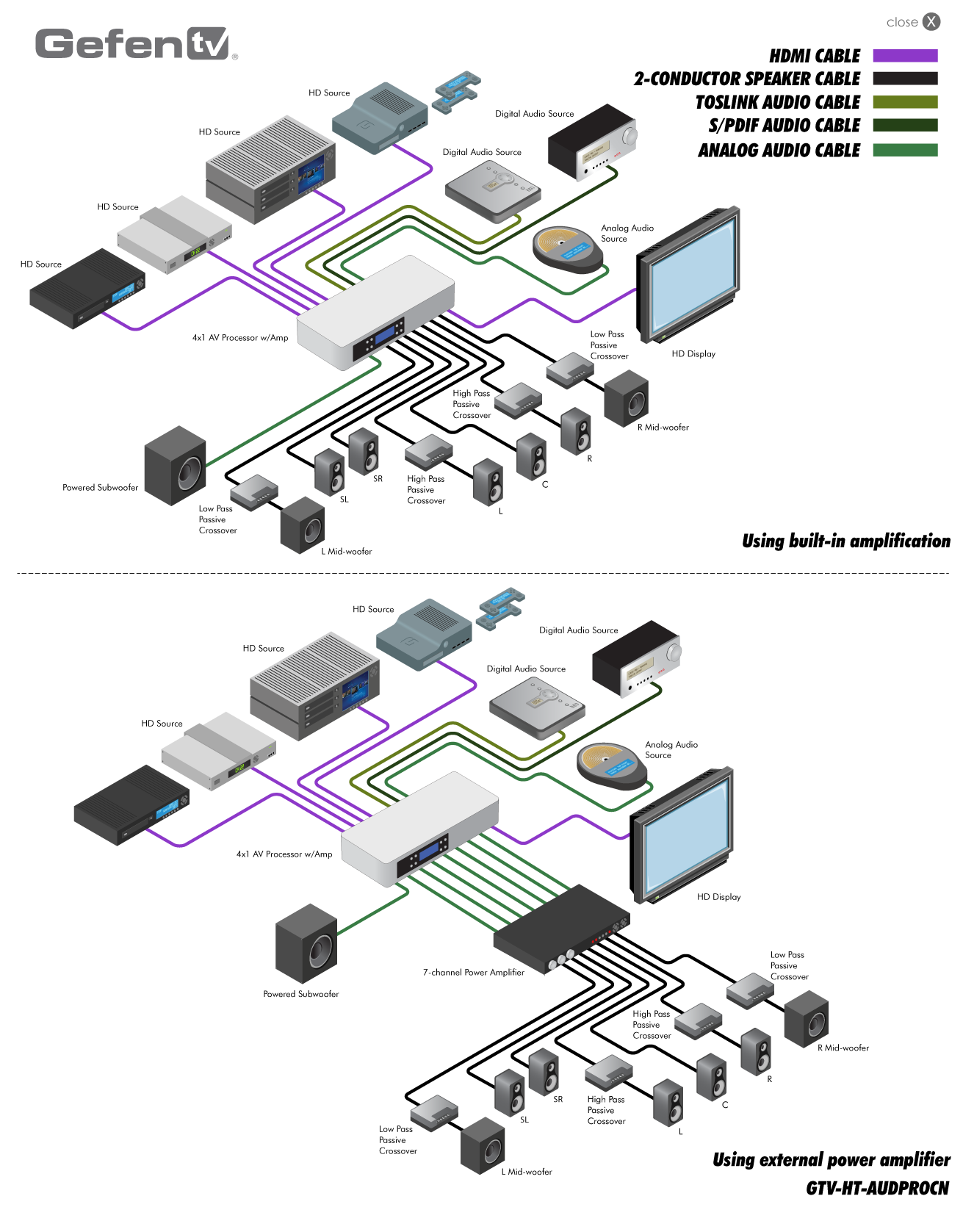

GefenGTV-HT-AUDPROCN Diagram

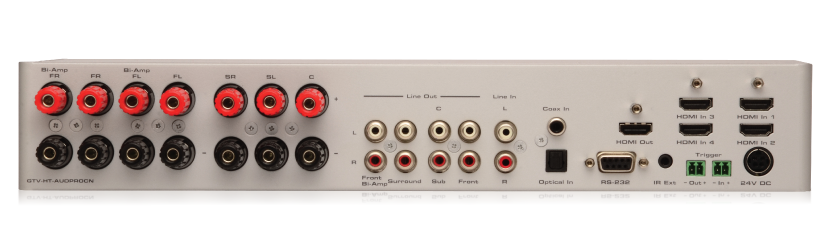

Gefen GTV-HT-AUDPROCN Rear View

Gefen GTV-HT-AUDPROCN Features and Benefits:

  • Supported HDMI Features:
    • Resolutions up to 1080p Full HD
    • HDCP compliant
    • 12-bit Deep Color
    • 3DTV pass-through
    • Lip Sync pass-through
  • Supported audio formats: up to 5.1 channels of Dolby Digital, Dolby Pro Logic, Dolby Pro Logic II, and LPCM
  • 6 channels of preamp level analog audio outputs, including subwoofer pre-amp level output
  • 7 channels of amplified analog audio output up to 50 Watts RMS per channel
  • Two sets of front left and right amplified and preamp level outputs for use in bi-amplified systems
  • 5-way Binding Post speaker terminals
  • Test tone generator for speaker system set-up
  • LCD status display
  • Front panel buttons for power, volume, mute, source, and menu navigation
  • Hand-held IR remote control
  • IR control via front panel sensor and rear panel IR Extender input
  • Serial (RS-232) control for automation
  • Trigger Input for remotely powering on the AV Processor
  • Trigger Output for power-on/off control of outboard power amps and displays
  • Field-upgradable firmware via RS-232 port
  • External / Internal EDID management
  • Locking power supply connector
  • Compact size

Gefen GTV-HT-AUDPROCN Diagram
Gefen GTV-HT-AUDPROCN AV Processor Diagram

Gefen GTV-HT-AUDPROCN Package Contents:

  • 1 GTV-HT-AUDPROCN 4x1 AV Processor with Amp
  • 2 6 ft. Locking HDMI cables
  • 2 6 ft. HDMI cables
  • 1 6 ft. TOSLINK cable
  • 1 IR Remote Control
  • 1 24V DC Power Supply
  • 1 Quick-Start Guide

Gefen GTV-HT-AUDPROCN Specifications:

Mechanical
Width 14.75 in. (375 mm.)
Height2.5 in. (64 mm.)
Depth6.9 in. (175 mm.)
Weight6 lbs.
Supported Formats
Audio (5.1 channels max)Dolby Digital; Dolby Pro Logic;
Dobly Pro Logic II; LPCM
Connectors
Video Input4 x HDMI Type A, 19-pin, female
Video Output1 x HDMI Type A, 19-pin, female
IR1 x 3.5mm mini-stereo
Audio Inputs1 x S/PDIF (coax);
1 x TOSLINK (optical);
2 x L/R RCA (analog)
Speaker Outputs7 x pairs of five-way binding posts
Analog Audio Outputs7 x RCA type, pre-amp level
Subwoofer Output1 x RCA type, pre-amp level (subwoofer)
Trigger Input1 x Phoenx-type terminal block
(+3 to +12V DC, 100mA max.)
Trigger Output1 x Phoenx-type terminal block
(+12V DC, 100mA max.)
RS-2321 x DB-9, female
Electrical
Maximum Pixel Clock225 MHz
Power Amplifier Channels7
Power
Power Output25W/50W rms per channel
Power Input24V DC / 6.25A
