IOGEAR Cat5 Video Extender

GVE120

$279.95

Discontinued
Recommended replacement: Adder ALPV150
Alternative options: Contact Us

Cat5 Video Extender Kit - GVE120

Description
The GVE120 Video Extender System allows you to extend the distance between the computer system unit and the display monitor by up to 430 feet. It accomplishes this by means of a local transmitting unit (GVE120L), and remote receiving unit (GVE120R), connected by standard Category 5 twisted pair Ethernet cable.

The GVE120 Video Extender System is ideal for factory and construction sites, or any installation where the display needs to reside in a harsh setting, but you want the system equipment kept in an environmentally friendly location. The Extender System is also useful for control and security purposes, where you can have the system unit in a secure area at the same time that you put the display in an area that is convenient for viewing.

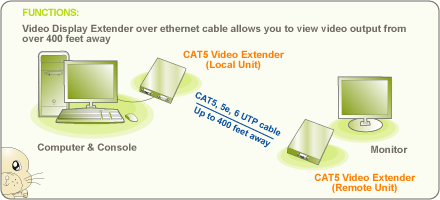

Function Diagram



Features

  • Uses Category 5 Ethernet Cable: For Economy; Easy Installation; and Utmost Data Transfer Reliability
  • High Resolution Video - Up To 1600 x 1200@100 m
  • Supports VGA, SVGA, and Multisync Monitors
  • Long Distance Transmission - Up to 130 m (430')

Requirements
  • Macintosh Users:
  • All MACs With Analog VGA Support
  • PC Users:
  • All PCs With Analog VGA Support
  • VGA, SVGA, Multisynce Compatible

Package Content

  • 1 - 1 IOGEAR Video Extender (GVE120)
  • -- Remote Unit (GVE120R)
  • -- Local Unit (GVE120L)
  • 1 - VGA (HD15) male - VGA (HD15) male / 6 feet cable
  • 2 - 9V 500ma Power Adapter
  • 1 - Quick Start Guide
  • 1 - Warranty / Registration Card

Specifications

Function GVE120
Cable Distance 150m (500 ft.)
Cable Type Category 5, 5e, & 6 STP / UTP
Case
Case Qty. 6
Height 13
Length 17
Width 15
Connectors (Input) Local: 15 pin HDB Male; Remote: 8P8C Jack
Connectors (Output) Local: 15 pin HDB Female/8P8C Jack ; Remote: 15 pin HDB Female
Dimensions
Height 0.9 in. (24 mm.)
Length 4.0 in. (104 mm.)
Width 3.8 in. (98 mm.)
Housing
Case Metal
LEDs
Power On 1
Package Dimensions
Depth 4.75 in.
Height 10.5 in.
Width 8.0 in.
Power Consumption DC 9V 130mA (Max)
Signal Type VGA, SVGA, and Multisync
Video Resolution 1024 x 768 @ 150 m
Weight
Case Wt. 21
