IOGEAR 4-Port VGA Video Splitter



Replaced by: IOGear GVS74
Alternative options: Contact Us

IOGEAR 4 Port Video Splitter GVS94 - 4 Port VGA Video Splitter for use with analog displays.

The Video Splitter is a signal booster and splitter that is used to take video input from a single source and direct it to four video outputs for monitors using analog signals. The signal boost obtained by using the GVS94 allows you to not only split the signal but to extend the distance so that you can send the signal to about 215 feet away. This is no small feat, your average VGA card, over a standard VGA cable, sends a clear VGA signal approximately 25 feet. Dividing this between other displays reduces the video quality. This is why IOGEAR's video splitter are the best choice for allowing you to carry and split the video signal to more that one display with the same quality as the original signal.

Bandwidth is the term that is used to describe the signal capacity of these units. In general, bandwidth is directly proportional to the amount of data transmitted per unit of time. Specifically, in analog signals, bandwidth is the difference between the highest-frequency and the lowest frequency components of a given signal. For example a voice telephone signal has a bandwidth of 3000 Hz (or 3000 cycles per second), where an analog TV signal has a bandwidth of approximately 6MHz (or 6 million cycles per second) which is approximately 2000 times greater than a simple voice phone call. These units have a bandwidth of 250MHz (which is 250 million cycles per second) and that is 40 times greater than a simple TV signal. The high bandwidth allows for the transmission of large amounts of information at a very high rate of speed, thus allowing for the use of high resolution settings upwards of 1920 x 1440 in 24 or 32 bit true color mode.

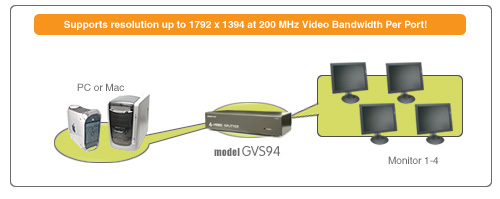

IOGEAR GVS94 Function

IOGEAR 4-Port Video Splitter GVS94
IOGEAR GVS94 Features/Benefits
  • Ultra high 250 MHz bandwidth
  • Superior video quality; maintains highest signal strength in all applications up to 1920 x 1440
  • Amplifies video signals increasing transmission distance up to 215 feet
  • Supports up to 4 VGA monitors
  • Daisy chainable; allows you to expand your video splitter set-up beyond 4 displays
  • Hassle free, no software to install, instant installation and use.
  • Hot plug capability, hot swappable, Plug-N-Play
  • Compact design for easy placement
  • All metal housing
  • Supports DDC, DDC2, DDC2B at Port 1.
IOGEAR Video Splitter GVS94 IOGEAR GVS94 Video Splitter GVS94
LED display for easy status monitoring Uses standard VGA Connections Supports video resolution up to 1792 x 1344
IOGEAR GVS94 Requirements
  • Macintosh Users - all MACs with analog VGA support
  • PC Users - all PCs with analog VGA support
  • VGA, SVGA, Multisynce Compatible
  • Supports DDC, DDC2, DDC2B at Port 1
IOGEAR GVS94 Package Contents
  • 1 IOGEAR Video Splitter (GVS94)
  • 1 DC 9V Power Adapter
  • 1 User Manual
  • 1 Registration / Warranty Card
IOGEAR GVS94 Specifications

Cable Distance 215 Feet
Case Qty. 12
Depth 13.0in. (33cm)
Height 14.0in. (35.6cm)
Width 20.0in. (50.8cm)
Connectors (Input) 15 pin HDB Male
Connectors (Output) 4 x 15 pin HDB Female
Daisy Chain Dependance on Signal Strength
Height 1.5 inches
Length 7.75 inches
Width 3.0 inches
Case Metal
Humidity 0 - 80% RH (Non Condensing)
Power On 1
Operating System Support Computers with Analog VGA Display Support
Operating Temperature 5 - 40C (Celsius)
Package Dimensions
Depth 2.5in. (6.35cm)
Height 6.5in. (16.5cm)
Length 9.5in. (24.1cm)
Power Consumption DC 9V 0.82 W (Max)
Signal Type VGA, SVGA, and Multisync monitors
Storage Temperature -20 - 60C (Celsius)
VGA Bandwidth (-3db) 250 MHz
Video Performance Supports DDC, DDC2, DDC2B at Port 1
Video Resolution 1920 x 1440 @ 60 Hz
Case Wt. 17.4 lbs (7.8Kg)
Package Wt. 1.74 lbs (.78 Kg)
Unit Wt. .99 lbs. (.45 Kg)
