Avocent HMX Desktop Over IP 1050 User Station


Save $46.39

Recommended replacement: Avocent HMX 1070
Alternative options: Contact Us

The Avocent HMX 1050 digital workstation extender provides hardware-based digital desktop extension of video, keyboard, mouse, USB mass storage, and audio signals. The HMX 1050 solution allows users to back-rack digital workstations without impact to power user operations. The HMX1050 extender consists of a computer node and user node interconnected in a point-to-point manner at Gigabit Ethernet rates using IP protocols over a single UTP cable.

Avocent HMX1050 User Station Features:

  • Digital Desktop Over IP - Provides quality high resolution video using cost-effective UTP cabling and networking devices
  • Advanced Real-Time Compression - Provides frame-by-frame compression resulting in near-zero latency. Eliminates OS specific software and drivers that consume precious server resources
  • DVI-I Video - Supports both digital and analog video computers and display devices for high resolution quality
  • CD Quality Audio - Provides CD quality audio performance for users with computer generated audio applications
  • USB 2.0 Ports - Includes four USB 2.0 ports for keyboard, mouse, and mass storage devices
  • Operates on Standard TCP/IP - Allows the computer and user to be situated anywhere on the 100 or 1000Mbps network with full routing of data across routers, switches and subnets
  • Encryption of Network Data - Ensures full security of user data using 128 bit AES encryption
  • Single Wire Solution - Extends video, audio, and USB signals over a single UTP cable for ease of install and maintenance
  • Upgradeable - Allows future features of the ECMS2000U digital workstation extender to be added to existing hardware

The Avocent HMX Desktop Over IP Solution consists of: (all sold separately)

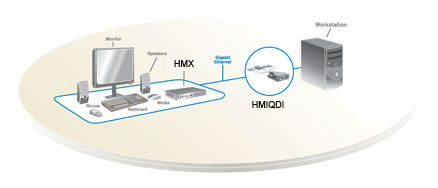

Avocent HMX Solution Back-Racking Installation
Avocent HMX Solution Back-Racking Installation

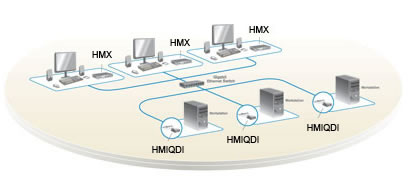

Avocent HMX Solution Point-to-Point Workstation Extension Over IP Installation
Avocent HMX Solution Point-to-Point Workstation Extension Over IP Installation

Avocent HMX1050-001 Specifications:

Height 1.04 in. (26.5 mm.)
Width 8.27 in. (210 mm.)
Depth 5.12 in. (130 mm.)
Weight 1.54 lbs. (0.7 kg.)
Operating Temperature 32° F to 95° F (0° C to 35° C)
Storage Temperature -4° F to 140° F (-20° C to 60° C)
Humidity 10% to 90% (non-condensing)
Power In 100-250VAC / 50-60 Hz
Consumption 20W
PS/2 2
Stereo speaker socket 1
Mono microphone socket 1
RJ45 network port 1
Network Speed 100Mbps or 1Gbps
Encryption SSL/AES 128 bit
Keyboard & mouse PS/2 or USB
Mass storage USB
Stereo speakers 24 bit 44kHz
Microphone Mono
Resolution Video up to 1280x1024 @ 60Hz
Approved Agency cUL, UL, CE, FCC15 Class A
