iBoot-PDU8A-2N20 - Switched & Web Managed 115V, 40A PDU - Dual-AC 5-20P Inlet, 8 x 5-15R Outlets
Dataprobe iBoot-PDU8A-2N20 (1530087)
Cloud Controlled - Switched PDU - Managed PDU - Metered PDU
When you need to reduce costly site visits, ensure business continuity and increase network reliability, iBoot-PDU series gives you peace of mind. iBoot-PDU8A-2N20, a web-accessible, managed PDU with independently controlled outlets, enables multiple users to reboot remotely from anywhere, using any web browser, Telnet client or SNMP manager.
From servers and webcams to IP PBXes and surveillance systems, iBoot-PDU8A-2N20 keeps your network up and running.

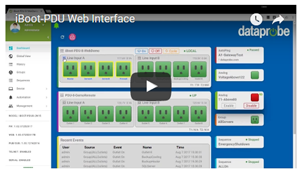

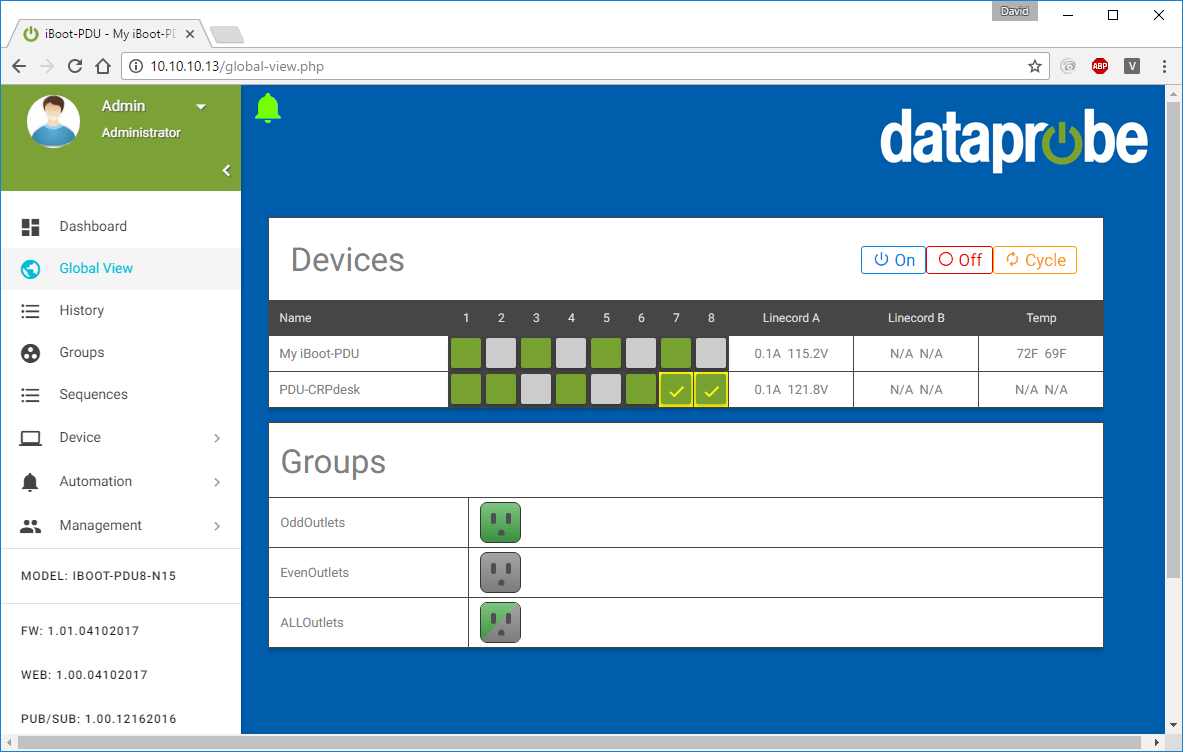

Simple web browser interface
The web browser interface provides the easiest means of managing multiple outlets. One master unit can be connected to 15 expansion units, managing 128 outlets from a single web page interface.
The web page presents a clear status indication of each outlet, current draw across all inputs and the AutoPing monitoring, if implemented.
Each outlet can be individually selected, or multiple outlets can be simultaneously operated. User selectable cycle timer allows single command reboot. Delay timer limits inrush current by staggering power up when multiple devices are simultaneously controlled.
iBoot Cloud Service (iBCS) allows customers with iBoot-PDU to access and control multiple units in multiple locations from a single portal with a single sign-on.
iBCS will not only make using iBoots easier, by consolidating all units into one sign-on and interface, it will also enhance the number of situations where iBoot can be deployed.
- Customers with Dynamic IP addressing to always be able to access their iBoot from any location.
- Service providers manage multiple customer accounts with diverse security configurations.
- Customers that are not allow in-bound connections to access their iBoots.
Monitor critical parameters and take corrective action immediately. Build complex notification and reporting for environmental, power and network faults. Set trigger points and create sequences of responses to keep your network up and running.
- Temperature with accessory probe
- Mains Current
- Mains Voltage
- Time of Day
Manage Multiple Locations / Outlets
One iBoot-PDU can be linked to and manage multiple additional PDUs, creating a single easy to manage cluster. These units can be in the same rack, or across the world, making it easy to view, and operate all your outlets from a single web page.
Outlets can be grouped together to be managed simultaneously. Outlets can be on the same PDU or accross all PDUs in the cluster. Groups are ideal for managing devices with redundant power supplies, or rebooting all email servers at 2AM every night.
|Independently controllable outlets||The iBoot-PDU8A-2N20 is designed to provide power distribution and remote power control. Each iBoot-PDU8A-2N20 allows eight outlets to be independently switched on and off for reboot, energy management and security. The iBoot-PDU8A-2N20 has many features to make the management of power distribution simple and cost effective:|

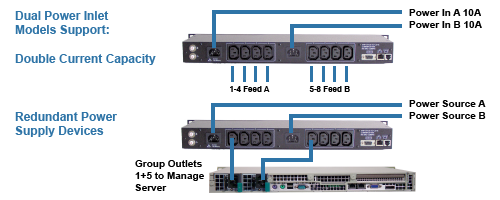

|Dual power inputs for redundant power feeds||The iBoot-PDU8A-2N20 has two inlets (mains) for power redundancy and for higher current devices:|
|Web Browser Control||Simple web browser interface is easy to use and provides complete status information and control of the outlets, and groups.|
|Telnet/Serial CLI control||Telnet and serial access use the same Command Line Interface (CLI) structure and syntax to completely configure the iBoot-PDU8A-2N20, or multiple iBoot-PDUs in a cluster configuration.|
|Multiple Users||Multiple users can be assigned administrator or user only rights, plus access to specific outlets and groups. Users only see the outlets and groups they are assigned to.|
|Grouping of outlets for simultaneous management||Multiple outlets, across multiple iBoot-PDUs in clustered configurations can be linked together in named groups and managed together. This allows for example, power cycling all devices of a certain type together.|
|Multiple iBoot-PDU Cluster Configuration||Additional iBoot-PDUs can be managed from a single unit. One master iBoot-PDU provides the communication to the users and continuously receives status information from the rest of the iBoot-PDUs in the cluster. Groups can be created across multiple PDUs and controlled simultaneously.|
|Automation||The iBoot-PDU8A-2N20 can monitor voltage, current and temperature to provide automatic response to the physical environment. AutoPing testing monitors network elements. Program complex sequences of outlet actions and notifications to respond instantly to out of normal situations. Temperature monitoring requires add-on probe.|
|Real-Time event control||Set automatic power actions based on your schedule. Restart systems every day to reduce memory bloat. Power up resources only when needed for energy management, lifecycle extension or security.|
|Landline Modem Option||The add-on landline modem supports data calls from terminal devices using the CLI, and direct dial from a tone telephone for simple on/off control when more sophisticated means are not available. Voice modem also allows phone dial tone control with voice response (Basic functions only)|
|Network Management||Setup and Control functions can be linked to any SNMP v2c compatible manager. The iBoot-PDU MIB is downloadable from the iBoot-PDU Support & Downloads page. Reports to syslog server.|
Pays for Itself with the First Service Call Saved
Don't let the cost of downtime keep you from meeting your service and revenue expectations. Keep your critical systems running without expensive service calls. Use low-cost remote power control to automatically reboot failed devices and get up and running in the most cost effective way possible.
iBoot-PDU8A-2N20 will save you time and money by reducing costly downtime. Just point your browser to the iBoot-PDU, login and you are one click away from bringing that failed system back to life. iBoot-PDU will even detect failed systems and take immediate action.
iBoot-PDU8A-2N20 Package Contents
- (1) iBoot-PDU8A-2N20
- (2) 6 ft. NEMA 5-20P Power Cable
- (2) 1U Rack Mount Ears
- (1) 6 ft. Cat5 Network Cable
- (1) 6 ft. USB-A to USB Mini-B Cable (for Serial)
- (1) Quick-Start Guide
- (1) 3-Year Warranty
Dataprobe iBoot-PDU8A-2N20 Specifications
|A/C Power Input||NEMA 5-20 Linecord 115VAC|
20 Amps combined total switched per Linecord
Supplied with NEMA 5-20 Linecord, attached
Web, Telnet, SNMP, SMTP
Port Assignable for Web and Telnet.
SSL Security on Web control
|USB Ports||4 x USB A ports for accessories, modem, temperature probe, etc.|
1 x USB B port for serial port and external battery
|Optional - Temperature Module||USB Dual Temperature Sensors. Sensor 2 on 1m cable.|
|Optional - Landline Modem||56Kbps V.92 Global Compliance, Data or Tone Dial (DTMF) control|
|Switched Outlet||8 x NEMA 5-15 Receptacle,|
12 Amps Max per Receptacle, 20 Amps Max Total per Linecord
|Compliance||UL/cUL Listed 60950-1, 2nd Edition 2014-10-14 (US)|
CAN/CSA C22.2 No. 60950-1-07, 2nd Edition, 2014-10 (Canada)
FCC Part 15 Class B
