16-Port 3-User KVM over IP Switch - Dual Power/LAN


FREE Shipping on orders over $100

The KN2116VA features superior video quality (HD resolution of 1920 x 1200), FIPS 140-2 with level 1 security standards and virtual media transmissions at twice the speed. The KN series provides local console and remote over IP access for users to monitor and access their entire data center over a network. In addition, it offers out-of-band access with external modem support for BIOSlevel troubleshooting when the network is down.

New KN Series Exclusives

  • High grade security - supports FIPS 140-2 level 1 security standards
  • Extreme virtual media speed - 2 x faster virtual media transmission speed
  • Advanced FPGA graphics processor - with an HD resolutions of 1920 x 1200

Product Features and Benefits

  • Supports PS/2, USB, Sun Legacy (13W3) and serial (RS-232) connectivity
  • Local console provides USB keyboard and mouse support
  • Supports multiplatform server environments: Windows, Mac, Sun, Linux and VT100 based serial devices
  • Audio enabled
  • Dual Power Supply
  • High video resolution - up to 1920 x 1200 @ 60Hz with 24-bit color depth at the switch's local console and on remote session displays
  • Firmware upgradeable
  • Remote authentication support: RADIUS, LDAP, LDAPS, and MS Active Directory
  • Supports SSL 128-bit data encryption and RSA 2048-bit certificates to secure users log in from browser
  • Flexible encryption design allows users to choose any combination of 56-bit DES, 168-bit 3DES, 256-bit AES, 128-bit RC4, or Random for independent KB/Mouse, video, and virtual media data encryption

Package Contains

  • 1x KN2116VA KVM over IP Switch
  • 2x SA0142 Serial Adapters (RJ45-F to DB9-M; DTE to DCE)
  • 2x Power Cords
  • 1x Mounting Kit
  • 2x Lok-U-Plugs
  • 1x Lok-U-Plug Installation Tool
  • 1x Foot Pad Set (4 pcs.)
  • 1x User Instructions

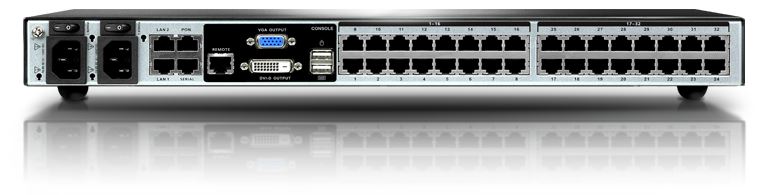

Computer Connections
Maximum256 (via Cascade KVM Switches)
Console Connections
Port SelectionPushbuttons, Hotkeys, GUI
Console Ports2 x USB Female
1 x DVI-D Female
1 x VGA HDB-15
1 x RJ-45 Female
KVM Ports16 x RJ-45 Female
USB Ports3 x USB Female
Audio2 x Audio Jack Female
Laptop USB Console (LUC) Port1 x Mini-USB Female
PON1 x RJ-45 Female
Serial1 x RJ-45 Female
LAN Ports2 x RJ-45 Female
Power2 x IEC 60320/C14
Power2 x Rocker Switches
Port Selection2 x Pushbuttons
Reset1 x Semi-recessed Pushbutton
Link 10 /100 /1000 Mbps2(Red/Orange/Green)
Local1920 x 1200 @ 60Hz
Remote1920 x 1200 @ 60Hz
Power Consumption
Single Power110V/34.54W; 220V/34.76W
Dual Power110V/17.67W; 220V/17.93W (per input)
Operating Temperature32-104°F (0-40°C)
Storage Temperature-4-140°F (-20-60°C)
Humidity0-80% RH, Non-Condensing
Physical Properties
Weight12.26 lbs. (5.56 kg)
Dimensions(L x W x H)17.07 x 16.22 x 1.73 in. (43.36 x 41.21 x 4.40 cm.)
UPC / EAN Barcode icon
UPC 672792403415
EAN 0672792403415
