USB Virtual Media KVM Adapter Cable (CPU Module)

KA7175

$179.00$143.89
Save $35.11
FREE Shipping on orders over $100

 The KA7175 USB Virtual Media KVM Adapter Cable connects the KVM switch to the video and USB ports of the target computer. With its small form factor and light weight design, it represents the next generation of USB Virtual Media KVM Adapter Cables - offering superior signal compensation and delay skew techniques for greatly enhanced video quality.

Features:

  • Auto Signal Compensation (ASC), no DIP switch setting needed for different distances
  • Keyboard and mouse emulation - keeps your server functioning smoothly when it's disconnected from the switch's KVM port or is relocated to a different KVM port
  • Lifetime firmware upgrades
  • Built in ASIC for greater reliability and compatibility
  • CPU module designed with automatic conversion to allow for flexible interface combinations (PS/2, USB) to control all computer types (PC, Mac, Sun)
  • Compact size
  • Virtual Media Support*
  • 1680 x 1050 (Reduced blanking) and 1920 x 1200 (Reduced blanking) supported
  • Superior video quality - supports resolution of up to 1600 x 1200 within the distance of up to 165 feet (50m)

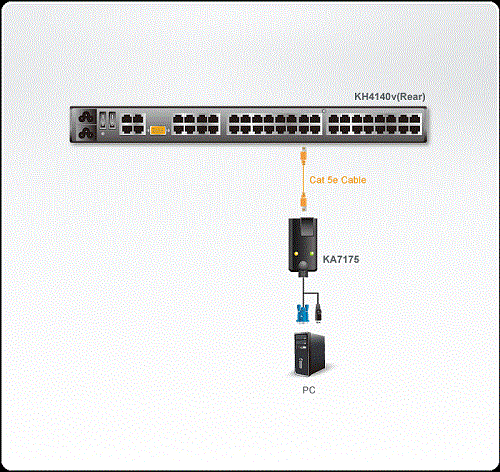

Diagram

diagram



Specifications:

Physical Properties
housing Plastric
Weight 0.3 lbs
Dimensions 18.5x 10.6x 11.8 in.
UPC / EAN Barcode icon
UPC 672792400568
EAN 0672792400568
