Rose Electronics Vista 1x8 DVI USB KVM Switch

KVM-1x8DVIU

$1,699.00

Discontinued
Recommended replacement: Adder AV8PRO-DVI
Alternative options: Contact Us

The Rose Vista KVM-1x8DVIU is a DVI USB KVM switch which allows you to switch DVI video and audio from 8 computers to a one centralized workstation. The video and audio from each computer can be switched to the local KVM station jointly or independently with the push of a button on the front panel or using simple keyboard hotkey commands.

Two USB 2.0 ports are provided for connecting shared high speed USB peripherals. This allows you to share the USB devices between the eight connected computers.  Each connected computer's speaker and microphone outputs are connected to the DVI KVM Switch. This eliminates the need for a set for each computer. The audio can be switched independently or jointly with a computer selection.

Rose Vista KVM-1x8DVIU KVM Switch Back View
Rose Vista KVM-1x8DVIU KVM Switch Back View

Rose KVM-1x8DVIU Features:

  • Available with 8 video ports
  • Supports local USB keyboard and mouse
  • Front panel push-buttons or hotkey switching
  • User definable keyboard hotkey sequence
  • Switch USB hub, speaker and microphone jointly with the CPU selection or independently
  • Supports both digital and analog video
  • USB 2.0 compliant
  • 2 port USB hub for connecting shared USB devices
  • Scanning feature scan through each CPU connection at a fix or programmable rate (Fixed = 5 sec. / Programmable = 10-100 sec.)
  • Multi-platform support
  • Firmware upgradeable through the USB port

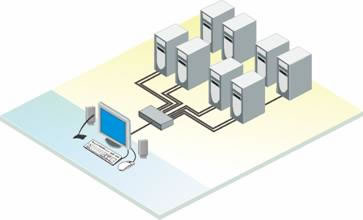

Rose Vista DVI KVM Switch Application Diagram
Rose Vista DVI KVM Switch Application Diagram

Rose KVM-1x8DVIU Specifications:

Mechanical
Height 1.75 in. (4.45 cm.)
Width 12.0 in. (30.5 cm.)
Depth 7.0 in. (17.8 cm.)
Weight 4.05 lbs. (1.84 kg.)
Power
Adapter +5 VDC / 3A
Video
Single Link DVI
Resolution 1080p, 1920 x 1200
Bandwidth 165 MHz
Video In 1.2 Volts p-p
Connectors
 DVI in / out DVI-I 29 pin female
RS232 DB9F
Power Male barrel jack
Serial RS232 to DB9F
Controls Eight front panel computer select buttons
