ADDERView PRO 8-Port DVI KVM

AV8PRO-DVI-US

$1,645.00$1,480.50
Save $164.50

Discontinued
For upgrade or replacement options: Contact Us

Video Input: Dual Link DVI-I (DVI or VGA w/ adapter)
Video Output: Single Monitor (link multiple units for Multi Monitor)
Ports: 8 Computers

The AdderView Pro AV8PRO-DVI-US is a professional grade KVMA switch delivering ultimate flexibility for users who wish to share a high resolution screen and modern USB peripherals between a multiplicity of computers.

The AV8PRO-DVI is designed to enable eight computers to be controlled from a single high resolution KVM console using either dual link DVI or high definition analogue video links. The switch makes use of Adder's True Emulation technology which enables USB HID devices to be continuously emulated to each computer. This unique technology enables instantaneous and reliable hotkey switching whilst also supporting the extra keys and features of enhanced keyboards and mice. Furthermore, the AdderView includes two independently switchable USB 2.0 channels and an audio channel, giving the user the flexibility to attach selected peripherals to different computers. An advanced OSD completes the professional switching experience.

Two AV8PRO-DVI units can linked together to form a 8 Port Dual-Monitor KVM Switch by using VSC41 link cables.

  • Access up to eight computers with one display, keyboard and mouse
  • High definition dual link DVI-I video up to 2K (2048 x 1080) for film post production or WQXGA (2560 x 1600) for medical imaging
  • USB keyboard & mouse with support for almost any keyboard and mouse, graphics tablet, jog shuttle, joystick, 3D explorer, etc.
  • 2-Port USB 2.0 Hub with broad high speed device support
  • Stereo audio support via 3.5mm auxiliary jacks

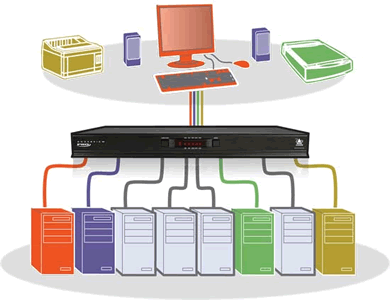

Adder AV8PRO-DVI-US Application Diagram

Adder AV8PRO-DVI Features

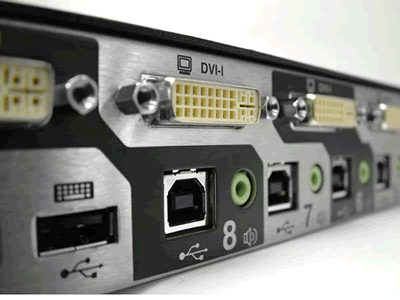

  • Adder AV8PRO-DVI DVI-I video connections with extended EDID

    Full dual link DVI-I video with extended DDC EDID

    The AdderView Pro AV8PRO-DVI features full dual link DVI video delivering 4 megapixel resolutions at 60Hz capabilities enable users to work at very high resolutions including 2K (2048 x 1080) for film post production or WQXGA (2560 x 1600) for detailed medical imaging. DVI-I also allows you to use a mixture of digital sources, including HDMI and DisplayPort, and analog sources including VGA, using passive video adapters.
  • Adder AV8PRO-DVI supports modern keyboards & mice, graphics tablets, jog shuttles, joysticks, and 3D explorers.

    True USB 2.0 emulation

    Unlike most KVM switches, which only support the most basic keyboard and mouse features, Adder's revolutionary 'True Emulation' allows you to use the extra function keys, wheels, buttons and controls that are commonly found on modern keyboards and mice. You can also use any other USB interface device including graphics tablets, jog shuttles, joysticks, 3D explorers, and wireless bluetooth keyboard & mouse*.


  • Adder AV8PRO-DVI - Independent USB & Audio device switching

    Independent USB & Audio device switching

    The AdderView Pro AV8PRO-DVI includes two independently switchable USB 2.0 channels and an audio channel, giving the user the flexibility to attach selected peripherals to different computers. For example, use the KVMA console to work on one computer whilst your USB peripherals are connected to other computers and your speakers are playing music from yet another.


  • Adder AV8PRO-DVI - transparent USB 2.0 Hub with broad high speed device support

    Broad High Speed device support - Transparent USB 2.0 Hub

    An integrated transparent 2-port USB 2.0 hub allows a vast range of USB devices can be connected to the AV8PRO-DVI from non standard keyboard / mouse devices to flash drives, printers and scanners.

  • Adder AV8PRO-DVI Fast & Reliable Switching

    Fast & Reliable Switching

    Country code reporting, extended DDC EDID profile and continuous keyboard and mouse emulation ensure faultless operation. The USB 2.0 switching action has also been carefully engineered to ensure maximum computer reliability when connecting and disconnecting USB devices.

  • Adder AV8PRO-DVI channel selection via remote

    Channel selection options

    The AdderView Pro AV8PRO-DVI can be switched using the front panel buttons, selectable keyboard hotkeys, 3 button mice, an On-Screen-Display (OSD), or using simple ASCII codes via serial RS232. Optionally, you can also use the RC8 remote switch to make your selection. These switching options allow you to rapidly reassign connected devices to any of the connected computers.


  • 2x Adder AV8PRO-DVI as a 8-Port Dual Monitor KVM Switch

    Dual-Monitor Configuration

    Two AV8PRO-DVI units can linked together to create a 8-port dual head KVM switching system by using a VSC41 synchronisation cable.

  • Adder AV8PRO-DVI Multi-platform support

    Multi-platform support

    The AV8PRO-DVI works with all known software and computer platforms, with PS/2, USB and Sun, including Windows (all), DOS, Linux, Unix, BSD, all Sun OS, all Mac OS, NetWare, etc.

  • Adder AV8PRO-DVI - Plug and Play

    Plug and Play

    AdderView Pro KVM devices are delivered in a zero configuration state so you can plug them in and start working on them straight away. There is no need for drivers or software to be installed.


  • Adder AV8PRO-DVI Serial RS232 port for control, synchronisation and upgrade

    Serial RS232 port for control, synchronization and upgrade

    • Remotely switch AV8PRO-DVI using simple ASCII codes
    • Integration with RS232 controlled power switches to provide a complete hard reboot function
    • Flash upgrade

AV8PRO-DVI-US Package Contents

Adder AV8PRO-DVI-US Package Contents

  1. (1) AV8PRO-DVI KVM Switch
  2. (2) 19" 1U rack mount brackets and (4) screws
  3. (1) Flash upgrade serial cable 9-way D male to female
  4. (1) Power adapter (20W) and US-specific power lead
  5. (1) Quick start guide and Safety document
  6. (4) Self-adhesive rubber feet
  7. (1) 2-Year Limited Warranty & Lifetime World Class Support

AV8PRO-DVI Resources

Adder Infinity AV8PRO-DVI Manual Screenshot Adder AV8PRO-DVI Datasheet (PDF)
Adder AV8PRO-DVI Manual (PDF)


Adder AV8PRO-DVI Specifications

Mechanical
Physical1U High metal case
Width19 in. (482 mm.)
Height1.8 in. (45 mm.)
Depth8.5 in. (215 mm.)
Compatibility
Hardware CompatibilitySupports PC, RS/6000, Alpha, SGI, Sun and Apple with USB keyboard and mouse, and VGA or DVI video interfaces
Software CompatibilityOperates with all known software and operating systems including
Windows (all), DOS, Linux, Unix, BSD, all Sun OS, all Mac OS, NetWare etc.
Computer Connections at SwitchUSB 2.0 type B, Dual link DVI-I, 3.5mm stereo jack
Local KVM Console Connection VideoHDD15, Dual-link DVI-D
Keyboard/Mouse2 x USB Type A
Switched USB 2 x USB2.0 Type A
Audio3.5mm stereo jack
Other connectionsOptions (flash upgrade, sync with other AV8PRO-DVI and RS232 triggered power switches): DB9M
Power2.5mm DC jack, power adapter included; 100-240VAC 50/60Hz input to power adapter, 5VDC 4A output from power adapter
Operating Temperature0°C to 40°C / 32°F to 104°F
ApprovalsCE, FCC

The AV8PRO-DVI is also known as AV8PRO-DVI-US.

Question: I'm looking for a 12 - 12 input version
Answer: Thank you for your inquiry.

Please contact your KVM Switches Online sales representative directly at 1-877-586-6654 or via our online chat feature to discuss your project in greater detail.

Question: With the AV8PRO-DVI-US, can you connect to multiple computers using a USB cable only to enable using mouse and keyboard on the various computers? The reason I ask is we currently have an older VGA/PS2 KVM switch which uses a special VGA cable combined with a USB and PS2 connection and we only use the USB connection to connect to the computers and the VGA connection to the KVM switch and I would like to minimize cable clutter by using a straight USB cable.
Answer: Thank you for your inquiry,

You can indeed use simple stand-alone USB A to B cables, like Adders VSC24 (6ft) and VSC29 (16ft), to enable mouse and keyboard on the sources.

To reduce cable clutter, Adder also sells similar combined DVI + USB KVM cables (without PS2 connector) for use with the AV8PRO-DVI - VSCD3 (6ft) and VSCD4 (16ft) - which you can optionally passively adapt to VGA using Adder VSA11 adapters.

Note, If you are looking for a switch for a video wall that doesn't require video switching at all, you may also be interested in a Keyboard Mouse Switch, like Adders CCS-PRO8.

Please let us know if there is anything else we can help you with!
