Avocent LongView IP VG Digital Extender, USB Keyboard & Mouse, dual-DVI-D Video

LVIPDH-001

$2,620.00

Discontinued
Recommended replacement: Adder ALIF2020P
Alternative options: Contact Us

The Avocent LongView LVIPDH-001 is an IP Digital Extender with USB keyboard and mouse connectors, dual-DVI-D video, USB media and audio. This extender will enable you to separate and locate users and their computers anywhere on an existing LAN. This improves data security, removes computers from harsh environments and addresses limited workspace environments.

All of the LongView IP digital extenders eliminate the distance limitations found in analog extenders while maintaining an "at-the-PC" experience for the user. Convenient IP connectivity allows you to select the computer location and provide access to high-quality VGA or DVI video and audio from anywhere in your building. The LongView IP digital extenders also support a comprehensive range of peripherals including DVI-I, CD audio, USB mass storage, keyboard and mouse and other USB devices.

Deploying this solution is fast and easy. Simply attach one of the LongView IP transmitters to the computer, plug the peripherals into the receiver at the user location (desk) and connect both units to the local network.

Avocent LongView LVIPDH-001 Features and Benefits:

  • Full Hardware Solution: All connections to the user desktop peripherals are provided without the need for software, OS, disk or fan
  • DVI Video: Connects to single or dual DVI monitors on the user desktop
  • CD Audio: Connects to the analog speakers on the user desktop
  • Quad USB Ports: Provides connection for up to four USB devices including keyboard, mouse and mass storage devices
  • Dual PS/2: Provides connection for legacy PS/2 keyboard and mouse
  • Ethernet Port: Allows the computer and user to be located anywhere on the 100 or 1000Mbps network with full routing of data across routers, switches and subnets
  • Encryption of Network Data: 128bit AES encryption of all data passing between the computer and the network
  • Upgradeable: Based on an embedded Linux OS, the device is fully upgradeable to allow for future feature enhancements
  • Flexible Mounting: Small form factor can be used on a desk, mounted directly to the back of a monitor or inside the display device

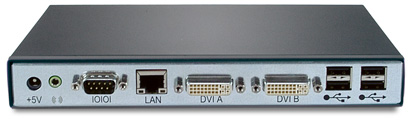

LVIPDH-001_Back
LVIPDH-001 Back View

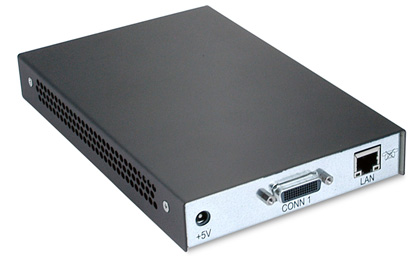

LVIPDH-001_Transmitter
LVIPDH-001 Transmitter



Avocent LongView LVIPDH-001 Specifications:

  Transmitter Receiver
Mechanical
Format External metal case module

Desktop mounting metal case with external power supply

Height 1.10 in. (28 mm)
1.10 in. (28 mm)
Width 5 in. (127 mm)
8.19 in. (208 mm)
Depth 7.87 in. (200 mm)
6.06 in. (154 cm)
Weight 1.65 lbs. (.75 Kg)
2.09 lbs. (.95Kg)
Environmental
Operating Temperature 32°- 95 °F (0°-35°C) 32°- 95 °F (0°-35°C)
Storage Temperature -4°- 140 °F (-20°-60°C) -4°- 140 °F (-20°-60°C)
Power
Humidity 10%-90% (non-condensing) 10%-90% (non-condensing)
Power In 5VDC 100 - 250VAC@1.2A
Power Consumption 6W 1W
Connections
PS/2 No No
USB 1 x USB 4 x USB
VGA No 2 x 1600x1200 @ 60Hz (with adapter)
DVI 1xDVI-D (digital video only)
1xVGA (analog video only)
1900x1200 @ 60 Hz
3.5 mm Stereo Speaker Jack Yes, stereo speakers 24 bit 44kHz Yes, stereo speakers 24 bit 44kHz
Mono Microphone Jack No No
Network Port 1-RJ45 1-RJ45
Network Speed 100Mbps or 1 Gbps 100 Mbps or 1 Gbps
Encryption SSL/AES 128 bit SSL/AES 128 bit
USB Support USB keyboard and mouse and mass storage devices USB keyboard and mouse and mass storage devices
Standards
Approved Agency cUL, UL, CE, FCC15 Class A cUL, UL, CE, FCC15 Class A



Question: I have the Avocent LVIPDH-R and LVIPDH-T Transmitter and Receiver and have been having issues with dual monitor set ups using standard USB connections. Are USB 3.0 or USBss Required for the KVM to support Dual Monitor functionality? Can the devices run on standard USB2.0?
Answer: Thank you for your inquiry. Unfortunately, we do not believe this unit will support dual monitors via the USB connection. To operate with dual monitors, the server will require two DVI connections to the transmitter through the LVIP DH Transmitter Cable and two DVI monitors on the receiver side.
