Raritan MasterConsole 16 Port CAT 5 KVM Switch

MCCAT116

$549.00

Discontinued
For upgrade or replacement options: Contact Us

The Raritan MasterConsole CAT MCCAT116 is a 16 port Cat5 KVM switch which can control up to 16 servers, and switches can be cascaded to control up to 256 servers at distances of up to 150 feet.  The MasterConsole CAT5 Switch works with every leading server (Microsoft Windows NT, Windows Me, Windows 2000, Windows XP, Windows 2003, Windows Vista, Novell NetWare, UNIX and Linux) and uses Cat5/6 cables.

MasterConsole CAT provides a dedicated, intelligent processor at each port so each connected server "sees" its own keyboard and mouse, a unique "keep-alive" design which ensures nonstop server operation in case of power loss to the switch and the support of high-resolution video - up to 1600 x 1200. In combination with leading-edge technology and scalability such as server selection from the front panel channel buttons and by name from pop-up, on-screen menus.

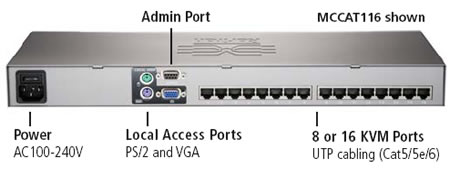

Raritan MasterConsole CAT5 KVM Switch Backside
Raritan MasterConsole CAT5 KVM Switch Backside

Raritan MCCAT116 Features:

  • 1U in height for the CAT5 KVM switch
  • Supports the highest video resolution of up to 1600 x 1200 @ 60Hz in 100 feet and 1280 x 1024 in 150 feet.
  • MCIMs with "keep-alive" technology allow users to add, remove and hot-swap components without interruption to the live servers.
  • MCIMs are available in USB and PS/2 for support of various servers and devices in your data center.
  • Auto-Switching Integrated power supply ensures proper power provision and system reliability.
  • Plug-and-play installation, auto-configuration along with easy-to-use, on-screen displays.
  • Works with a mixture of servers having PS/2 and USB interfaces.
  • Utilizes Cat5e cabling to carry the KVM signaling from the modules (MCIMs) to a single user console.
  • Targets can be labeled with devices' names which allows easier server selection from the on-screen menu.
  • Password authentication Support of one administrator and five user profiles for basic management.
  • AutoScan allows users to scan servers at variable rates. AutoSkip bypasses inactive channels
  • User can control up to 256 servers by cascading units together

MasterConsole CAT5 Application Diagram
MasterConsole CAT5 Application Diagram

MasterConsole On-Screen User Interface
MasterConsole On-Screen User Interface



MasterConsole MCCAT116 Specifications:

Mechanical
Height 1.69 in. (42 mm.)
Width 17.32 in. (400 mm.)
Depth 6.57 in. (167 mm.)
Weight 5.40 lbs. (2.45 kg.)
Power 100V - 240V auto sensing 20 Watts
User Port
VGA HDB-15 (F) x 1 (Blue)
Keyboard PS/2 mini-din 6-pin x 1
Mouse PS/2 mini-din 6-pin x 1
FW Upgrade DB9(F) x 1
Channel Ports RJ45 x 16
Video Resolutions 1600 x 1200 @ 60Hz up to 100 feet
1280 x 1024 @ 75Hz up to 150 feet
Platform Supports Microsoft Windows NT, Windows Me, Windows 2000,
Windows XP, Windows 2003, Windows Vista,
Novell NetWare, UNIX and Linux

MasterConsole CAT Hot Key Sequences

Default HotKey, Bring up OSD[Scroll Lock] [Scroll Lock]
Help Menu[F1]
Selection Menu[F2]
Edit Name and Scan Menu[F3]
Config Menu[F4]
Admin Menu[F5]
AutoScan[F6]
AutoScan Off[Alt]+[F6]
AutoSkip[F7]
AutoSkip Off[Alt]+[F7]
Update Channel Status[F8]
Channel Sorting[F12]
Quits Current Menu/OSD[ESC]
UPC / EAN Barcode icon
UPC 785813204042
EAN 0785813204042
Question: how many dongles does this switch come with?
Answer: Thank you for your inquiry. To allow for the greatest flexibility in configuration, this switch does not come with any dongles. There is a bundled unit, the MCCAT116-PAC https://www.kvm-switches-online.com/mccat116-pac.html, which comes with 16 MCIM-USB dongles.
