NEOUS™ Management System for HSL's Secure Multi-Domain KVM-over-IP matrix Solution

The Neous management system (MCK11EC-MD) is the central control and security manager of the Neous Multi-Domain IP Matrix, defining and enforcing user and source permissions, mapping connections between endpoints, and securely distributing encryption keys across the network

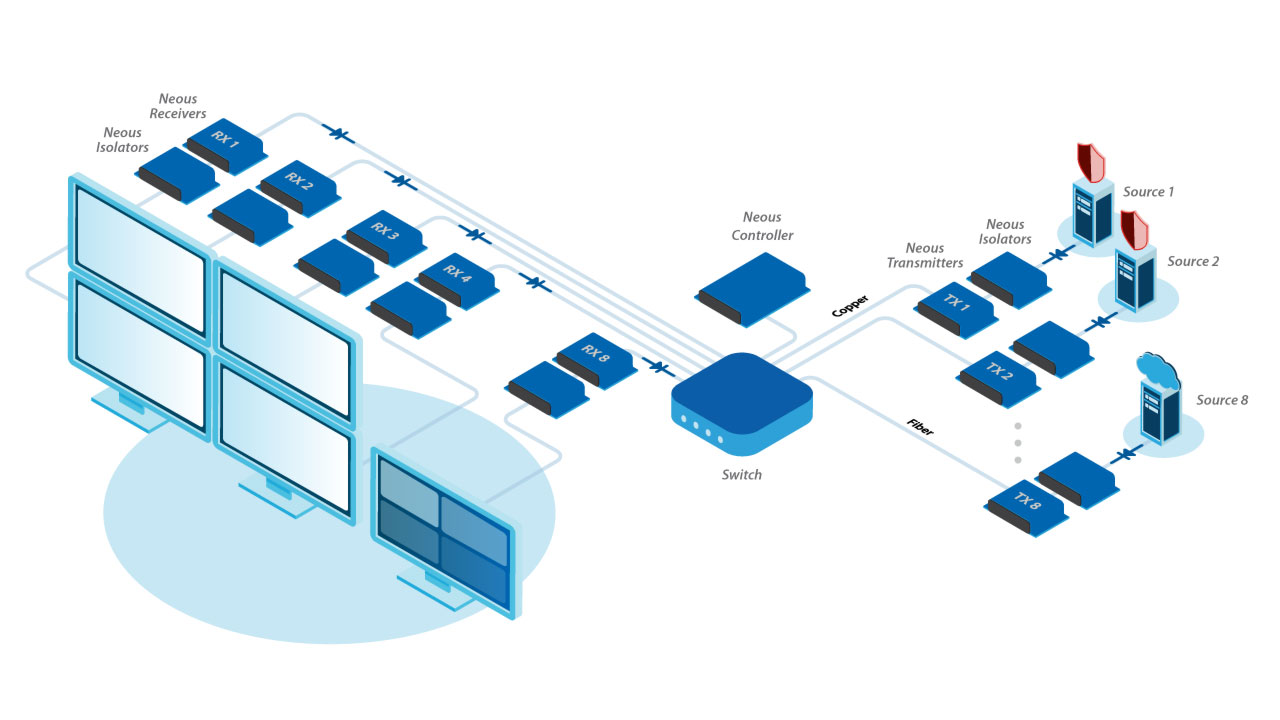

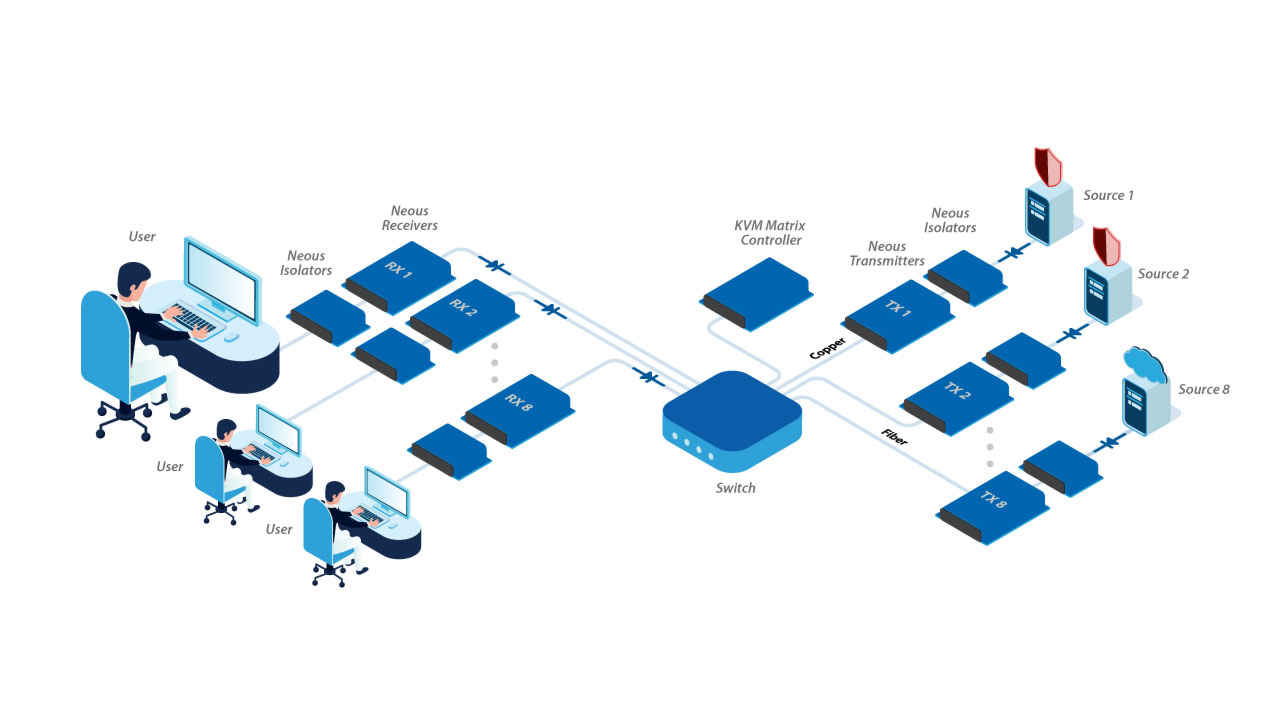

The IP Matrix provides a standards-based, secure Video and KVM-over-IP framework that enables flexible, many-to-many connectivity between source computers and user workstations, with the management system acting as the single point of control to support scalable expansion, centralized policy enforcement, and secure operation with zero latency.

MCK11EC-MD Features and Benefits

• Matrix Management: Oversee the connections between every Transmitter and Receiver Endpoint of the Neous Multi-Domain IP Matrix.
• Scalable Connectivity: Manage up to 300 Transmitter and Receiver Endpoints simultaneously. Cascading multiple management systems together can scale the IP Matrix.
• Source/User Management: Identify, register, and define the permissions of each Transmitter and Receiver, ensuring every source and user is only allowed to connect to other endpoints according to their permission classification.
• Zero-Latency Switching: Connect, disconnect, and switch Transmitters and Receivers instantaneously.
• Power over Ethernet: (Optional) Provide power to connected Transmitters or Receivers over the Ethernet cable.
• All communications between the management system and the endpoints are secured (HTTPS).
• UHD Multi-Viewing Capabilities*: (Coming Soon) Connect multiple Transmitters to a single Receiver to create a UHD 4k multiview configuration.
• UHD Videowall Capabilities*: (Coming soon) Connect a single Transmitter to multiple Receivers to create and configure a UHD 4k videowall.

Added Security with the Neous Management System

• Connection requests flow through the Neous Management System before routing to the Neous appliances.
• Neous Management System / Neous appliance communication is AES encrypted.
• All management interfaces and roles are locked with a secure boot mechanism and a key storage trust zone.
• Management system / user communication is HTTPS and TLS encrypted.
• Secure Deployment - the Neous management system locks appliances with a shared secret preventing unauthorized management devices from communicating with them.
• The Neous controller and appliances are certified to the 802.1x connection protocol.
• It actively scans for new devices & alerts upon device disconnect.
• Built-in NAC prevents unintended connections.
• Neous matrix configuration is locked, preventing unauthorized device or controller connections
• TAA/BAA compliant with proprietary and controlled firmware.

MCK11EC-MD Package Contents

• (1) Neous IP Matrix Controller
• (1) Wall-Mounted 12v DC Power Supply
• (1) 2-year standard warranty

MCK11EC-MD Resources

Secure Neous Brochure (PDF)
Neous Management System Datasheet (PDF)
Secure NEOUS IP Matrix Manual (PDF)

High Sec Labs MCK11EC-MD Specifications

The MCK11EC-MD Neous Management System is also known as the CPN38718 and replaces the MCK11EC-M (Part Number: CPN33989).
