Neous Secure IP KVM Matrix Copper Receiver
SKCX01PHR-M
Save $643.67

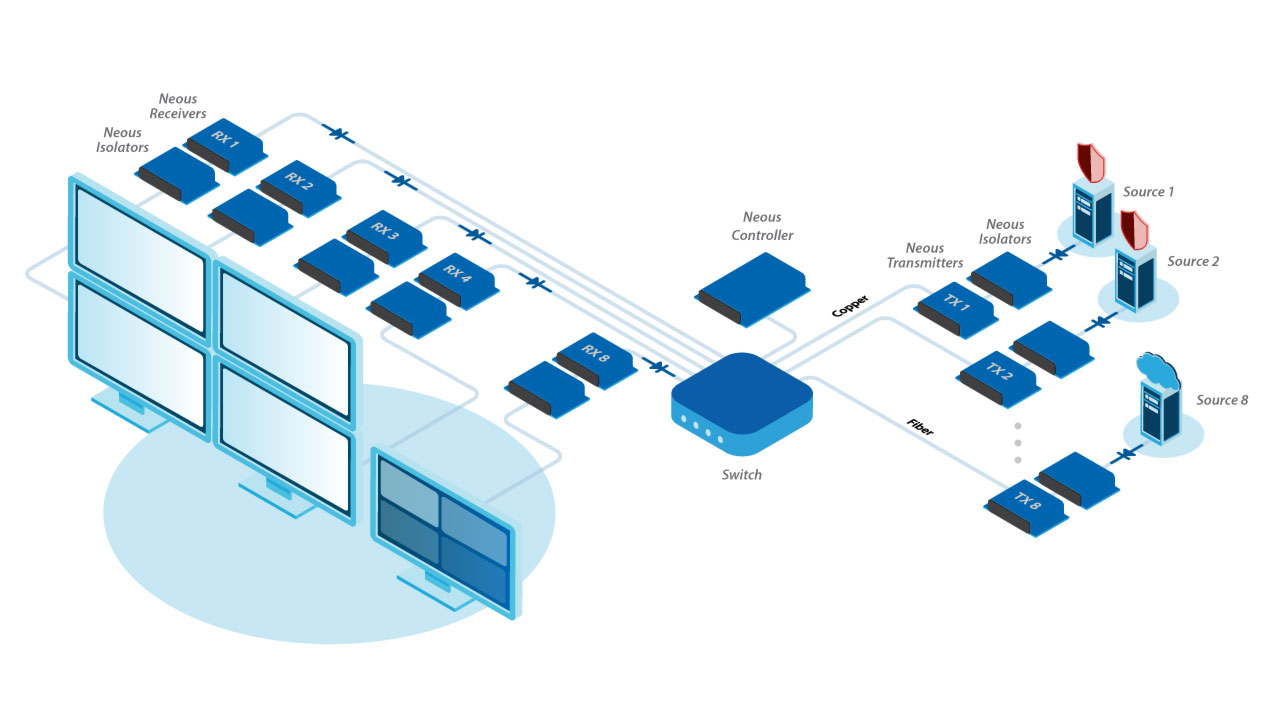

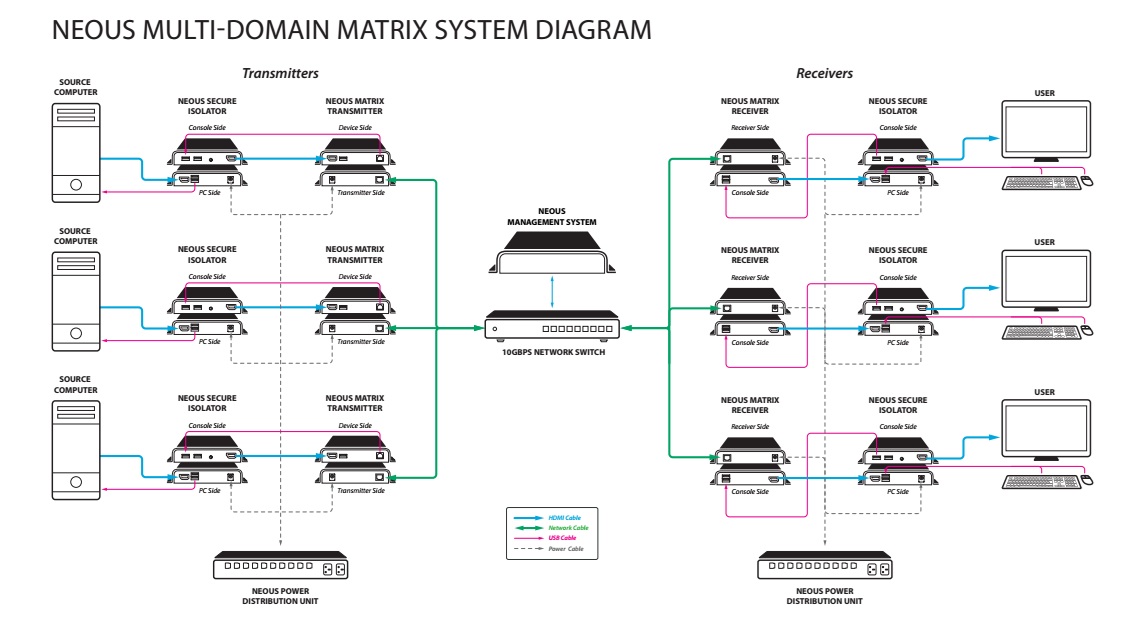

The Neous IP Matrix from High Sec Labs is a highly secure, standards-based KVM-over-IP solution for connecting distributed source computers and user workstations across multiple security domains. Source computers and workstations connect through dedicated Endpoints - either a Transmitter (Tx) or Receiver (Rx) - each paired with a secure NIAP PP4.0- certified Encrypting Isolator that enforces unidirectional video and/or KVM data flow. By combining FIPS 140-3 compliant encryption for data in transit with hardware-level isolation, Neous Endpoints prevent cross-domain data breaches while enabling secure many-to-many connectivity across multiple classification levels. All copper models use standard RJ45 connections and support distances of up to 100 meters. Select models support power delivery via PoE - contact your KVMSO sales rep for PoE model availability.
SKCX10PHT-M Secure IP KVM Matrix Transmitter Features and Benefits
- KVM Over IP Extension: Neous Matrix Endpoints operate on a closed network that isolates computers of different security classifications, enabling secure access from the workstation to any permitted source computer.
- On-Screen Display: Neous Receiver Endpoints feature an on-screen display that enables users to connect to available sources per the permissions managed by the Neous Controller.
- Copper Ethernet Connection: Neous Copper Endpoints have a range of up to 100m, and select models support power delivery via PoE (Power over Ethernet).
- 4K UHD Support: The SKCX01PHR-M Neous receiver can stream video at 4K resolution up to 30Hz, with zero latency.

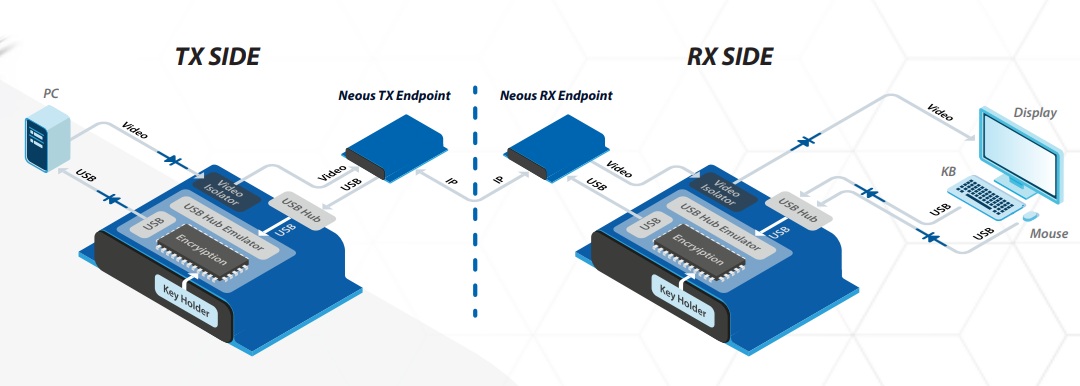

- Secure KVM/Video Isolation: To ensure the flow of information is always secure, every Neous Endpoint includes a NIAP PP4.0-certified isolator. These Isolators use hardware-based protection measures to filter unnecessary information and enforce unidirectional data flow.
Security Features of the Neous IP Matrix System
- Video Security
- Computer video input interfaces are isolated using different electronic components, power, and ground domains.
- The display is isolated by a dedicated, read-only Extended Display Identification Data (EDID) emulation for each computer.
- Access to the monitor's EDID is blocked.
- Access to the Monitor Control Command Set is blocked.
- Phylax Data Encryption - Each Neous Isolator performs FIPS 140-3 compliant encryption on HID traffic, preventing man-in-the-middle hijacking of data and ensuring positive identification between users and sources.
- System Management - When integrated into the Neous Matrix, the Neous Controller locks the product with a shared secret, preventing unauthorized management devices from communicating with them.
- Hardware Anti-Tampering - Special holographic tampering evident labels on the product's packaging provide a clear visual indication if the product has been opened or compromised.
- Firmware Anti-Tampering
- There is no access to the product's firmware or memory through any port.
- Firmware is permanently stored on a non-reprogrammable Read Only Memory (ROM), preventing modification.
- Firmware integrity is verified through a self-test procedure during power-up. Upon detection of a critical failure, the device disables normal operation and provides a clear visual indication of failure.
SKCX01PHR-M Package Contents

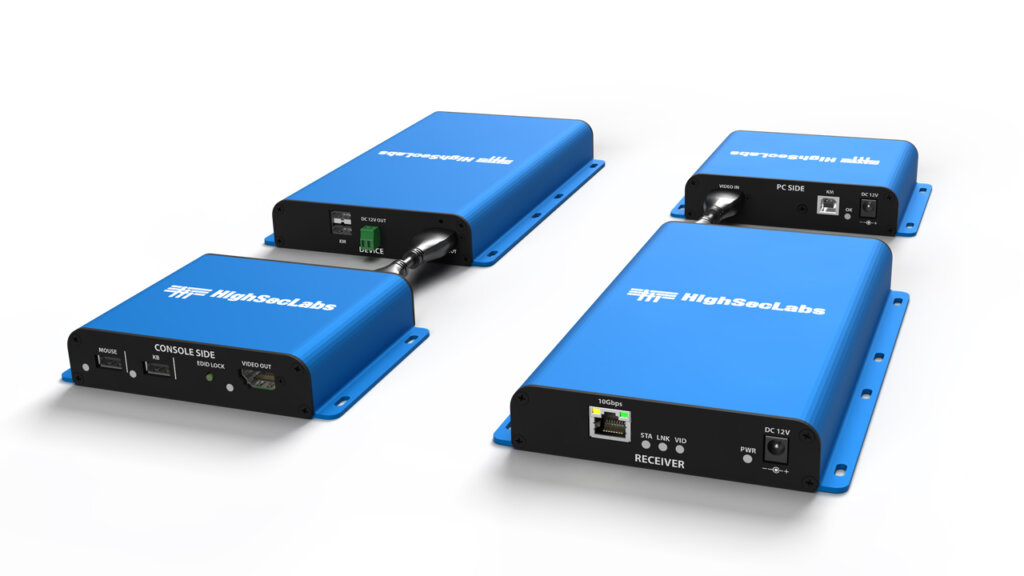

- (1) SKCX01PHR-M Neous Copper KVM Receiver (RX)
- (1) 0.15m HDMI 1.0 Cable
- (1) FI11PHT-ME Secure 1-Port KVM Isolator Receiver
- (2) Wall-Mounted 12v DC Power Supply
- (1) 2-year standard warranty
SKCX01PHR-M Resources
Secure Neous Copper Endpoint Datasheet (PDF)
Secure Neous Brochure (PDF)
Secure Neous User Manual (PDF)
High Sec Labs SKCX01PHR-M Specifications
| Mechanical | |
| Dimensions | 140 (W) x 210 (D) x 28 (H) mm 5.5 (W) x 8.3 (D) x 1.1 (H) inch |
| Weight | 0.6 kg (1.2 lbs) |
| Environmental | |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Operating Humidity | 0% to 80% non-condensing; |
| Decoder Unit (RX) | |

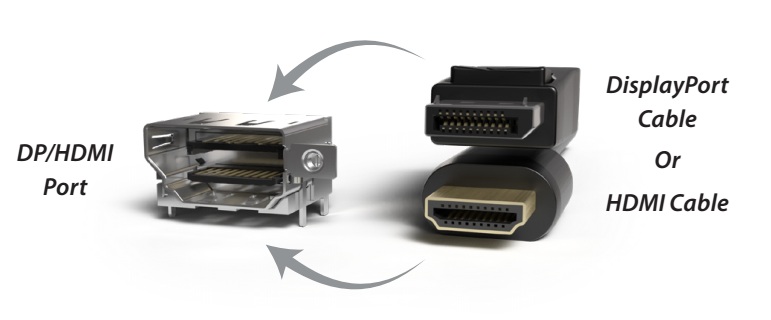

| Video Port | DP / HDMI |
| Max Resolution | UHD 4k up to 3840x2160 30Hz |
| Mouse and Keyboard | 2 x USB A |
| Isolator Model (included) | FI11PHT-ME |
| Video Input Port | 1x DP/HDMI |
| Mouse/Keyboard In | 1x USB B |
| Mouse/Keyboard Out | 2x USB A |
| Encoder Unit (TX) | |
| Transmitter Model (not included) | SKCX10PHT-M |
| System Details | |
| No. of Sources per unit | 1 |
| Extension Type | Copper |
| Link Port | RJ45 |
| Extension Length | 100m |
| IMPORTANT NOTE: The Neous IP Matrix requires connection to a 10Gbps network. | |
| Power | |
| Power Requirements | 12V DC |
| AC Input | 100 to 240V AC |
| Power Supply Type | External; Isolator powered independently or via Tx/Rx. |
| Software | |
| Supported OS | Windows, Linux, Mac |
| Security | |
| Compliance | Isolators Compliant to NIAP Common Criteria PP4.0 PSD Protection Profile |
| Encryption | AES-256 Encryption for HID |
| General Info | |
| Made In | TAA, BAA compliant |
| Product life-cycle | 10 years |
| Warranty | 2 Years |
The SKCX01PHR-M Secure Neous Copper KVM Matrix RX with Adjunct Isolator is also known as the CPN34283.
