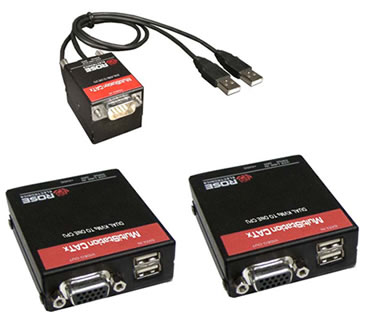

MultiStation CATx Dual Access USB, VGA KVM Extender Transmitter & Receivers

MLK-TMDVURAVU

$799.00$699.13
Save $99.87
FREE Shipping on orders over $100

The Rose MultiStation CATx MLK-TMDVURAVU is a USB Transmitter and Receiver Kit which allows you to extend keyboard, video, and mouse up to 1,000ft over CATx cable to two KVM work stations.  Remote access to your computers is made convenient in a variety of situations. You can locate users away from hazardous industrial environments; locate computers away from areas vulnerable to theft of hardware and data, reduce noise and heat, and increase desk and floor space.

The MultiStation CATx system consists of a transmitter unit that connects to the video, keyboard, and mouse ports on a PC, server, or to a KVM switch. The receiver units connect directly to a keyboard, monitor, and mouse. The transmitter and receiver units are connected together up to 1,000 feet of standard CATx cables. When you initialize the MultiStation CATx, it automatically senses the cable distance between both the receiver and the transmitter units, automatically adjusts the gain, and sets up everything for you. There are keyboard commands that allow you to fine tune the video, but they are rarely needed. The ideal environment for the extender is to connect the transmitter to a KVM Switch. Expanding the switch allows access to multiple computers or servers. Installation is as easy as connecting the KVM stations to receivers, a transmitter unit to the computer, and connecting the receivers and transmitter units together with CATx solid core cable. The MultiStation CATx uses a microprocessor to emulate the keyboard and mouse. This means that the keyboard and mouse on the receiver unit does not have to be connected for the PC to boot. Only the transmitter unit must be connected to the PC.

The MultiStation CATx is also available with PS/2 keyboard and mouse connectors.  Visit the Rose MLK-TMDVPRAVP page for details.

Rose MLK-TMDVURAVU Features:

  • Automatic cable length compensation adjustments
  • Video equalization and gain can be fine tuned with simple keyboard commands
  • Supports:
    • WUXGA, WSXGA, SVGA, VGA, XGA, RGB
    • USB keyboards and mice
  • Extend two KVM station up to 1,000 feet away from a CPU using CATx solid core cable (CAT5, 5e, 6, or 7)
  • Video resolution up to 1920 x 1440 @ 60Hz
  • Video is displayed on both KVM stations
  • USB models keyboard and mouse access the computer simultaneously.
  • Compatible with Rose Electronics KVM switches
  • Operating system independent
  • Supports 35 different country specific operating systems and keyboards
  • Uses a microprocessor to emulate the keyboard and mouse. The keyboard and mouse on the remote unit do not have to be connected for the PC to boot; only the local unit must be connected to the PC
  • Made in USA

Rose MLK-TMDVPRAVP Application Diagram

Rose MutliStation CATx Application Diagram

Rose MLK-TMDVURAVU Specifications:

MechanicalTransmitterReceiver
Width1.3 in. (3.3 cm.)2.68 in. (6.8 cm.)
Height1.3 in. (3.3 cm.) 1.0 in. (2.54 cm.)
Depth1.75 in. (4.4 cm.)2.63 in. (6.67 cm.)
Weight2.4 oz. (68 g.)2.0 oz. (56 g.)
Video
Resolution1920 x 1440
CompatibilitySVGA, VGA, XGA, RGB
Levels0.7V p-p
Sync typeSeparate/composite TTL Level
Support
KeyboardsUSB
VideoVGA, SVGA, XGA, RGB
MouseMicrosoft Compatible, Logitech Compatible, USB
Connectors
VideoHD15M (Transmitter)
HD15F (Receiver)
Keyboard & MouseUSB type A
Interconnect(2) RJ45- CATx UTP/STP, EIA/TIA 568
(CAT5, 5e, 6, or 7)
Power
LocalFrom PC
Remote+5V 1,0 A external (included)
Environmental
Temperature0C-45C
Humidity0%-80% non-condensing
Question: Do you have a 4 station USB model?
Answer: This model allows for 2 users. Please contact us to discuss your project in order to determine the best solution for your particular need. 1-877-586-6654

Question: Hello. Is this product UL-listed (Rose MLK-TMDVURAVU)? Do you ship to Germany?
Answer: Thank you for your inquiry. While many Rose products are UL-Listed, this particular unit makes no mention whether it is or not. To find a local distributor, you can contact Rose directly here: http://www.rose.com/htm/contact.htm?category=contact.
