Rose Electronics One added user PCI card/interface unit for WIN 2000/XP

MSP-PC42-XP

$249.00

Discontinued
Recommended replacement: Aten IP8000
Alternative options: Contact Us

Rose MultiStation PC (MSP-PC42-XP)
The Rose MultiStation PC (MSP-PC42-XP) represents the latest in multi-user PC technology at affordable prices. The Rose MultiStation PC (MSP-PC42-XP) allows up to four users to connect to a single, centralized windows computer. Each user is completely independent with their own desktop, colors, and operating environment.  The Rose MultiStation PC (MSP-PC42-XP) is ideal for home environments when one computer needs to be shared between family members. Schools and small offices can reduce expenses by installing the MultiStation PC. Instead of having a computer for each student, four students can share a single computer.  Industries that need to locate a computer away from a manufacturing floor and in a safe clean area can still access it up to 50 feet away.

Rose MultiStation PC (MSP-PC42-XP) Features & Benefits:

  • Compatible with Windows XP SP1/SP2 and Windows 2000 SP2, P3 and P4 systems
  • P3 and P4 system boards with a minimum of 256M of memory per user, Athlon AMD, Intel Celeron, and Intel 848P Chipset
  • With the MultiStation PC you get all the benefits of a second computer without the expense of purchasing another computer
  • Allows multiple users to use one Windows computer at the same time
  • Each user can work independently on the same or different application. One user can be updating the company's financials and another user developing a software application with no interference
  • Virtually no performance degradation
  • Each user can have their own Windows desktop
  • Share peripheral devices like printers, plotters, and scanners
  • Users can share a common modem and connect to the Internet. They can surf the web or send and receive E-mail over a single phone or DSL line with a single Internet connection
  • Locate the second user up to 50 feet away from the PC using standard CAT5 cable
  • In a network environment, all users can share the PC's network adapter and connection
  • Saves equipment cost, software cost, peripherals, networking, and other hardware costs
  • Easy to install and maintain

Note: This card & remote combo is for 1 local console and 1 remote console only.  An additional card is required for each additional users (3, 4, as in diagram below).

Rose MultiStation PC (MSP-PC42-XP)

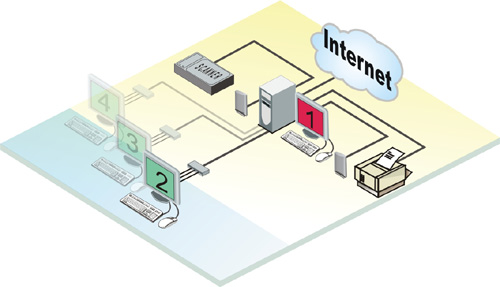

Rose MultiStation PC (MSP-PC42-XP) Function Diagram

Rose MultiStation PC (MSP-PC42-XP) Specifications:

Mechanical
PCI Card Dimensions 6.5D x 4.0H (in)
16.5D x 10.1H (cm)
Module Dimensions 3.3W x 2.25D x 0.75H (in)
8.5W x 5.70D x 1.90H (cm)
PCI Card Weight 3.0 oz / 85 gm
Module Weight 3.0 oz / 85 gm
Connectors
PCI Card

RJ45 - Link

Module

MiniDIN6 - Keyboard
MiniDIN6 - Mouse
HD15F - Video
RJ45 - Link

Power
PCI Card 5.0 VDC, 1.4 A, 7W
Module 5W (Powered from PCI card)
Resolution

1280 x 1024 @ 60Hz (16bit Color)
1024 x 768 @ 75Hz (32bit True Color)
800 x 600 @ 85 Hz (32bit True Color)

Bus Interface PCI bus V2.1, 5V, 32bit, 33MHz
Transfer Rate Up to 132MB/sec
Controls

Dip Switch to accommodate different mother board initialization event counts

Indicators Power on LED
Environmental
Operating Temperature 0°C to 40°C
32°F to 104°F
Humidity 20% - 90% non-condensing
Approvals USA - FCC-Class B
Europe - CE
