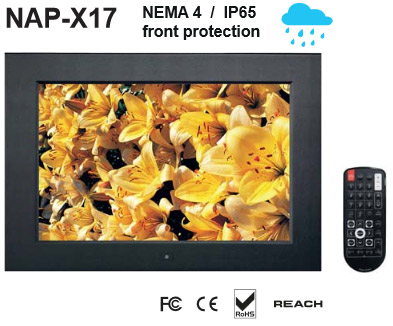

17" High Resolution LED LCD Display with NEMA 4 / IP65 Protection

NAP-X17

Aspect Ratio: 16:10 (1920x1200)
Screen Size: 17 in
Model: NEMA4 / IP65 Protection

Display Features & Benefits

  • 17" widescreen LCD with 1920 x 1200 native WUXGA Ultra high resolution
  • Green LED-backlit panel technology
  • Wall-mount, VESA mount
  • PIP & Picture by Picture viewing efficiency
  • 6mm (.24 in) aluminum front bezel with protective glass & water proof sealed gasket
  • Rugged construction against external impact

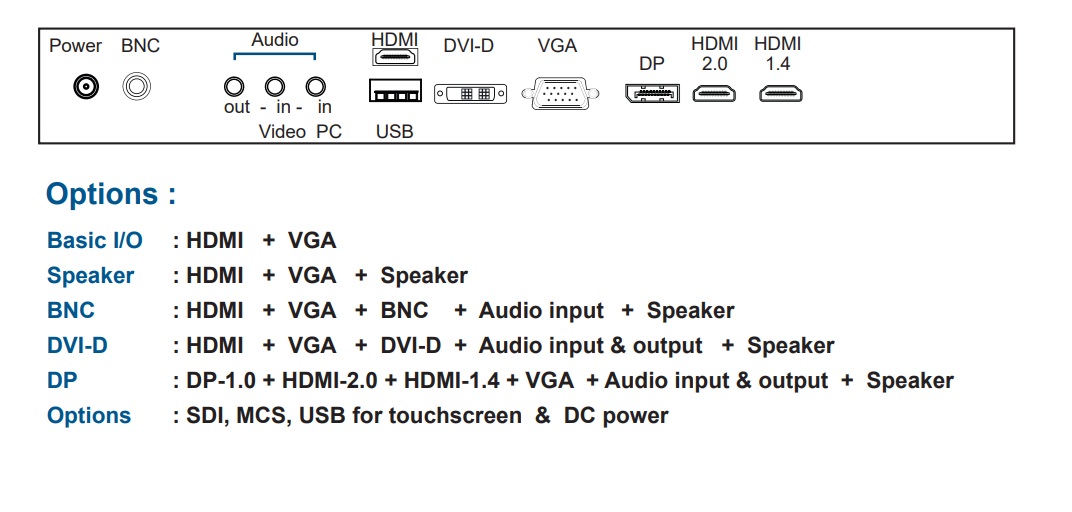

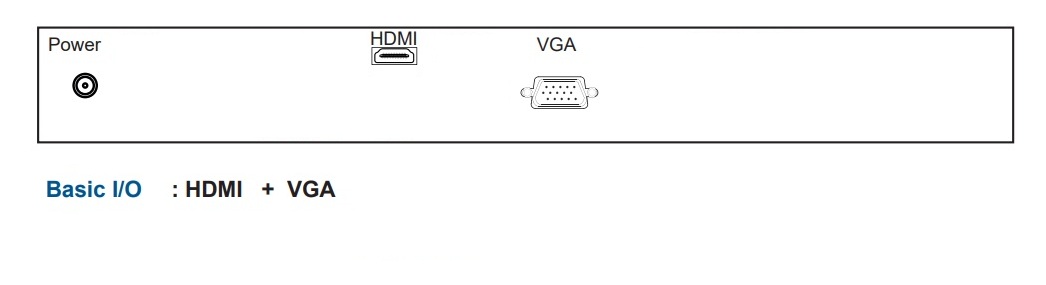

  • Standard with HDMI, DVI-D, VGA, S-Video, BNC, Audio & remote controller

NAP-X17-rear

Mechanical
Height 13 in. (33.1 cm.)
Width 18.4 in. (46.9 cm.)
Depth2.2 in. (5.7 cm.)
Weight10.8 lbs. (4.9 kg.)
Package Dimensions (HxDxW)24.2 x 4.4 x 20.6 inch (615 x 113 x 523 mm)
Package Weight16.9 lbs. (7.7 kg.)
Environmental
Operating Temperature0 to 55°C Degree
Storage Temperature-5 to 60°C Degree
Relative Humidity5~90%, non-condensing
Shock 10G acceleration (11ms duration)
Vibration5~500Hz 1G RMS random vibration
PowerAuto-sensing 100 to 240VAC, 50 / 60Hz
LCD Panel
Display Size16.2"
Resolution1920 x 1200
Brightness (cd/m2)300
Colors16.7 M, 8-bit
Contrast Ratio (typ)800:1
Viewing angle ( L/R/U/D ) 89 / 89 / 89 / 89
Active area (mm)343.8H x 214.9V
Signal InputHDMI, DVI-D, VGA, S-Video, BNC
Built-in Dual Stereo Speakers(2W x 2)
