24" High Resolution CCFL LCD Display with HDMI, DVI-D and NEMA 4 / IP65 Protection

NAP-X24

Aspect Ratio: 16:10 (1920x1200)
Screen Size: 24 in
Model: NEMA4 / IP65 Protection

Display Features & Benefits

  • 24" widescreen LCD with 1920 x 1200 native WUXGA Ultra high resolution
  • Wall-mount, VESA mount
  • PIP & Picture by Picture viewing efficiency
  • 6mm (.24 in) aluminum front bezel with protective glass & water proof sealed gasket
  • Rugged construction against external impact
  • Standard with HDMI, DVI-D, VGA, S-Video, RCA, Audio & remote controller

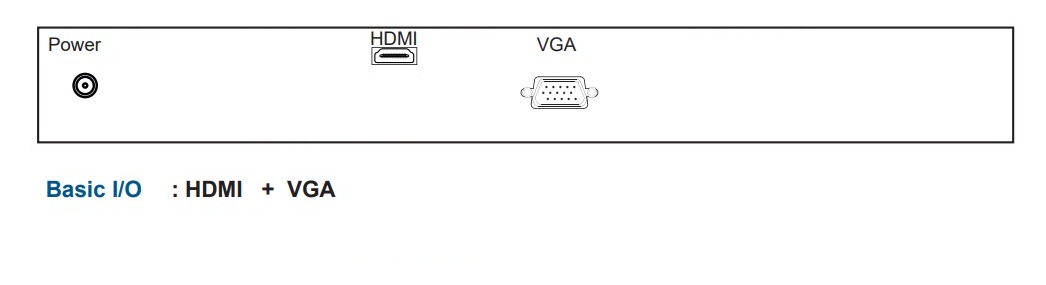

NAP-X24-rear

Mechanical
Height 16.8 in. (42.6 cm.)
Width 24.4 in. (62.0 cm.)
Depth3.4 in. (8.7 cm.)
Weight26.0 lbs. (11.8 kg.)
Package Dimensions (HxDxW)27.6 x 5.4 x 27 inch (701 x 138 x 685 mm)
Package Weight34.1 lbs. (15.5 kg.)
Environmental
Operating Temperature0 to 55°C Degree
Storage Temperature-5 to 60°C Degree
Relative Humidity5~90%, non-condensing
Shock 10G acceleration (11ms duration)
Vibration5~500Hz 1G RMS random vibration
PowerAuto-sensing 100 to 240VAC, 50 / 60Hz
LCD Panel
Display Size24.1" Widescreen TFT
Resolution1920 x 1200
Brightness (cd/m2)400
Colors1.07 Billion, 10-bit
Contrast Ratio (typ)1000:1
Viewing angle (H/V)178° x 178°
Active area (mm)518 x 324

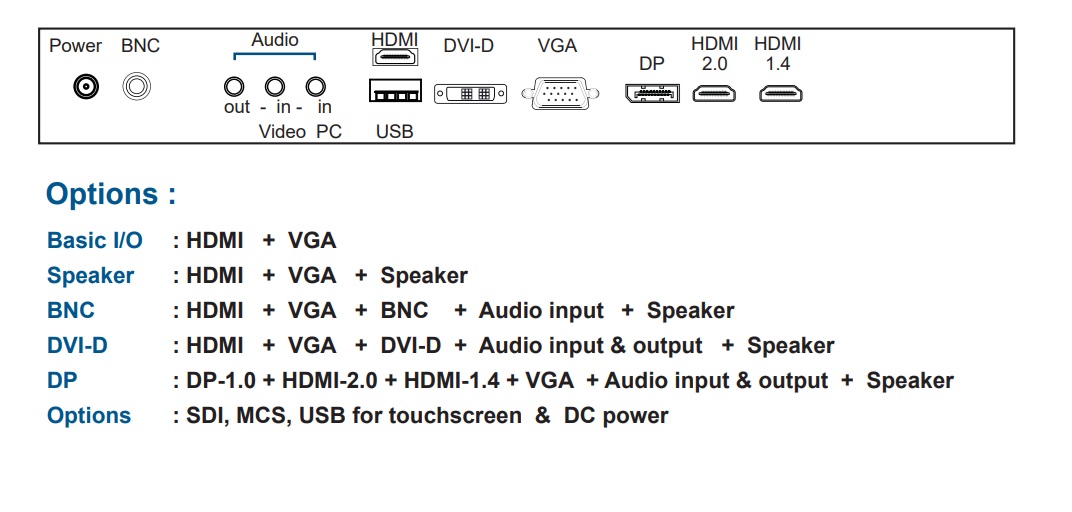

Signal InputHDMI, DVI-D, VGA, S-Video, RCA
Built-in Dual Stereo Speakers(10W x 2)
