NTI UNIMUX Matrix KVM Switches

The UNIMUX™ USB KVM Matrix switch allows up to eight users to individually command or simultaneously share up to 32 USB computers. Access USB-enabled PC, SUN, and MAC computers using USB keyboards and mice, and VGA multiscan monitors.

USB host computers and USB devices can be hot-plugged or removed at any time. Allows any USB device (keyboard and/or mouse) to control any attached USB host computer. International keyboard layouts are supported in auto-detection mode, or can be manually selected via the On Screen Display (OSD) menu.

  • Equipped with OSD, Liquid Crystal Display, and RS232.
  • Rackmount is standard on all UNIMUX-nXm-U models. The smaller models are also available in a desktop case.
  • Dedicated microprocessors prevent computers from locking up, ensuring reliable control.
  • Fully compliant with USB standards (1.0, 1.1).
  • The advanced OSD user interface with password security makes the UNIMUX USB KVM Matrix Switch simple and reliable to use in Enterprise data centers.
  • Computers can be shared or used exclusively.
  • Crestron® compatible.
  • Optional stereo audio support using an Audio Matrix Add-On Switch (not included).
    Supported USB KVM Matrix Switches (UNIMUX-nXm-UA) feature a male DB9 connector for connecting the Audio Matrix Add-On Switch.

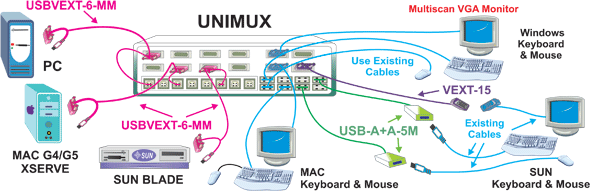

how to control up to control up to 32 PC and SUN computers with one keyboard, mouse & VGA monitor

Specifications

Hosts

  • 15-pin HD and female 8-pin miniDIN connectors.
  • Supports legacy PS/2 and SUN computers.
  • Multiplatform support: Windows 2000/XP/Vista/Server 2000/2003/2008, Solaris, Solaris x86, Linux, and FreeBSD.

Monitor

  • Supports 1900x1200 resolution.
  • Female 15-pin HD connectors.
  • A multiscan VGA monitor is required to display the different video outputs from different platforms.
  • Bandwidth is 150 MHz.

Devices

  • Female 8-pin miniDIN connectors.
  • User devices can be PS/2 or SUN.
  • Keyboard and mouse are hot-pluggable.
  • User keyboard and mouse must be of the same platform.

Power

  • 110 or 220 VAC at 50 or 60 Hz via IEC connector. (Country-specific power supply cable included.)
  • The 2-port models use AC adapters as their power source. (Country-specific AC adapter included.)

Regulatory Approvals

  • CE, RoHS (CE available on all models except ST-2U.)

Warranty

  • Two years
