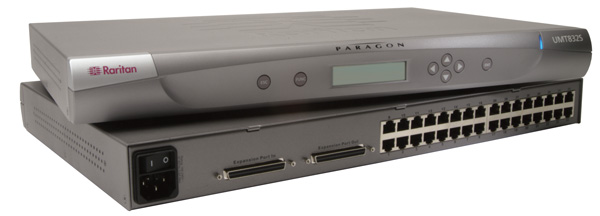

Raritan Paragon II 32-Port Stacking Cat5 KVM Switch
For upgrade or replacement options: Contact Us
The Raritan Paragon II UMT832S stacking unit has 32 expansion ports for stacking with the UMT832M unit. By adding the cost-effective, space-saving UM832S, you can easily add up to 128 non-blocked ports per switch with 90% less cable than traditional cascading.
With the UM832S, you eliminate the burden of multiple cables between cascading levels, reduce Total Cost of Ownership (TCO) by more than 30% and save one-third on rack space required and HVAC resources.
Features and Benefits
- Powerful BIOS-level access and full keyboard and mouse control of Windows, SUN and USB servers
- High performance analog switching provides extremely high video quality
- Stacking allows expansion of each switch to attach up to 128 devices per switch with a single cable.
- Simplifies cabling between tiers by replacing pass through cables with a single expansion cable saving up to 32 cables per switch.
- Stacking allows a reduction in the number of units deployed by 33% saving initial costs, rack space and HVAC costs.
- Highly scaleable architecture allows for connection of up to 10,000 attached devices in a single logical deployment.
- Leverages Raritans Cat5 simplicity technology allowing any standard UTP cables to be used
- Optional IP Access extends the typical distance between Paragon components allowing users access from anywhere
- Provides a single, consolidated view and control of Raritan Remote Power Control Units connected to Paragon II
- GUI software simplifies management and monitoring of data center by consolidating administration of attached equipment.
- Supports firmware upgrading and completions of installs over the network saving time and money.
- Allows connection of multiple disparate servers such as Windows, SUN, Compaq, HP and UNIX-based servers. Also allows serial devices to be connected via Raritans AUATC adaptors.
- Backward compatible with existing Paragon equipment
- Very small form-factor saves expensive rack space and minimizes electrical consumption by lowering HVAC provisioning needs.
- Integrated power supply ensures proper power provision and system reliability.
Paragon 2 Hot Key Sequences
|Default HotKey, Bring up OSD||[Scroll Lock] [Scroll Lock]|
|Edit Name and Scan Menu||[F3]|
|Update Channel Status||[F8]|
|Quits Current Menu/OSD||[ESC]|
