1U Rackmount Keyboard Drawer with
integrated 4-Port PS/2 KVM Switch



Recommended replacement: Cyberview RK-S801
Alternative options: Contact Us

RK-401 Series is a rackmount keyboard in a drawer with features such as adjustable brackets, selective touchpad or trackball to provide effective assistant for an administrator to control multiple PCs.  The RK-401 keyboard drawer also comes with a 4 port KVM switch as well as (4) 6ft. cables.

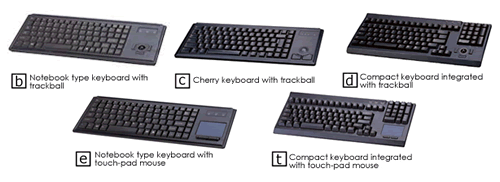

The following keyboard options are available for the rackmount keyboard drawer:

Rackmount Keyboard Options

Cyberview RK-401 Features

  • Rugged metal construction
  • Rear mounting bracket included
  • Fully compatible with IBM/AT keyboard
  • Lockable drawer to secure the keyboard and mouse
  • Supplied with 12V 5A remote power adapter (single power source)
  • Lock out rails to prevent movement of the keyboard
  • Lightweight aluminum construction - with a black anodize finish
  • Cascade for use up to 128 servers
  • Name servers up to 16 characters long
  • Scan mode - Monitor servers at intervals 5 to 99 seconds
  • High Video Quality - Up To 1920X1440, Bandwidth: 200MHz
  • Built-in microprocessor emulation for each port boots up process
  • Support eight characters password protection and search PC server name
  • VGA, keyboard & mouse all-in-one by 15pin HDDB connector at switch side
  • Multi-platform - mix PCs, SUN Microsystems, IBM compatibles, HPs, Compaq and Dell
  • Hot Pluggable - Add PCs or Remove Connected PCs for Maintenance without powering down the PS/2 KVM switch or PCs
  • No Software Required - easy PC selection via On Screen Display Manual, Push Buttons, Hot Keys.

Cyberview RK-401 Keyboard Benefits

  • Integrated, high quality PS/2-compatible 16mm Logitech trackball
  • Cursor keys retained
  • Keycaps arranged in 18mm grid
  • LEDs indicate status of operating functions
  • 83 keys (US layout), 84 keys (European layout)
  • Reliability: MTBF: 134.000 hours
  • Operating life of individual keys: 20 million operation
Question: Does this unit include the 4 cables? What connectors are on the other end of the 15pin HDDB? Any pictures of the cable and connector side of the drawer available?
Answer: Thank you for your inquiry. The Cyberview RK-401e does come with 4 x 6ft cables however this unit has been discontinued by the manufacturer. If you would like a recommendation based on your application, please feel free to contact your KVM Switches Online sales representative.
