1U 15" Rack Mount Monitor Keyboard Drawer with Samsung TFT LCD



Recommended replacement: Raloy RF117HD
Alternative options: Contact Us

15" 1U Rackmount TFT Samsung LCD Monitor Keyboard Drawer

RKP Series is a combination of keyboard, mouse and monitor into a drawer, with features such as flip-up design, adjustable brackets, built-in LCD OSD to provide effective assistance for an administrator to control multiple PCs.

This model comes with the following keyboard options:

RKP115 Features

  • Unique mechanical design to maximize rack mountable space.
  • Adjustable mounting brackets from 390mm to 845mm (15.3in to 33.2in). (front to rear 19" mounts)
  • Black anodized aluminium front panel

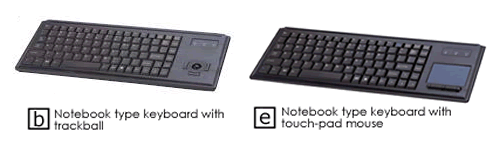

  • Notebook keyboard with touchpad or trackball supporting multiple languages.
  • Built-in on-screen display controlled by integral membrane switches
  • Standard D-sub 15-pin VGA input connector
  • Lock out rails to prevent movement of the keyboard
  • Supplied with 12V 5A remote power adapter (single power source)
  • Rear rackmount bracket included.

RKP115 Specifications

  Panel Samsung 15" LCD Panel
  Screen Type TFT
  Display Area 304.1(H) x 228.1(V) mm
  Contrast Ratio 300 : 1
  Viewing Angle 140 ° (H) x 120 ° (V) (Typ.)
  Resolution 1024 x 768
  Pixel pitch 0.297(H) x 0.297(W) mm
  Response Time Tr=5ms, Tf=20ms (Typ.)
  Brightness 450 cd/m2
  Panel Color 16.2M
  Back Light 4 CCFTs
(Cold Cathode Fluorescent tube)
  Horizontal Synchronization 48 - 60 KHz (Typ.)
  Vertical Synchronization 60-75 Hz (Typ.)
  Input Signal Analog RGB 0.7Vp-p
  Power Management VESA DPMS
  OSD Control

Brightness, Contrast, Colour, Clock,
H.Position, V.Position, Phase, Scaling,
Auto config, Input select, Multi window,
Clear EEPROM, OSD adjust, Save
  External Connection
  Power Input 12V/5A DC adapter (12V/3.33A DC adapter for USB Model)
  Video Input 15-pin D-Sub connector
  Product dimension 43.9(W) x 4.45(H) x 60(D)cm
  Packing dimension 79(L) x 57(W) x 15.5(H)cm
  Net / gross weight
22.05 lb / 39.68 lb
10kg / 18kg
Question: Can you please advise if you have a form fit function replacement for the RKP-115 Rack Mount Monitor Keyboard Drawer. Thanks in advance.
Answer: Thank you for your inquiry,

The 15" RKP has been discontinued and directly replaced by the RKP117. Both consoles are 1RMU, 19"EIA, and include the same console connections. The RKP117 does offer some extra features such as a USB port in the front for peripherals, higher resolution, a newer screen, and the unit is less deep (18.1"D vs. 23.62"). Please note, the RKP117 is 17" - we no longer offer 15" rackmount drawers.

If you would like a recommendation based on your setup, please feel free to contact your KVM Switches Online sales representative directly at 1-877-586-6654, at sales@kvm-switches-online.com, or via our online Chat functionality.

Question: Hey im after a CD-6 3-in-1 KVM cable for use with my rkp115-801c as well as a PS-2 to USB converter as i do not have ps-2 sockets on my computer. Plus shipping to australia 4007. Cheers, David
Answer: Thank you for your inquiry David,

For shipping information for international orders, please see our international order policy.For a quote with shipping to Australiacontact your KVM Switches Online sales representative directly.
