8-Port HDMI HDBase-T AV Splitter/Extender via CAT5e/6 - 328 ft.

VOPEX-C6HD-8HDBT-328

$4,500.00

Discontinued
For upgrade or replacement options: Contact Us

The VOPEX-C6HD-8HDBT-328 HDMI HDBase-T Splitter/Extender simultaneously distributes uncompressed HD 1080p, multi-channel audio, Ethernet, and IR from one video source to up to eight displays and speakers, each located up to 328 feet away via CAT5e/6 cable using HDBase-T technology.

The VOPEX system consists of two components: the HDMI HDBase-T broadcast unit (local), which connects to the HDMI source, and a remote unit for each remote HDMI display and speakers.

  • Transmits an uncompressed high speed HDMI signal over one CAT5e/6 cable to multiple display locations.
  • Features two Ethernet ports on the transmitter and receiver for connecting standard network devices such as 100Base-T routers and hubs.
  • Supports HDTV resolutions to 1080p and computer resolutions to 1920x1080 and 1920x1200.
  • HDMI features supported
    • 36-bit Deep Color
    • x.v.Color
    • Dolby TrueHD, DTS-HD Master Audio, Dolby Digital, DTS 7.1 and LPCM.
    • 3D - Bandwidth up to 225 MHz (6.75 Gbps)
    • Support for CEC (consumer electronic control) compatible devices.
    • Lip Sync
  • HDCP compliant.
  • Supports the DDC2B protocol.
  • Full Infrared Remote (IR) control of HDMI source or display. IR transport channel can be forward or backward per your installation.  (IR transmitters/receivers not included)
  • Cascade multiple units for more numerous display configurations.
  • Ideal for digital signage, tradeshows, or classrooms where high quality video on multiple monitors is needed.

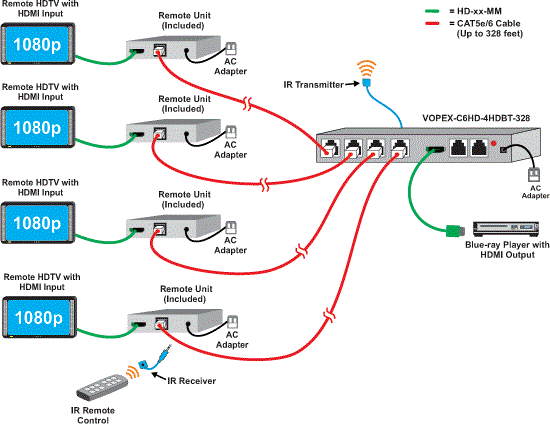

VOPEX-C6HD-4HDBT-328 Application Diagram
Configuration and cable illustration of the
HDMI HDBase-T Splitter/Extender via CAT5e/6.

(Diagram shows 4-port VOPEX-C6HD-4HDBT-328)

Local Unit

  • Compatible with a computer or HDTV video source with HDMI output.
  • One female HDMI connector.
  • Two female 3.5mm ports for IR transmitter/receiver (not included).
       IR transport channel can be forward or backward per your installation
  • Two female RJ45 100BaseT Ethernet ports for connecting standard network devices such as 100Base-T routers and hubs
  • Female RJ45 ports for sending/receiving high definition video, audio, IR, DDC and Ethernet signals.

Remote Units (ships with 8ea)

  • Supports HDTV resolutions to 1080p and computer resolutions to 1920x1200.
  • One female HDMI connector
  • Two female 3.5mm ports for IR transmitter/receiver (not included).
  • Two female RJ45 100BaseT Ethernet ports for connecting standard network devices such as 100Base-T routers and hubs
  • One female RJ45 port for sending/receiving high definition video, audio, IR, DDC and Ethernet signals.

Cables

  • Use HD-xx-MM cable to connect an HDMI source or display.
       Maximum HDMI cable length: 65 feet (19.8 meters)
  • For best performance, use CAT6 solid straight through cable for TIA/EIA-568B wiring terminated with standard RJ45 connectors
  • Cables not included

Package Includes

  • One HDMI HDBase-T Splitter/Extender
  • Eight HDMI HDBase-T remote units
  • One 12V power supply
  • Eight 5V power supplies for remote units
  • User manual

VOPEX-C6HD-8HDBT-328 local unit Specifications:

Mechanical
Height 1.75 in. (44.5 mm.)
Width 17.32  in. (440 mm.)
Depth7.87 in. (200 mm.)
Environmental
Operating Temperature5 to 131°F (-15 to 55°C)
Relative Humidity5 to 90% non-condensing RH
Power
Operating Voltage110 or 220 VAC at 50 or 60 Hz via AC adapter.
Standards
Approved Agency CE, FCC, RoHS
Warranty2 Years
