4-Port Single-head Secure Pro DP to HDMI KVM Switch with KB/Mouse USB emulation and CAC port

SDHN-4S-P

$972.00$877.51
Save $94.49
Type: KVM Switch
Ports: 4-Ports
Video: DP to HDMI
Multi-Monitor: Single-Monitor
CAC: Yes
FREE Shipping on orders over $100

SDHN-4S-P: Ultra-Secure KVM SwitchingMade In America

The SDHN-4S-P is a 4-port, single-head DisplayPort to HDMI Secure KVM switch with a dedicated CAC port and support for 4K (38402160 @ 30Hz) resolution video.The SDHN-4S-P allows users to control KVM (Keyboard, Video and Mouse) operation on up to four computers with HDMI monitors. It features mechanical, electrical and optical signal isolation to prevent hacking and data leakage in environments where security is paramount.

With the SDHN-4S-P, all data relays are controlled by inverted signals, shielding connections from outside intrusion by forcing them each to work one at a time. Each port uses its own isolated data channel and each unit features non-reprogrammable ROM to better protect the switch's functions. Better yet, the SDHN-4S-P offers the highest security when accessing classified and public networks over the internet through these isolated connections. By isolating connections between networks, the SDHN-4S-P ensures no data is leaked between secure ports and the outside world.

The SDHN-4S-P has clearly marked front-panel buttons for controlling the device, so securely switching between sources is always simple. For high-grade secure switching made easy, look no further than the SDHN-4S-P.

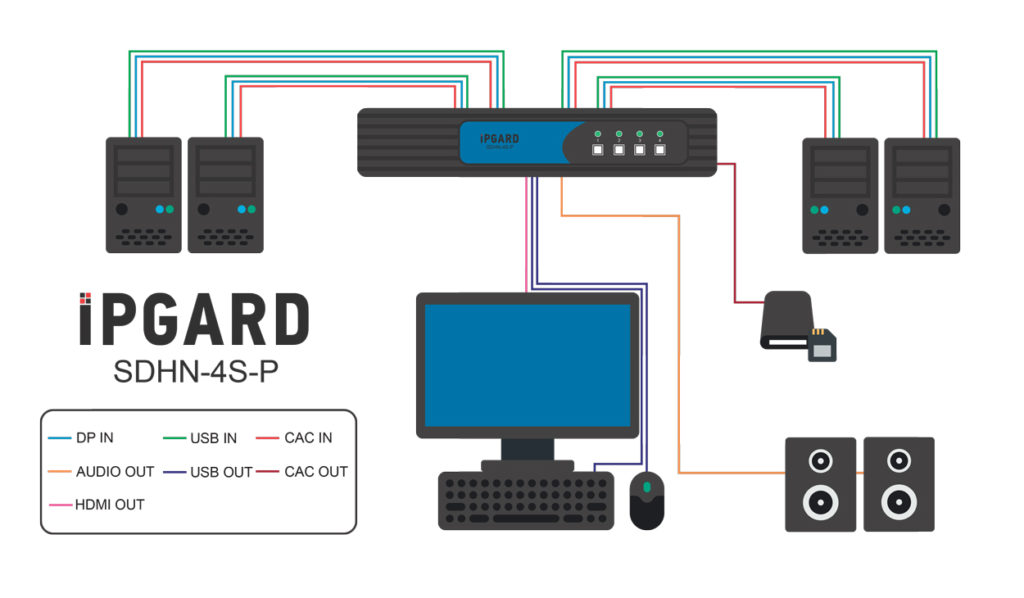

SDHN-4S-P Application Diagram
SDHN-4S-P Application Diagram

Key Features

Security Features

  • Non-reprogrammable ROM
  • Active Anti-tamper switches
  • Long-life internal Anti-tampering battery
  • External tamper-evident seals
  • Keyboard, Mouse and Video emulation
  • Absolute isolation - No data leakage between ports
  • Certified by NIAP, the latest Common
  • Criteria (Protection Profile for Peripheral Sharing Switch Version 3.0)

> View the NIAP certification and validation documents here.

SDHN-4S-P Package Includes

  • 1 x 4-Port SH D2H CAC Secure KVM w/ Audio, PP 3.0
  • 1 x PS12V2A power supply
  • Cables not included:
    • Per target system: 1 x DP to HDMI cable, 1 x USB Type-A to Type-B cable, 1 x 3.5mm Stereo audio cable

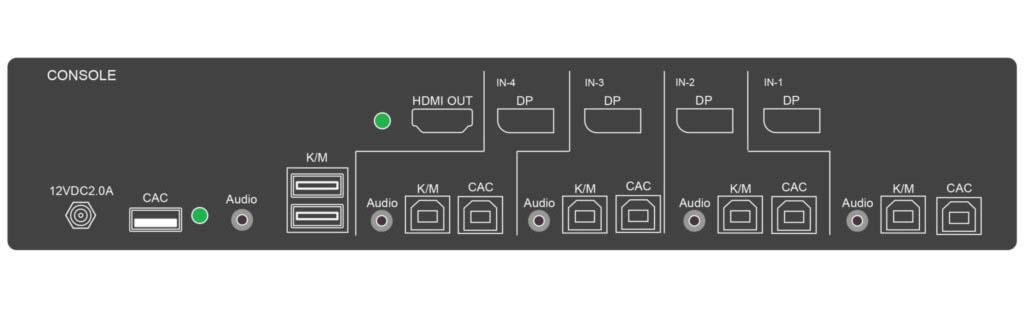

Rear view of the SDHN-4S-P
SDHN-4S-P Back

SmartAVI SDHN-4S-P Specifications

Learn More: SmartAVI SDHN-4S-P Brochure (PDF)
SmartAVI SDHN-4S-P Manual (PDF)

VIDEO
FormatDP, HDMI
Input Interface(4) DP 20-pin female
Output Interface(1) HDMI 19-pin female
ResolutionUp to 4K (3840 x 2160 @ 30Hz)
DDC5 volts p-p (TTL)
Input EqualizationAutomatic
Input Cable LengthUp to 20 ft.
Output Cable LengthUp to 20 ft.
USB
Input Interface(8) USB Type-B
Output(2) USB 1.1 Type A for KM Devices
EmulationKeyboard & Mouse
CACConfigurable CAC port
AUDIO
Signal TypeUSB 2.0, 1.1, and 1.0 w/ internal hub
Audio Input(4) 3.5mm stereo audio
Audio Output(1) 3.5mm stereo audio
CONTROL
Front PanelFront panel SELECT buttons
OTHER
PowerExternal 100-240 VAC/12VDC2A
Dimensions12.57" W x 1.76" H x 6.69" D
Weight4.2 lbs
ApprovalsNIAPP PP 3.0, UL, CE, ROHS Compliant
Operating Temp.+32 to +104°F (0 to +40°C)
Storage Temp.-4 to 140°F (-20 to +60°C)
HumidityUp to 80% (No Condensation)
UPC / EAN Barcode icon
UPC 68691122446
EAN 068691122446
