2-Port Dual-head Secure DVI-I KVM Switch with KB/Mouse USB emulation


Save $72.25
Type: KVM Switch
Ports: 2-Ports
Video: Dual-Link DVI-I
Multi-Monitor: Dual-Monitor
FREE Shipping on orders over $100

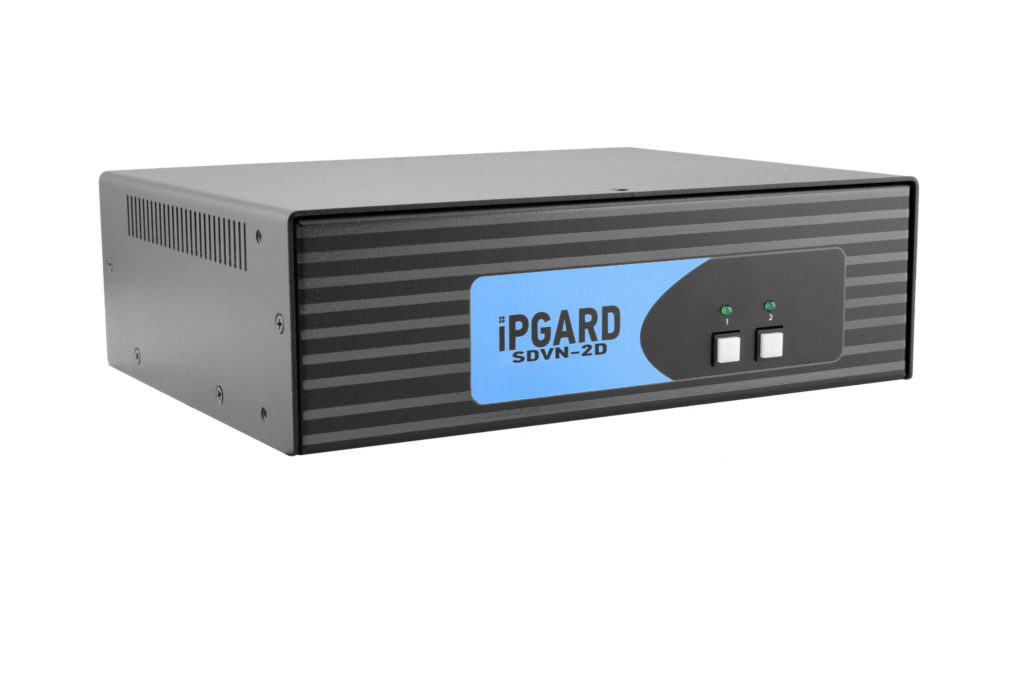

SDVN-2D: Ultra-Secure KVM SwitchingMade In America

The SDVN-2D is a 2-port, dual-head dual-link DVI-I Secure KVM switch with support for 4K (38402160 @ 30Hz) resolution video via an adaptor.The SDVN-2D allows users to control KVM (Keyboard, Video and Mouse) operation on up to four computers with DVI, HDMI or VGA displays. It features mechanical, electrical and optical signal isolation to prevent hacking and data leakage in environments where security is paramount.

With the SDVN-2D, all data relays are controlled by inverted signals, shielding connections from outside intrusion by forcing them each to work one at a time. Each port uses its own isolated data channel and each unit features non-reprogrammable ROM to better protect the switch's functions. Better yet, the SDVN-2D offers the highest security when accessing classified and public networks over the internet through these isolated connections. By isolating connections between networks, the SDVN-2D ensures no data is leaked between secure ports and the outside world.

The SDVN-2D has clearly marked front-panel buttons for controlling the device, so securely switching between sources is always simple. For high-grade secure switching made easy, look no further than the SDVN-2D.

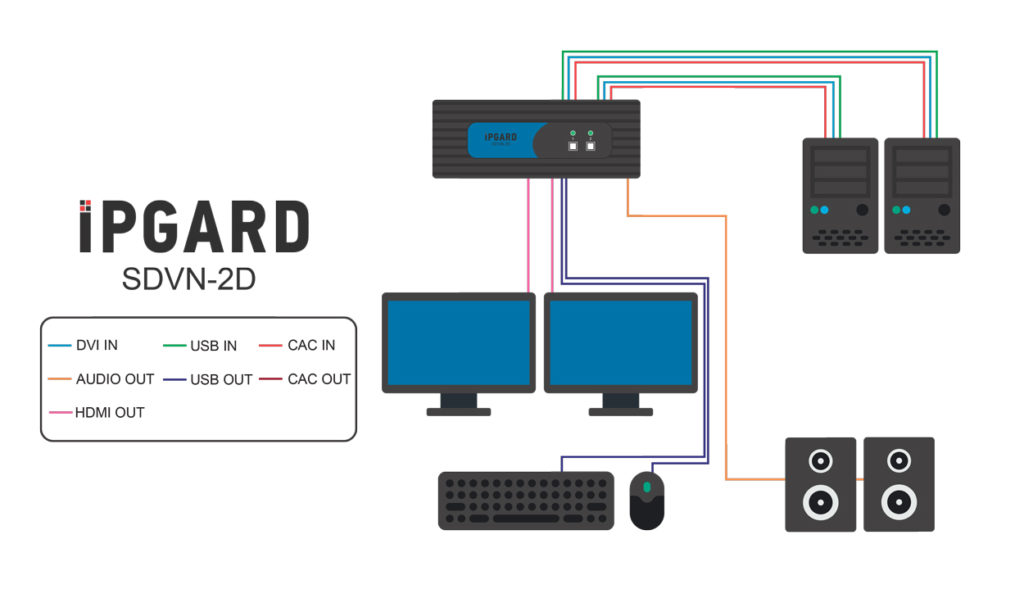

SDVN-2D Application Diagram
SDVN-2D Application Diagram

Key Features

  • Supports Windows, Mac and Linux OS
  • Dual-head DVI-I video interface.
  • Native DVI-I resolutions support up to 25601600 @ 60Hz
  • 4K Ultra-HD resolution - supports up to 38402160 @ 30Hz via adaptor
  • Supports Balanced speakers output and switching
  • Front panel tactile buttons with LED indicator
  • Secure Keyboard & Mouse Emulation
  • Secure EDID Learn And Video Emulation
  • External power supply - Level VI efficiency

Security Features

  • Non-reprogrammable ROM
  • Active Anti-tamper switches
  • Long-life internal Anti-tampering battery
  • External tamper-evident seals
  • Keyboard, Mouse and Video emulation
  • Absolute isolation - No data leakage between ports
  • Certified by NIAP, the latest Common
  • Criteria (Protection Profile for Peripheral Sharing Switch Version 3.0)

> View the NIAP certification and validation documents here.

SDVN-2D Package Includes

  • 1 x 2-Port DH DVI Secure KVM w/ Audio, PP 3.0
  • 1 x PS12V2A power supply
  • Cables not included:
    • Per target system: 1 x DVI-I cable, 1 x USB Type-A to Type-B cable, 1 x 3.5mm Stereo audio cable

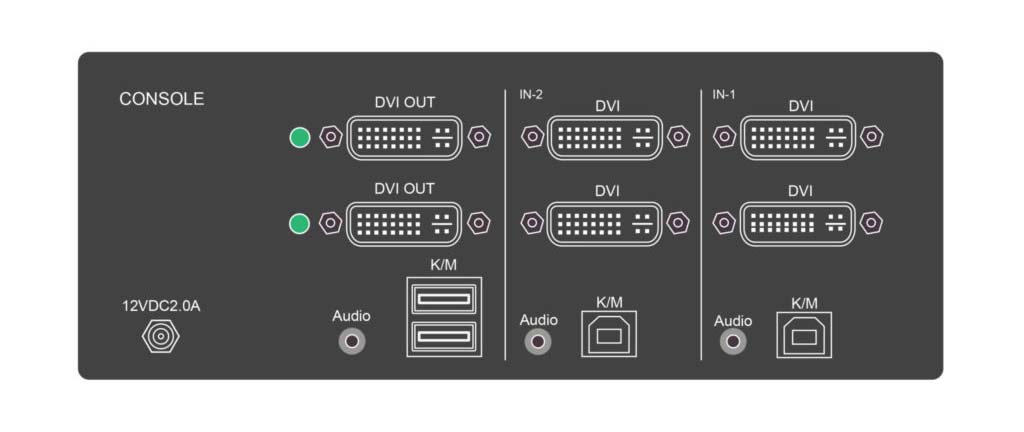

Rear view of the SDVN-2D
SDVN-2D Back

SmartAVI SDVN-2D Specifications

Learn More: SmartAVI SDVN-2D Brochure (PDF)
SmartAVI SDVN-2D Manual (PDF)

FormatDVI-I Dual Link, DVI 1.0, DVI-D, XVGA
Max. Pixel Clock248 MHz
Input Interface(4) DVI-I 29-pin
Output Interface(2) DVI-I 29-pin
ResolutionUp to 4K (3840 x 2160 @ 30Hz) with DVI/HDMI adaptor
DDC5 volts p-p (TTL)
Input EqualizationAutomatic
Input Cable LengthUp to 20 ft.
Output Cable LengthUp to 20 ft.
Data Rate1.65 Gbps
Input Interface(2) USB Type-B
Output(2) USB 1.1 Type A for KM Devices
EmulationKeyboard & Mouse
Audio Input(2) 3.5mm stereo audio
Audio Output(1) 3.5mm stereo audio
Front PanelFront panel SELECT buttons
PowerExternal 100-240 VAC/12VDC2A @ 24W
Dimensions8.8" W x 2.63" H x 6.69" D
Weight3.85 lbs
ApprovalsNIAPP PP 3.0, UL, CE, ROHS Compliant
Operating Temp.+32 to +104°F (0 to +40°C)
Storage Temp.-4 to 140°F (-20 to +60°C)
HumidityUp to 80% (No Condensation)
UPC / EAN Barcode icon
UPC 68691122316
EAN 068691122316
