NTI VEEMUX 16x16 Audio/Video Matrix Switch via CAT5

SM-16X16-C5AV-LCD

$4,780.00$4,395.40
Save $384.60
FREE Shipping on orders over $100

The NTI VEEMUX SM-16X16-C5AV-LCD Audio/Video Matrix Switch via CAT5 works with NTI's 600 foot CAT5 transmitters and receivers to create a high performance audio/video signal routing system with a maximum extension of 600 feet between the local and remote units. Crisp and clear 1024x768 resolution is supported at 600 feet; higher resolutions, up to 1920x1440, are supported at shorter distances.  A single computer audio/video output of this CAT5 matrix KVM switch can be routed to one or more destinations. Each image will be as crisp and clear as if directly connect to the original source. Buffered video outputs and digital transmission of audio signals ensures integrity is maintained throughout the system.

NTI SM-16X16-C5AV-LCD Features:

  • Female RJ45 input/output connectors.
  • Analog bandwidth is 175 MHz.
  • 10/100BaseT ethernet interface.
  • Supported protocols: HTTP. HTTPS, Telnet
  • RS232 interface
  • Takes up only 1U of rack space
  • Configure and control the switch though Ethernet, serial port or front panel buttons.
  • Video quality adjustment are done automatically at every connection change, or can be forced via the front panel or web interface.
  • Equipped with Liquid Crystal Display (LCD) for front panel operation.
  • A digital VU-meter shows the audio levels of the selected output.
  • Each output provides one video signal and one stereo audio signal.
  • Each input can be independently connected to any or all outputs.
  • No loss of audio or video quality between the local and remote units.
  • VGA and S-Video transmitters and receivers can be supported on the same VEEMUX unit.
  • VGA inputs only work with VGA outputs, and S-Video inputs only work with S-Video outputs.

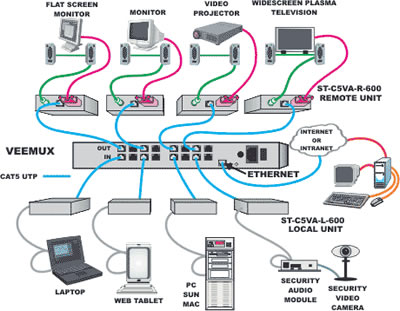

NTI VEEMUX Audio Video Matrix KVM Switch Diagram
NTI VEEMUX Audio Video Matrix KVM Switch Diagram

NTI SM-16X16-C5AV-LCD Specifications:

Mechanical
Height 1.75 in. (4.44 cm.)
Width 19 in. (48.26 cm.)
Depth 12 in. (30.48 cm.)
Weight 6.5 lbs. (2.94 kg.)
Ports
Audio/Video Inputs 16
Audio/Video Outputs 16
MTBF 48,479 hrs.
Environmental
Operating Temperature 32°F to 100°F (0°C to 38°C)
Storage Temperature -20°F to 140°F (-30°C to 60°C)
Relative Humidity 17 to 90% non-condensing RH
Power
Operating Voltage 110 or 220 VAC
Power Frequency 50 or 60 Hz via IEC connector
Power Consumption 20W
Add -48V5V10A2, optional internal DC-DC converter, to install the SM-16X16-C5AV-LCD in a Telecom environment.
Cables CAT5, CAT5e or CAT6 UTP straight through cable for TIA/EIA-568B wiring terminated with standard RJ45 connectors (not included)
Standards
Regulatory Approval CE
Question: what is the warrantee on this switch?
Answer: This NTI switch has a 2-year limited warranty. NTI warranty details can be found here: http://www.networktechinc.com/warranty.html.

Question: Does this product support signals through ethernet, from a USB/VGA extender?
Answer: Thank you for your inquiry. This unit receives signals over CAT5 via NTI CAT5 extender system transmitters and sends the signals back out over CAT5 to NTI CAT5 extender system receivers. The VEEMUX is a video matrix switch that allows any of the 16 different receivers to access any of the 16 attached transmitters. Each receiver and transmitter attaches directly to the matrix switch.

The Ethernet port is strictly for configuration and control.
