NTI 32x32 DVI Video Matrix Switch with Audio


Save $500.06
FREE Shipping on orders over $100

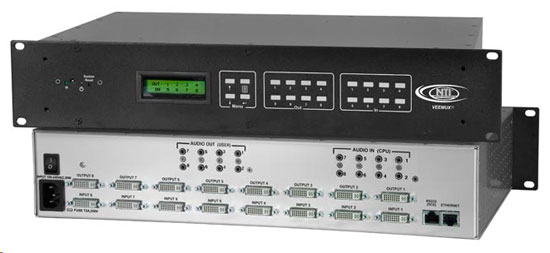

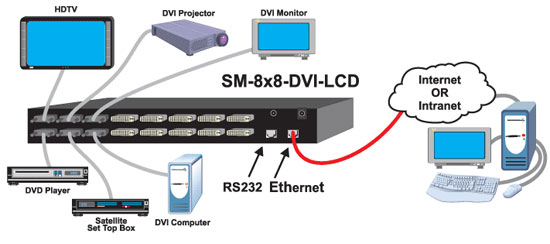

The VEEMUX¨ DVI Video Matrix Switch routes video from 32 single link digital DVI video sources (computers, DVD players, satellite receivers, etc.) to 32 displays (LCD monitors, Plasma screens, DLP HDTVs, projectors, etc.) and stereo audio speakers.


  • Configure and control the switch through Ethernet, serial port, front panel buttons, or IR remote.
  • Supports DVI-D interface for crisp and clear video quality on flat panel displays.
  • Available with optional stereo audio.
  • Supports HDTV resolutions up to 1080p and computer resolutions up to 1920x1200 (WUXGA).
  • Passes HDMI audio and video signal through DVI-I port.
    • Transmit audio and video over a single cable with the DVI-HD-xx-MM male DVI-D to male HDMI cable.
  • Meets the electrostatic discharge (ESD) immunity requirements of IEC/EN 61000-4-2.
  • Each output provides one video signal and one stereo audio signal .
  • Each input can be independently connected to any or all outputs.
    • HDCP is supported when connecting any one input to any one output (4x4 and 8x8 models only).
    • HDCP is not supported when connecting one input to multiple outputs.
  • EDID learning for the support of any DVI display device.
  • Built-in default EDID configuration tables for both PC and MAC.
    • Dual default EDID configuration tables: high resolution without audio and TV resolution with audio.


NTI SM-32x32-DVIA-LCD Specifications

Height 7 in. (17.78 cm)
Width 19 in. (48.26 cm.)
Depth16.17 in. (41.07 cm.)
Video Input
ConnectorsFemale DVI-I
Signal TypeSingle link digital DVI
CompatibilityComputers, HDTV video sources, satellite receivers, DVD players (with DVI video)
Platform SupportWindows 2000/2003/2008, Solaris, Linux, Free BSD and MAC OS 9/10
Video Output
ConnectorFemale DVI-I
Signal TypeSingle link digital DVI
HDTV Resolutions1080p
Computer Resolutions1920x1200 (WUXGA)
Video Bandwidth1.65 Gbps
Audio Input
 3.5 mm stereo audio jacks
Impedance10K Ohm
Maximum Input Level1 Vrms or 2.5 Vp-p
Audio Output
 3.5 stereo audio jacks
 Drives 8-Ohm speakers
Unbalanced gainUser defined
Frequency Response20Hz to 20 kHz, +/-0.5 dB
Total harmonic distortion + noise0.01% at 1 kHz
Gain Adjustment-20 dB to +10 dB in 2 dB steps
 200 mW RMS of continuious power per output
Power100 to 240 VAC at 50/60 Hz via IEC Connector
