NTI 4x4 DVI Video Matrix Switch

SM-4X4-DVI-LCD

$1,320.00$1,213.79
Save $106.21
FREE Shipping on orders over $100

The VEEMUX¨ DVI Video Matrix Switch routes video from 4 single link digital DVI video sources (computers, DVD players, satellite receivers, etc.) to 4 displays (LCD monitors, Plasma screens, DLP HDTVs, projectors, etc.).

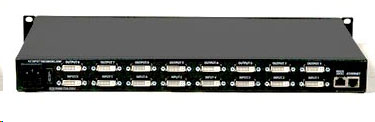

product back

  • Configure and control the switch through Ethernet, serial port, front panel buttons, or IR remote.
  • Supports DVI-D interface for crisp and clear video quality on flat panel displays.
  • Supports HDTV resolutions up to 1080p and computer resolutions up to 1920x1200 (WUXGA).
  • Passes HDMI video signal through DVI-I port.
    • Transmit video over a single cable with the DVI-HD-xx-MM male DVI-D to male HDMI cable.
  • Meets the electrostatic discharge (ESD) immunity requirements of IEC/EN 61000-4-2.
  • Each output provides one video signal and one stereo audio signal (with audio option).
  • Each input can be independently connected to any or all outputs.
    • HDCP is supported when connecting any one input to any one output (4x4 and 8x8 models only).
    • HDCP is not supported when connecting one input to multiple outputs.
  • EDID learning for the support of any DVI display device.
  • Built-in default EDID configuration tables for both PC and MAC.
    • Dual default EDID configuration tables: high resolution without audio and TV resolution with audio.

diagram

NTI SM-4x4-DVI-LCD Specifications

Mechanical
Height 1.75 in. (4.44 cm)
Width 19 in. (48.26 cm.)
Depth10 in. (25.4 cm.)
Video Input
ConnectorsFemale DVI-I
Signal TypeSingle link digital DVI
CompatibilityComputers, HDTV video sources, satellite receivers, DVD players (with DVI video)
Platform SupportWindows 2000/2003/2008, Solaris, Linux, Free BSD and MAC OS 9/10
Video Output
ConnectorFemale DVI-I
Signal TypeSingle link digital DVI
HDTV Resolutions1080p
Computer Resolutions1920x1200 (WUXGA)
Video Bandwidth1.65 Gbps
Power100 to 240 VAC at 50/60 Hz via IEC Connector
