DVI Extender via Two Singlemode or Multimode Fiber Optic Cables

ST-2FODVI-LC

$705.00$663.53
Save $41.47
FREE Shipping on orders over $100

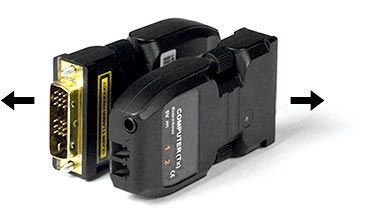

The XTENDEX ST-2FODVI-LC DVI Extender via Fiber Optic Cable locates a single link digital DVI display away from a computer up to 4,920 feet (1,500 meters) using singlemode fiber optic cable and 1,640 feet (500 meters) using multimode fiber optic cable. Each extender consists of a transmitter that connects to a computer and a receiver that connects to a monitor.

NTI XTENDEX ST-2FODVI-LC Features and Benefits:

  • Supports computer resolutions to 1920x1200 (WUXGA).
  • Signal transmission via two strand singlemode or multimode LC fiber optic cable - no RF interference.
    • Using singlemode cable, extend to 4,920 feet (1,500 meters).
    • Using multimode cable, extend to 1,640 feet (500 meters).
  • Cables can be installed in conduit prior to extender installation.
  • Small form factor - allowing for easy connection and placement.
  • EDID learning for the support of any DVI display device.
  • Compliant with DDWG DVI standard.
  • Low RFI/EMI for sensitive applications.
  • No software to install.

The DVI Optical Extender is the ideal solution for a wide range of applications. Examples include:

  • Remote DVI display monitoring for medical, military, aerospace, industrial and traffic control applications.
  • Digital Flat Panel Displays (FPD), Plasma Display Panels (PDP) and projectors in conference rooms and auditoriums.
  • Kiosks with digital FPDs.
  • Color LED signboards, FPDs and PDPs for information display at stadiums.


NTI XTENDEX ST-2FODVI-LC Diagram
NTI DVI-D Extender via Fiber Optic Cable Diagram
(ST-2FODVI-LC depicted here)

NTI XTENDEX ST-2FODVI-LC Resources:

XTENDEX ST-2FODVI-LC Data Sheet (PDF)
XTENDEX ST-2FODVI-LC Manual (PDF)
NTI FIBER-D-LCLC-50-xxM Cable Specification (PDF)

NTI XTENDEX ST-2FODVI-LC Specifications:

Mechanical
Width1.5 in.
Height0.6 in.
Depth2.7 in.
Power
AC Adapter100 to 240 VAC at 50 or 60 Hz via AC adapter.
Power consumption5 W (each - transmitter and receiver).
Environmental
Operating Temperature32 to 122°F (0 to 50°C)
Storage Temperature14 to 185°F (-10 to 85°C)
Remote Unit
Connectors1 x male DVI-D single link connector;
2 x LC Fiber
Resolutionsup to 1920x1200. (WUXGA)
Local Unit
Connectors1 x male DVI-D single link connector;
2 x LC Fiber
CablesUse a FIBER-D-LCLC-50-xxM duplex multimode LC 50-micron fiber optic cable to extend the receiver from the transmitter up to 1,640 feet (500 meters).

Use a duplex singlemode LC 9-micron fiber optic cable to extend the receiver from the transmitter up to 4,920 feet (1,500 meters).
Regulatory ApprovalsCE, FCC, RoHS
TAA Compliant
