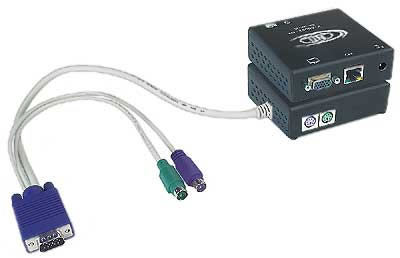

NTI XTENDEX CAT5 KVM Extender

ST-C5KVM-300

$500.00$459.77
Save $40.23
FREE Shipping on orders over $100
Download the
ST-C5KVM-300 Manual (PDF)

The NTI XTENDEXª ST-C5KVM-300 KVM extender provides local and remote KVM (PS/2 keyboard, PS/2 mouse and VGA monitor) access to a PC or NTI KVM switch up to 300 feet using CAT5/5e/6 UTP cable.

  • Supports two users: one local and one remote.
  • Local unit provides local KVM access.
  • Allows local and remote access to network servers.
  • Built-in surge protection
  • Available with optional stereo audio or RS232 control (ST-C5KVM-600 only).
  • Keep-alive keboard/mouse emulation for flawless operation.
  • Use in-house CAT5 wiring to locate a keyboard, monitor and mouse remotely.

NTI ST-C5KVM-300 Local Unit Features:

  • Host Connection
    • Supports a PC, SUN Fireª V20z, or NTI Switch.
    • Male 15-pin HD/male 6-pin miniDIN connectors for PC or NTI KVM switch.
  • Local Access
    • Crisp and clear 1920x1440 video resolution.
    • Female 15-pin HD connector.
    • Female 6-pin miniDIN connectors.
    • Compatible with Japanese keyboard layout.
    • Supports PS/2 mice including the IBM ScrollPoint mouse.
    • NTI recommends using identical keyboards and mice at local and remote units.

NTI ST-C5KVM-300 Remote Unit Features:

  • Supports resolutions up to 1920x1440
  • Female 15-pin HD connector.
  • Female 6-pin miniDIN connectors.
  • Compatible with Japanese keyboard layout.
  • Supports PS/2 mice including the IBM ScrollPoint mouse.
  • Video quality adjustment for different lengths of CAT5/5e/6 cable is done manually.

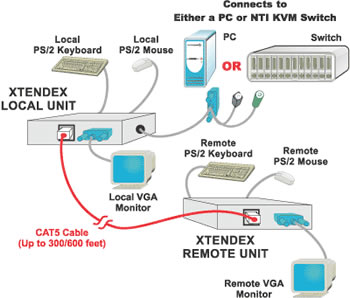

NTI XTENDEX KVM Extender Diagram
NTI XTENDEX KVM Extender Diagram

NTI ST-C5KVM-300 Specifications:

Mechanical Local Unit Remote Unit
Height 1.2 in. (3.0 cm.) 1.2 in. (3.0 cm.)
Width 3.5 in. (8.8 cm.) 3.5 in. (8.8 cm.)
Depth 3.1 in. (7.8 cm.) 3.1 in. (7.8 cm.)
Weight 1.2 lbs. (0.5 kg.) 1.2 lbs. (0.5 kg.)
Environmental
Operating Temperature 32°F to 100°F (0°C to 38°C) 32°F to 100°F (0°C to 38°C)
Storage Temperature -20°F to 140°F (-30°C to 60°C) -20°F to 140°F (-30°C to 60°C).
Relative Humidity 17 to 90% non-condensing RH 17 to 90% non-condensing RH
Power
Operating Voltage 110 or 220 VAC at 50 or 60 Hz via AC adapter 110 or 220 VAC at 50 or 60 Hz via AC adapter
Power Consumption 10W 10W
Note: Use the PWR-48V-9V0,6A or PWR-12V-9V0,6A DC-DC power converter to install the remote unit in a Telecom environment.
MTBF 88,969 hrs 86,881 hrs
Standards
Approved Agency CE CE
Question: Am getting a replacement 9V power supply for a ST-C5KVM-300-E and need to know what polarity is needed or can it support both positive and negative.
Answer: Thank you for your inquiry. The Network Technologies Incorporated (NTI) website has the following power information for the ST-C5KVM-300:
Local and remote unit: 110 or 220 VAC at 50 or 60 Hz via AC adapter.
Power Consumption: 10 W (each - local and remote unit).

Looking at the two DC power converters though, both output +9VDC, 0.6A.
https://www.kvm-switches-online.com/pwr-12v-9v0.html
"PWR-12V-9V0,6A is an external 12VDC to +9VDC, 0.6A Power Converter"
https://www.kvm-switches-online.com/pwr-48v-9v0.html
"PWR-48V-9V0, 6A is an external 48VDC to +9VDC, 0.6A Power Converter."
Additionally, the ST-C5KVM-300 manual shows the power connector barrel as having positive polarity.

So, at least for the U.S. version (ST-C5KVM-300), it appears that it accepts a positive polarity. However, we would suggest contacting the Australian NTI distributor directly to confirm that the ST-C5KVM-300-E version is positive, negative or can accept both. http://www.ntikvm.com.au/cat5-300.html
