NTI 300ft. Cat5 KVM Extender with Audio

ST-C5KVMA-300

$340.00$312.64
Save $27.36
FREE Shipping on orders over $100

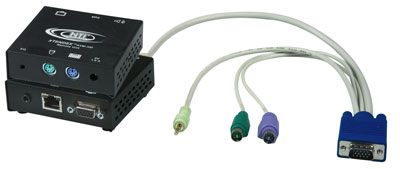

The NTI ST-C5KVMA-300 XTENDEX KVM extender provides local and remote KVM (PS/2 keyboard, PS/2 mouse and VGA monitor) access to a PC or NTI KVM switch up to 300/600 feet using CAT5/5e/6 UTP cable.

  • Supports two users: one local and one remote.
  • Local unit provides local KVM access.
  • Allows local and remote access to network servers.
  • Built-in surge protection
  • Available with optional stereo audio or RS232 control (ST-C5KVM-600 only).
  • Keep-alive keyboard/mouse emulation for flawless operation.
  • Use in-house CAT5 wiring to locate a keyboard, monitor and mouse remotely.

ST-C5KVMA-300 Diagram


ST-C5KVMA-300 Remote Unit Specifications:

  • Supports resolutions up to 1920x1440; refer to the resolution charts below for resolutions at different lengths.
  • Female 15-pin HD connector.
  • Female 6-pin miniDIN connectors.
  • Compatible with Japanese keyboard layout.
  • 3.5mm stereo audio connection
  • Optional male 9-pin D connector for RS232 (ST-C5KVM-600 only).
  • Video Quality Adjustment
  • ST-C5KVM-600: automatically adjusts the video quality to compensate for varying lengths of CAT5 cable.
  • ST-C5KVM-300: video quality adjustment for different lengths of CAT5/5e/6 cable is done manually.
  • Power
  • 110 or 220 VAC at 50 or 60 Hz via AC adapter.
  • Power Consumption: 10W.
  • Environmental
  • Operating temperature: 32°F to 100°F (0°C to 38°C).
  • Storage temperature: -20°F to 140°F (-30°C to 60°C).
  • Operating and Storage Relative Humidity: 17 to 90% non-condensing RH.
  • Dimensions
  • WxDxH (in.): 3.5x3.1x1.2
  • Weight: 1.2 lbs
