NTI XTENDEX KVM Extender

ST-C5KVMA-600

$395.00$363.22
Save $31.78
FREE Shipping on orders over $100

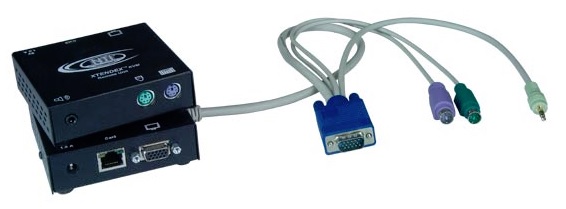

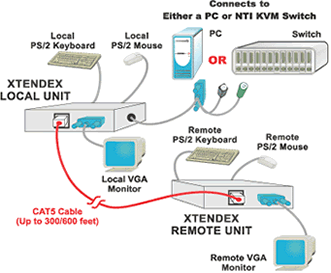

The NTI XTENDEX KVM Extender (ST-C5KVMA-600) provides local and remote KVM (PS/2 keyboard, PS/2 mouse and VGA monitor) access to a PC or NTI KVM switch up to 300/600 feet using CAT5/5e/6 UTP cable.



NTI XTENDEX KVM Extender (ST-C5KVMA-600)

NTI XTENDEX KVM Extender

Features

  • Supports two users: one local and one remote.
  • Local unit provides local KVM access.
  • Allows local and remote access to network servers.
  • Built-in surge protection
  • Keep-alive keyboard/mouse emulation for flawless operation.
  • Use in-house CAT5 wiring to locate a keyboard, monitor and mouse remotely

Specifications

Local Unit
Host Connection
 Supports a PC, SUN Fire™ V20z, or NTI Switch.
 Male 15-pin HD/male 6-pin miniDIN connectors for PC or NTI KVM switch.
 Optional stereo audio support - 3.5mm stereo plug.
Local Access
 Crisp and clear 1920x1440 video resolution.
 Female 15-pin HD connector.
 Female 6-pin miniDIN connectors.
 Compatible with Japanese keyboard layout.
 NTI recommends using identical keyboards and mice at local and remote units.
 Optional stereo audio support - 3.5mm stereo jack.
Environmental
Operating temperature: 32°F to 100°F (0°C to 38°C).
Storage temperature: S-20°F to 140°F (-30°C to 60°C).
Operating and Storage Relative Humidity: 17 to 90% non-condensing RH.
Power
Power Consumption: 10W.
 110 or 220 VAC at 50 or 60 Hz via AC adapter.
Dimensions
WxDxH (in.): 3.5x3.1x1.2
Regulatory Approvals
 CE
Remote Unit
General
 Supports resolutions up to 1920x1440; refer to the resolution charts below for resolutions at different lengths.
 Female 15-pin HD connector.
 Female 6-pin miniDIN connectors.
 Compatible with Japanese keyboard layout.
 Optional 3.5mm stereo audio connection.
Video Quality Adjustment
 ST-C5KVM-600: automatically adjusts the video quality to compensate for varying lengths of CAT5 cable.
Power
Power Consumption:10W.
 110 or 220 VAC at 50 or 60 Hz via AC adapter.
Environmental
Operating temperature:32°F to 100°F (0°C to 38°C).
Storage temperature:-20°F to 140°F (-30°C to 60°C).
Operating and Storage Relative Humidity: 17 to 90% non-condensing RH.
Dimensions
WxDxH (in.): 3.5x3.1x1.2
Regulatory Approvals
 CE

Options

ST-C5KVMA-600
RS232 Control
Available on ST-C5KVM-600.
Supports TXD, RXD, DTR, DSR, CTS and RTS.
Baud rate up to 56000.
Support for a touch screen monitor.



Question: Do you have a model that has all of the ST-C5KVMA-600 features but allows for two remote connections (if we could buy a second receiver)?
Answer: Thank you for your inquiry,

We have several ways of implementing this - the ideal implementation would depend on factors in your environment. Here are a couple of examples of what you could do:

1) 1x Rose MLK-TMDVPRAVP - CATx Dual Access PS/2 VGA KVM Splitter / Extender (Note this would not include a local console connection, but you could just pull the local console from the same computer, if needed).
2) 2x Adder X50 in 'Dual-User Configuration'. Please refer to page 10 of the manual for more information on setting up the units in that configuration (note this unit features USB, which can be adapted to PS2).
3) 1x Adder AVP2 - 2 port KVM splitter + 2x NTI ST-C5KVMA-600 (this extender kit).
4) Any 1-Port KVM Over IP Gateway i.e. the Raritan DKX2-101-V2 (note, connection to each location would be through network).
5) Any Matrix Desktop-Over-IP KVM system i.e. the AdderLink Infinity.


For a recommendation based on your application, please feel free to contact your KVM Switches online sales representative directly.
