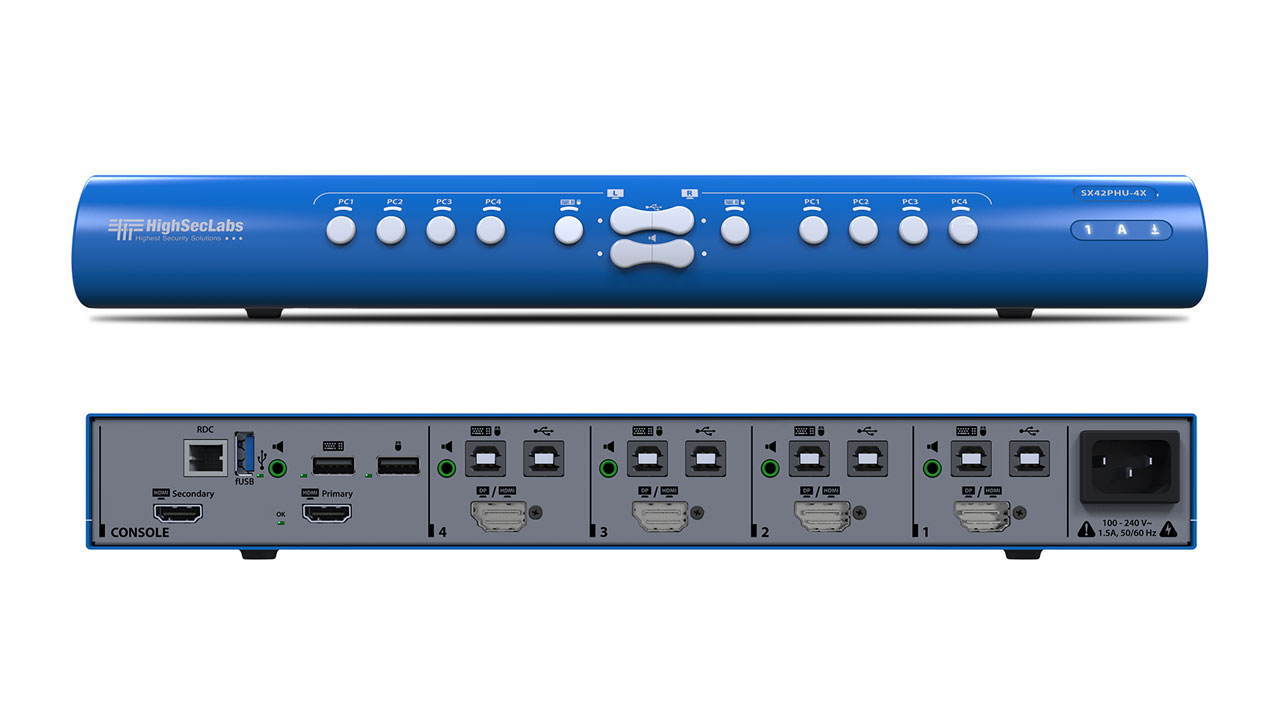

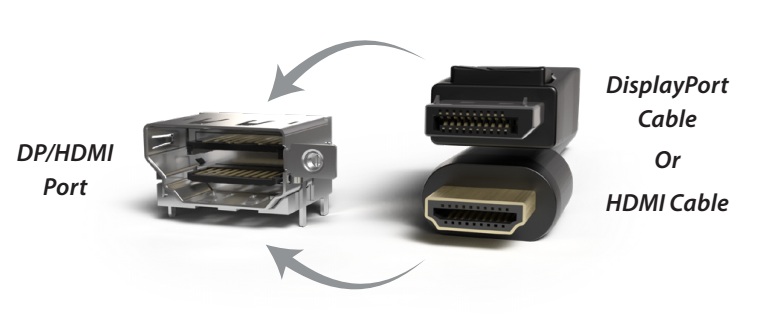

Secure Multi-viewer KVM 4K Ultra Mini-matrix, 4-Port, DP/HDMI 4K@30 video, w/ CAC support, NIAP Common Criteria PP 4.0 compliant

SX42PHU-4X Secure Multiviewer Features and Benefits

• NIAP Common Criteria PP4.0 Compliant: HSL's Secure Ultra Mini-Matrix is NIAP Common Criteria PP4.0 compliant for Peripheral Sharing Device (PSD).

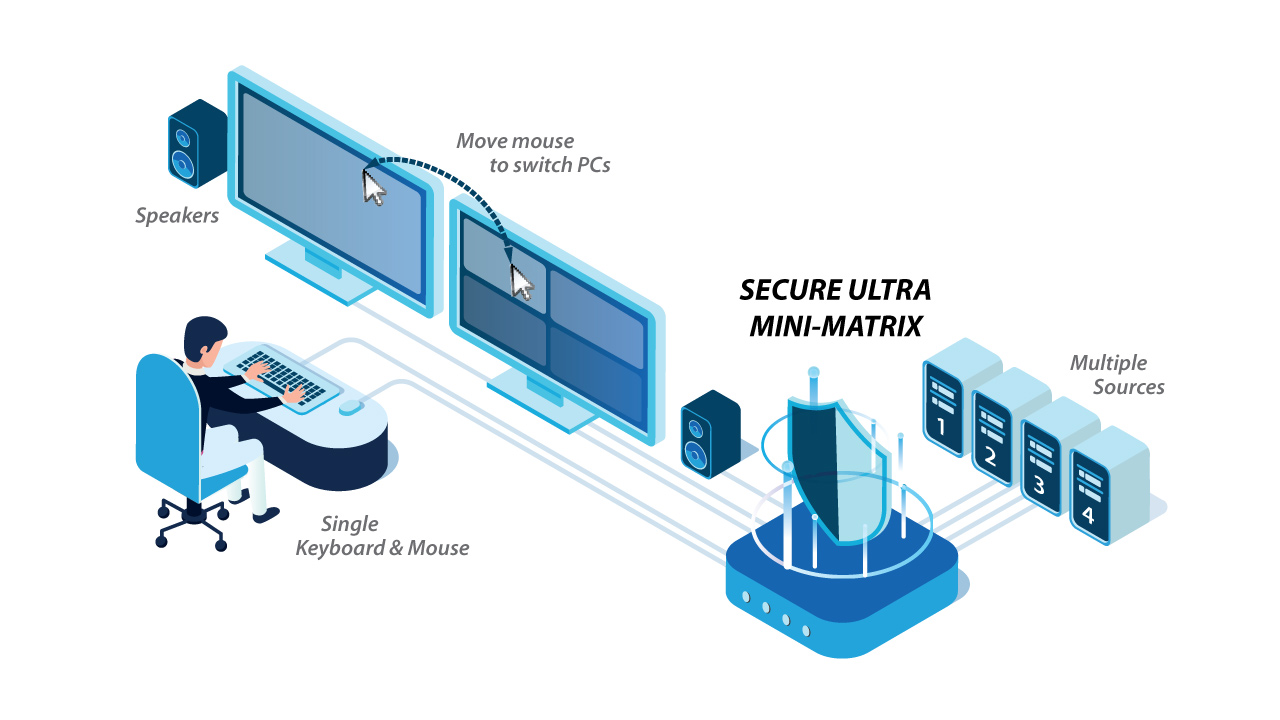

• KVM Switching: The Ultra Mini-Matrix can display and control multiple computer sources at the same time on 2 monitors, using a single set of keyboard, mouse, audio, and filtered USB peripherals.
• Free Flowing Mouse Navigation: With the Ultra Mini-Matrix drag the mouse to switch between computer sources.
• Dual monitor 4K Support: The Ultra Mini-Matrix can display content in 4K resolutions up to 3840x2160, at 30Hz.

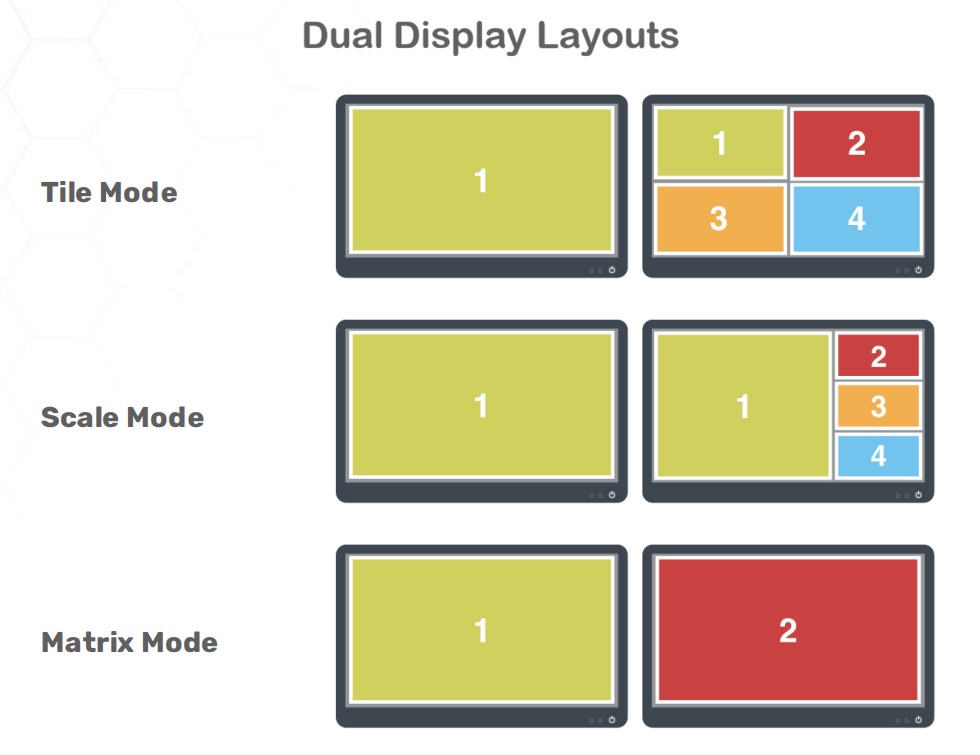

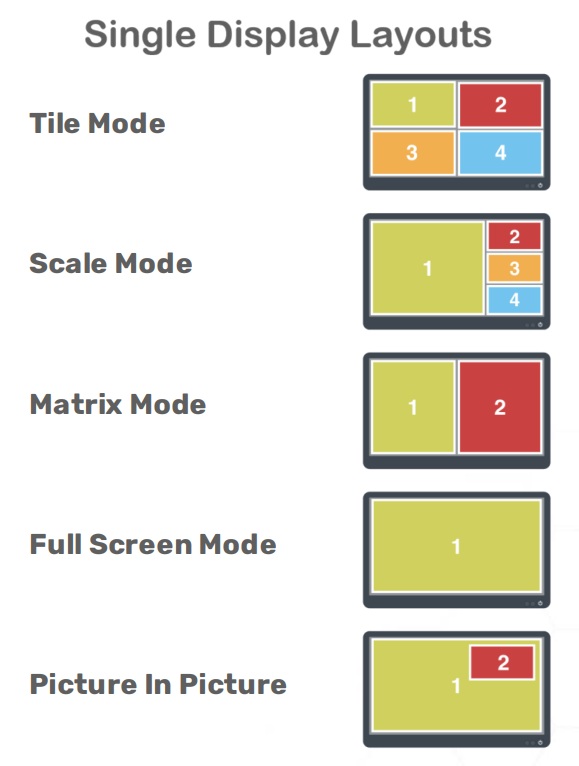

• Multiview Support: Display multiple sources on a single display screen and interact with each window securely.

• USB Security
  • Block unauthorized USB devices.
  • USB CAC readers are authorized by default.
  • Whitelist and blacklist specific USB devices based on VID/PID characteristics.
• Video Security
  • Computer video input interfaces are isolated through the use of different electronic components, power and ground domains.
  • The display is isolated by a dedicated, read-only, EDID emulation for each computer.
  • Access to the monitor's Extended Display Identification Data (EDID) is blocked.
  • Access to the Monitor Control Command Set (MCCS commands) is blocked.
• Keyboard & Mouse Security
  • The keyboard and mouse are isolated by a dedicated, USB device emulation for each computer.
  • One-way, peripheral-to-computer data flow is enforced through unidirectional optical data diodes.
  • Communication from computer-to-keyboard/mouse is blocked.
  • Non HID (Human Interface Device) data transaction is blocked.

• Audio Security
  • Enforce computer-to-speaker, one-way flow of sound through unidirectional optical data diodes.
  • Prevent eavesdropping and line-in re-tasking by blocking speaker-to-computer communication.
• Hardware Anti-Tampering
  • Any attempt to open the product enclosure will activate an antitamper system making the product inoperable.
  • Blinking LEDs provide a clear indication of a tampering event.
  • Special holographic tampering evident labels on the product's enclosure provide a clear visual indication if the product has been opened or compromised.
• Firmware Anti-Tampering
  • There is no access to the product's firmware or memory through any port.
  • Firmware is permanently stored on a non-reprogrammable Read Only Memory (ROM) to prevent any modification.
  • Firmware integrity is verified through a self-test procedure during power-up. Upon detection of a critical failure the device disables normal operation and provides the user with a clear visual indication of failure.
• Secure Supply Chain
  • The Secure Ultra Mini-Matrix is produced in Huntsville, AL, using a secure supply chain, and are TAA/BAA compliant.
