4-Port Ultra Mini-Matrix Remote Control Unit
WR40-4X
Save $34.00
A purpose-built remote control for the Ultra Mini-Matrix product line, delivering intuitive, pre-programmed preset control with RGB-illuminated keys.

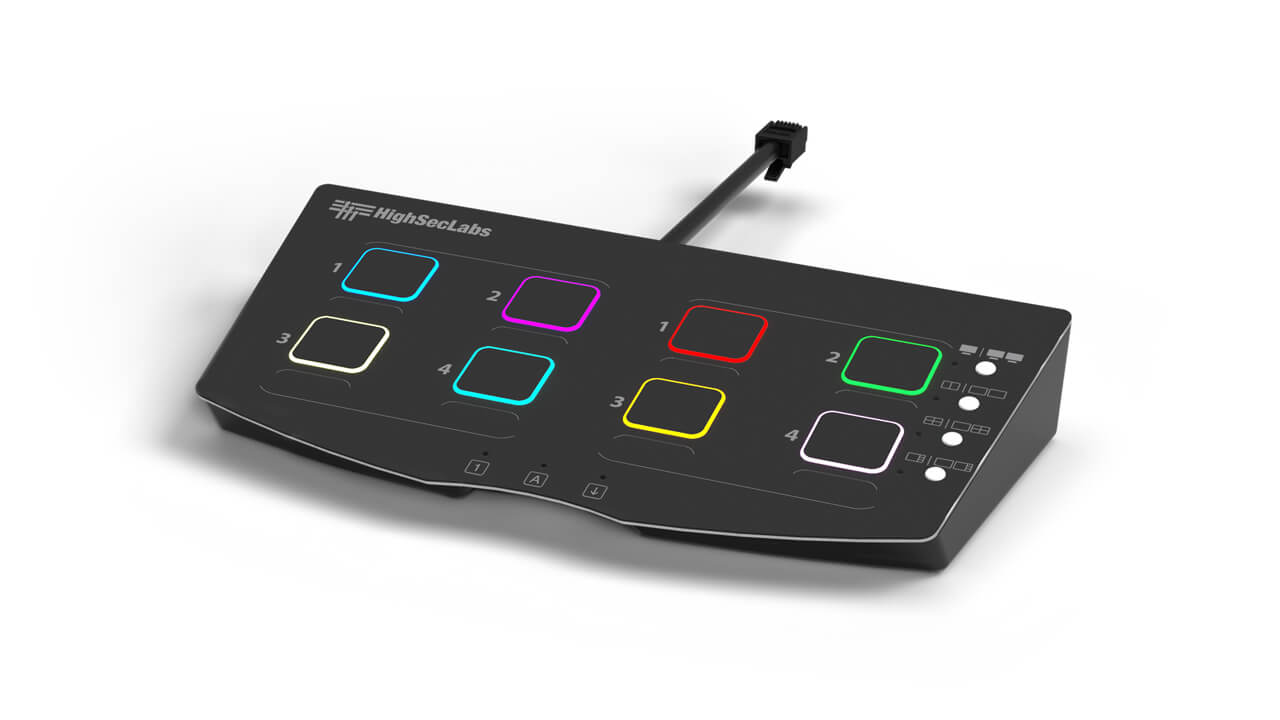

The WR40-4X RS-232 Remote Control for the Ultra Mini-Matrix is purpose-built to mirror the system's functionality and preset configurations, enabling fast and intuitive operation. The remote-control unit features RGB-illuminated buttons for clear input source selection and Multiview layout control. The WR40-4X provides intuitive control across single and dual-display environments. Designed for reliability and consistency, the units enable operators to fully leverage the Ultra Mini-Matrix functionality with minimal training.
WR40-4X Secure Ultra Mini-Matrix Remote Control Operation

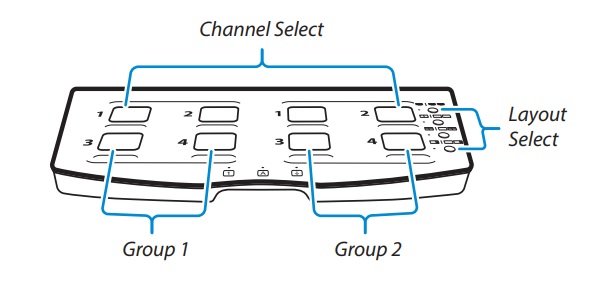

Buttons are arranged in two groups of four. In single-display or Duplicate Mode configurations, the left group controls the active input source. In Matrix (side-by-side)View, the left group controls the left view, while the right group controls the right view. In dual-display configurations, each group controls a display.
Additional buttons on the right side provide direct access to predefined display layouts for efficient and consistent visualization.
- Toggle between Single-Display/Duplicate Mode and DualDisplay/Extended Mode
- Toggle between Matrix (side-by-side) View and Picture-inPicture View
- Switch to Tile View
- Switch to Scale View
WR40-4X Specifications
| Description | 4-Port Ultra Mini-Matrix Remote Control |
| Compatibility | SX42PHU-4X |
| Channel Selection Butons | 8 Buttons |
| Button Illumination | 10 colors, reflecting the assigned colors to each source in the Ultra Mini-Matrix |
| Layout Preset Selection Buttons | 4 Buttons |
| Button Illumination | Active/Inactive status light showing selected layout preset |
| Active Channel Indication | The channel controlled by the mouse and keyboard is indicated by a blinking light on the linked button |
| Layout Preset Selection Buttons | Active/Inactive status light showing selected layout preset |
| Dimensions | 18 (W) x 9 (L) x 3 (H) cm / 7.086 (W) x 3.54 (L) x 1.18 (H) inch |
| Weight | 0.092 Kg (0.2 lbs) |
| Compliance | TAA & BAA |
| Product life-cycle | 10 Years |
| Warranty | 2 Years |
The WR40-4X 4-Port Ultra Matrix Remote Control is also known as the CPN38041.
