Rose UltraConsole 1x4 Console Switch


Save $87.37
FREE Shipping on orders over $100

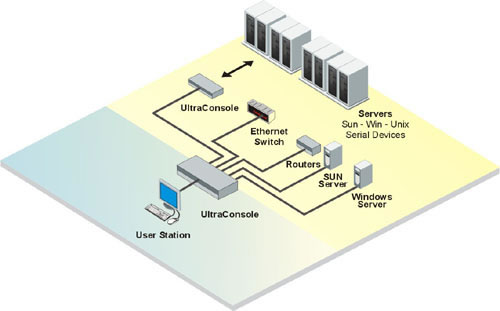

The UltraConsole represents the latest in KVM switching technology at affordable prices. The UltraConsole allows for a central user station to connect to four computers per chassis, expandable to as many as 1,000 computers, servers, or serial devices.

The UltraConsole series is also available in 1x8 and 1x16 models. Units easily connect together with bus cables to make a seamless and truly scalable KVM solution.

Features and Benefits

  • Control PC, Sun, UNIX, Linux, USB, and serial devices from a single console station
  • Powerful and expandable, yet low cost
  • Plug-in expansion cards and the unit's modular design makes it simple to install, expand, and maintain
  • Uses UltraCable for superior cable management
  • Video resolution up to 1600 x 1280
  • On-screen menu informs you of connection status between units in an expanded system
  • Multi-lingual Menu (English, French, German, Spanish, Italian, Portuguese)
  • Pre-configuration feature allows installation without powering down most servers
  • Security system with user ID, password and profile prevents unauthorized configuration and controls computer access
  • Status screen displays inter-unit connections, communication, computer power, and other system information
  • Front panel indicators show which port is selected
  • Features push-button computer selection
  • Free firmware upgrades for product enhancements and new software features available
  • Made In USA



16.7"W x 4.85"D x 1.75"H
42.4W x 12.3D x 4.4H (cm)
Weight 4 lbs / 1.8 kg

Power - IEC320
Expansion - DB15M/F
RS232 - RJ12 (6-pin)
Power 90 - 240 VAC, auto-switching
Bandwidth 250MHz
Video sync HV sync, composite, sync-on-green
Controls Power on/off switch, port selector switches
Indicators Chassis Power, CPU select, CPU power
Chassis Electro galvanized steel, black powder coated (Top cover)
Environmental 0°-45°C, 5%-80% non-condensing RH
Approvals FCC, VCCI, UL, cUL, TUV, CE
