Rose UltraLink Lite Single Remote Access over IP, LAN, & WAN



Replaced by: Rose UltraLink UL-V3
Alternative options: Contact Us

The Rose Electronics UltraLink Lite UL-LV3 is a single local port, Digital KVM Over IP unit which sets a new standard for an economical way to remotely manage server room environments. The UL-LV3 allows you to access your computers and servers locally or across your network.

The UltraLink Lite is easy to install and configure. Connect the unit, assign an IP address, install the remote viewer software, and it's ready to use. The sophisticated scaling feature allows you to position any size image of your server's video anywhere on your screen. With this feature, you can monitor servers while working on other tasks in another window. Network workstations can connect to multiple UltraLink Lites IP KVM units and display each connection in separate viewer windows.

The remote client viewer program is designed to simplify accessing the remote computers. Click on the connect icon, login, and you will see a crisp, clear high quality image of the remote computer.

Rose Digital KVM Over IP Features:

  • Local KVM port for configuring the UltraLink Lite and direct local access to the computer or KVM switch
  • Connect to a remote computer, server, or KVM switch directly or over a network
  • Resolution up to 1280 x 1024 @ 75hz
  • Solid-state embedded unit for maximum reliability
  • Compatible with all Rose Electronics KVM products and most other KVM devices
  • Easy to install and configure
  • Scaling of computer images reduces the amount of data sent and permits fast screen updates over slow links (Modes: scaled, scrolled, or full-screen)
  • Quad screen mode allows you to view four servers from one screen when connected to a KVM switch
  • Password security prevents unauthorized configuration and access
  • User ID and password required for remote access
  • Remote client application is simple to install, use, and requires no licensing
  • Front panel shows power and current connected input port (Network, serial, or local KVM)
  • Flash memory technology

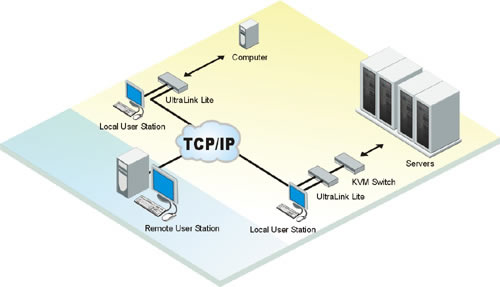

Rose Digital KVM IP Wiring Diagram
Rose Digital KVM IP Wiring Diagram

Rose UL-LV3 Specifications:

Height 1.75 in. (4.40 cm.)
Width 8.9 in. (22.6 cm.)
Depth 8.4 in. (21.3 cm.)
Weight 4.10 lbs. (1.86 kg.)
Environmental 0°- 45°C / 32°- 113°F,
5 - 80% non-condensing RH
Power Auto Switching, 90 - 240 VAC, 130 watts
Power IEC 320 standard receptacle
Local KVM Video - HD15F, Keyboard - MD6F, Mouse - MD6F
Switch or computer DB25F
Ethernet port RJ45
Serial port DB9M
Video Bandwidth 150Mhz
Chassis Electro galvanized steel, black powder coated (top cover)
Controls Power On / Off Switch
Indicators LEDs: Power, Net, Serial, Local, Ethernet link,
10/100MB Ethernet speed
Approvals FCC, UL, cUL, TUV, CE, VCCI
