USB-3 Extender Over Copper with Four USB 3.2 ports
UMCE10C-N
Save $394.00

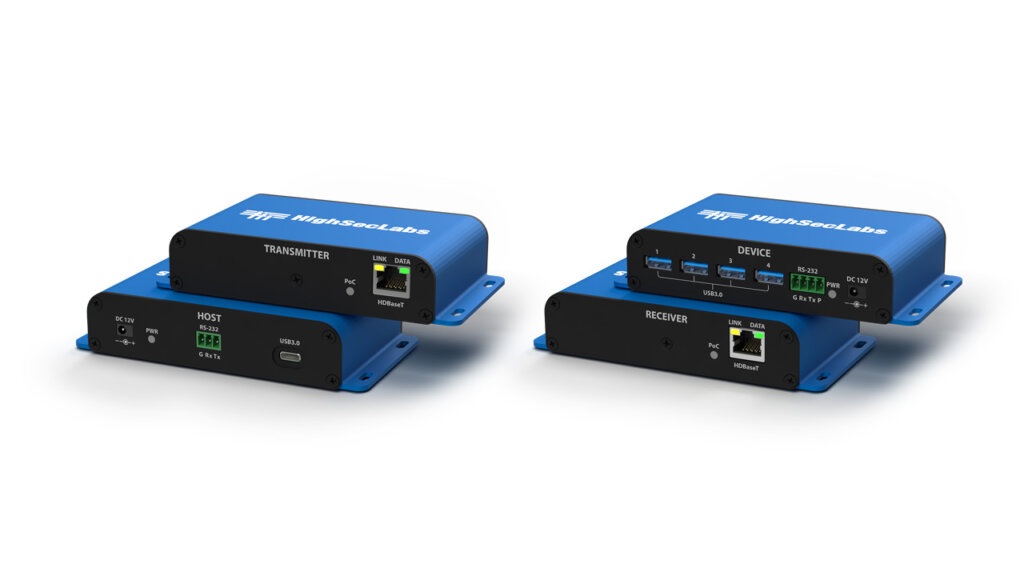

The TAA/BAA compliant UMCE10C-N is a point-to-point USB 3.2 Extender solution sending USB 3.2 signals up to 90m away across CAT 6A cable. The transmitter unit, located near the host computer, provides a high-performance USB-C interface. The receiver unit, located by the peripheral devices, has four USB 3.2 Type A ports. Both units support PoC (Power Over Copper) for ultimate flexibility, and provide RS232 terminal blocks for extending serial data commands and data exchange with remote devices.

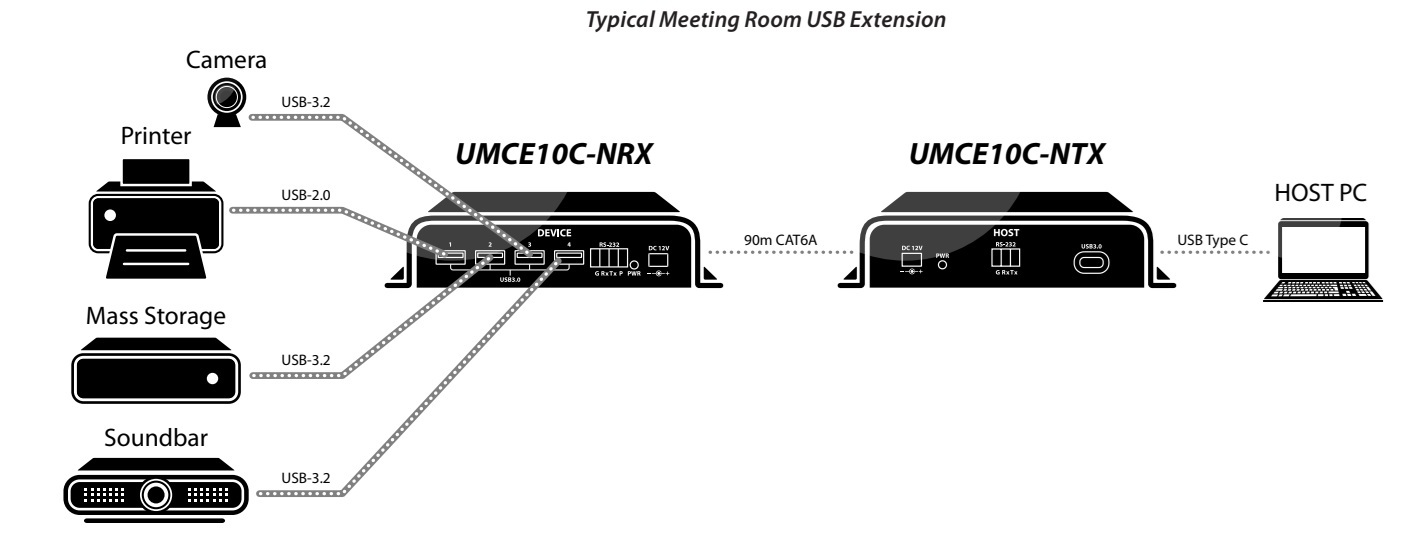

Enjoy unmatched flexibility and uncompromising performance with the UMCE10C-N USB 3.2 extender. The UMCE10C-N USB extender is the perfect way to connect peripheral devices such as conferencing cameras, soundbars, printers, keyboards & mice, and storage devices to a remote host computer. Typical usage environments include conference rooms, lecture halls, warehouses and industrial environments, medical imaging rooms and more.
UMCE10C-N USB 3.2 Extender Features and Benefits
- Extend and power up to four connected USB 3.2 device including cameras, mass storage and other demanding devices.
- Long Distance Extension: Extend KVM signals through CAT6 cable over distances up to 90m.
- RS-232 terminal blocks for extending serial data commands and data exchange
- Power over Copper: Send power from the Transmitter to the Receiver, removing the need for multiple power sources.
- TAA / BAA compliant
UMCE10C-N Package Contents
- (1) UMCE10C-NTX 90m Copper Extender USB 3.2 Transmitter (TX)
- (1) UMCE10C-NRX 90m Copper Extended USB 3.2 Receiver (RX)
- (1) 0.9m/3ft USB C Cable
- Wall-Mounted 12V Power Supply
- (1) 2-year standard warranty
UMCE10C-N Resources
USB 3 Extender Datasheet (PDF)
High Sec Labs Copper Extender Data Sheet (PDF)
High Sec Labs Extender Solutions Brochure (PDF)
High Sec Labs UMCE10C-N Specifications
| Mechanical | |
| Dimensions | 140 (W) x 74 (D) x 28 (H) mm 5.5 (W) x 2.9 (D) x 1.1 (H) inch (Transmitter and Receiver) |
| Weight | 0.140 kg (0.3 lbs) (Transmitter / Receiver) |
| Environmental | |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Operating Humidity | 0% to 80% non-condensing; |
| Extender Features | |
| Extension type | Copper |
| Link Port | RJ45 |
| CAT 6A Link distance | 90m (295 ft.) ** |
| PoC | Yes. To meet the power demands of certain USB peripherals, connect the power supply to the RX unit with the TX unit being supplied by PoC. |
| Transmitter UNIT (TX) | |
| USB Port | 1 x USB 3.2 Type C |
| RS232 | Terminal Block |
| Receiver Unit (RX) | |
| USB Port | 4 x USB 3.2 Type A |
| RS232 | Terminal Block (includes power pin to supply other HSL products) |
| Power (TX/RX) | |
| Power Requirements | 12VDC / 3.5A |
| AC Input | External at Receiver |
| POC | Supported in Transmitter |
| Software | |
| Supported OS | Windows, Linux, Mac |
| Certification | |
| Product Certification | CE, RCM, FCC Class B, VCCI, TUV US, TUV Canada |
| General Info | |
| Made In | TAA, BAA compliant |
| Product life-cycle | 10 years |
| Warranty | 2 Years |
** Extension distance is dependent on the type and quality of the CATx cable in use. CAT6A or better recommended
The UMCE10C-N USB 3.2 Gen 1 Copper Extender is also known as the CPN32993.
