USB 2.0 Extender Over Copper - 100m, TAA/BAA Compliant
UMCE10N-N
Save $119.33

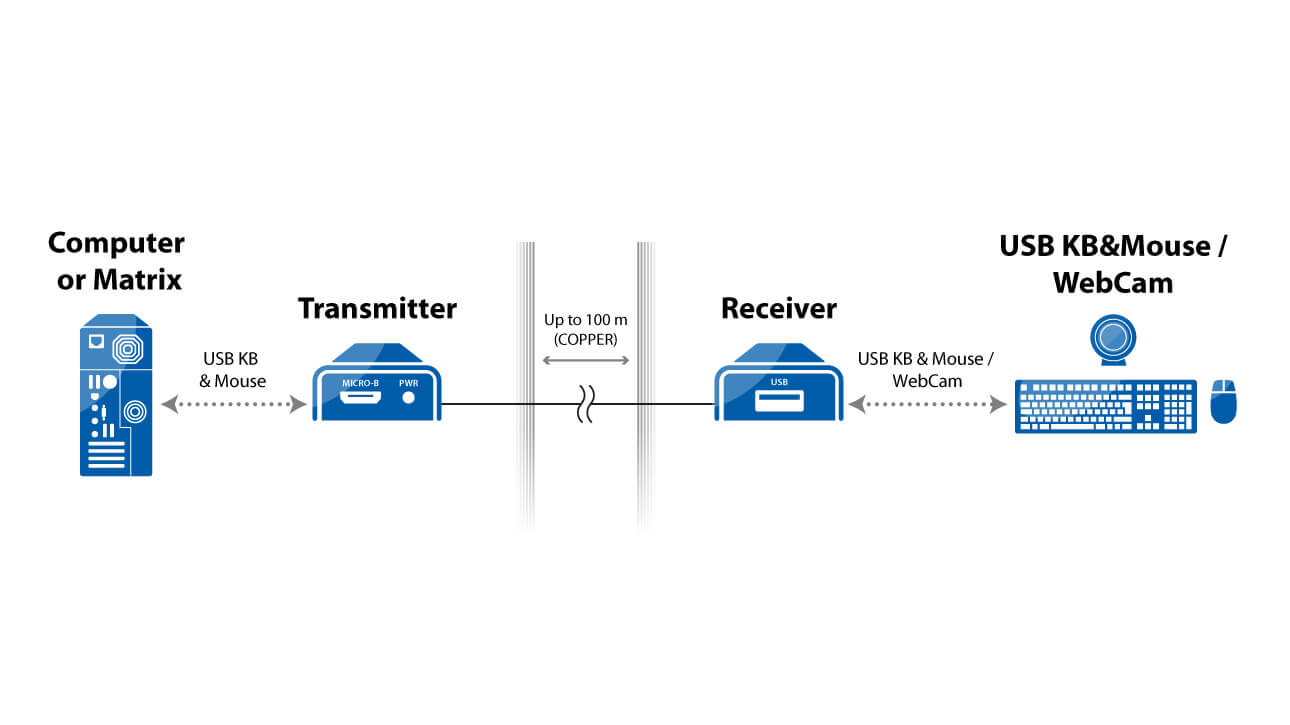

The High Sec Labs UMCE10N-N single-port copper USB Extender extends and powers USB devices such as webcams and other demanding devices. The UMCE10N-N is ideal for users connecting to centralized computer networks from physically distant workstations and peripherals.
UMCE10C-N USB 2.0 Extender Features and Benefits
- Extend and power a single connected USB 2.0 device including cameras, mass storage and other demanding devices.
- Long Distance Extension: Extend USB signals through CAT6 cable over distances up to 100m.
- TAA / BAA compliant
UMCE10N-N Package Contents

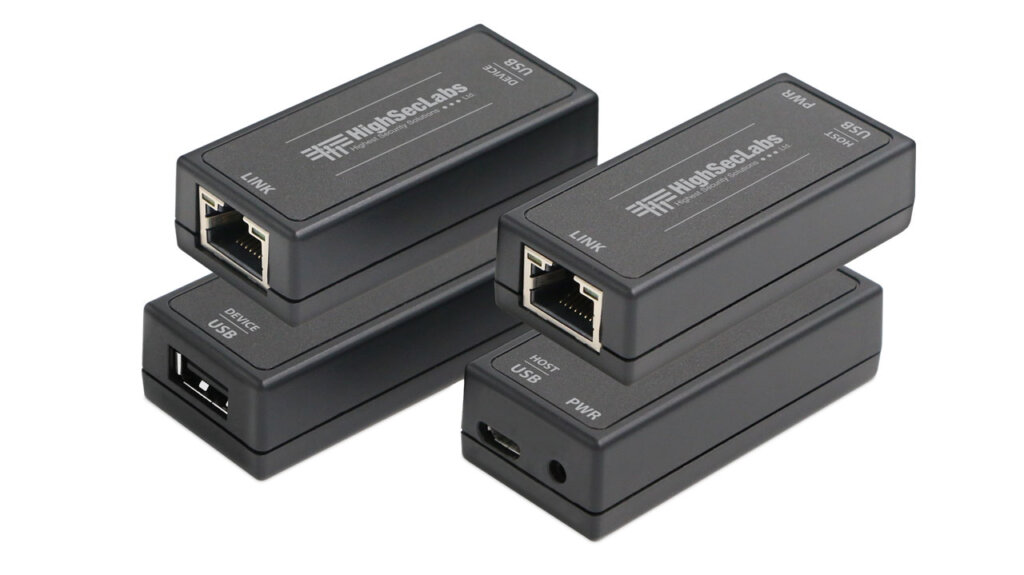

- (1) Commercial small form factor 100m Copper Extended USB 2.0 Transmitter (TX)
- (1) Commercial small form factor 100m Copper Extended USB 2.0 Receiver (RX)
- (1)1m Cable, Micro USB A to Micro USB B - for power
- (1) 2-year standard warranty
UMCE10C-N Resources
High Sec Labs Copper Extender Data Sheet (PDF)
High Sec Labs Extender Solutions Brochure (PDF)
High Sec Labs UMCE10N-N Specifications
| Mechanical | |
| Dimensions | 28 (W) x 60 (D) x 17 (H) mm 1.1 (W) x 2.4 (D) x 0.7 (H) inch (Transmitter and Receiver) |
| Weight | 0.02 kg (0.05 lbs) (Transmitter / Receiver) |
| Environmental | |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Operating Humidity | 0% to 80% non-condensing; |
| Extender Features | |
| Extension type | Copper |
| Link Port | RJ45 |
| CAT 6A Link distance | 100m (~328 ft.) ** |
| PoC | N/A |
| Transmitter UNIT (TX) | |
| USB Port | 1 x USB 2.0 Type B |
| RS232 | N/A |
| Receiver Unit (RX) | |
| USB Port | 1 x USB 2.0 Type A |
| RS232 | N/A |
| Power (TX/RX) | |
| Power Requirements | 5V DC via USB mini B port |
| AC Input | N/A |
| POC | N/A |
| Software | |
| Supported OS | Windows, Linux, Mac |
| Certification | |
| Product Certification | CE, RCM, FCC Class B, VCCI, TUV US, TUV Canada |
| General Info | |
| Made In | TAA, BAA compliant |
| Product life-cycle | 10 years |
| Warranty | 2 Years |
** Extension distance is dependent on the type and quality of the CATx cable in use. CAT6A or better recommended
The UMCE10N-N USB 2.0 Copper Extender is also known as the CPN28644.
