Raritan Cat5 Reach Extender System- Receiver Only



Recommended replacement: Adder X2-SILVER/P
Alternative options: Contact Us

The Raritan Cat5 Reach URKVMG is a Receiver unit with RJ45 jack and PC KVM ports.  The Cat5 Reach extender system is made up of this receiver unit and the UKVM transmitter unit (sold separately).

The Cat5 Reach system allows you to:

  • Operate a PC from wherever you want to be.
  • Keep your PC in a clean, secure environment.
  • Protect the PC, applications and valuable data.
  • Add a local user console, in addition to the remote user console.
  • Control all servers connected to a KVM switch remotely.

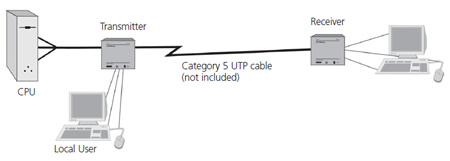

Raritan Cat5 Reach Application Diagram
Raritan Cat5 Reach Application Diagram

NOTE: KVM cables and Cat5 cables are sold separately.  Use Enhanced Category 5 UTP (350 Mhz) cable, with RJ-45 connectors.  Cable must conform to EIA/TIA T568B Category 5 wiring standard.

Raritan URKVMG Specifications:

Height 1 in. (23 mm.)
Width 4.3 in. (108 mm.)
Depth3.6 in. (91 mm.)
Weight0.5 lb. (0.2 kg.)
Power6V DC 1.4 amp output (included)
User Port6 pin keyboard & mouse, HD15
Connection to SUNDB25(F)
Connection to TransmitterRJ-45 jack
