Thinklogical Dual Head DVI KVM X-tender System Receiver, SC



Recommended replacement: Adder X-DVIPRO-MS2-US
Alternative options: Contact Us

The Thinklogical VIS-000024-SCRX is a fiber optic Dual Head DVI KVM Extender system receiver unit with SC fiber connectors.  The transmitter is connected to the receiver (sold separately) by three dedicated multimode fiber strands.  The VIS-24 fiber optic DVI KVM extender is designed to extend two DVI video ports and associated KMAS signals. The video sources must be single link DVI. The VIS-24 KVM extender system will support USB, PS2, and Sun (legacy) keyboard and mouse, USB tablets, full duplex stereo audio, and serial. The VIS-24 KVM transmitter has connections for a single local DVI display and keyboard/mouse.

The VIS-24 KVM extender is a digital fiber optic transmitter/receiver system. All video, keyboard, mouse, USB, audio and serial signals from the computer source are digitized and converted to light at the transmitter. These optical signals are then sent to the VIS-24 fiber optic KVM receiver via three fibers. Two fibers support the video displays and the other supports all other KVM signals.  The KVM receiver converts the video signals back from optical to DVI formats, which allows the use of DVI display devices. No external converter boxes are required. The system also has connectivity for all common keyboards and mouse types, USB, PS2 and Sun legacy. All electronic conversion, remapping and even international translation is supported. Everything you need to assure compatibility between the computer and the user station devices is bundled into the Vis-24 KVM Extender system already.

Note: The VIS-24 KVM extender, is fully compatible with all other Thinklogical extenders. The transmitter from one VIS extender may be used with any VIS extender receiver (excepting the Dual-Link DVI products). This unique feature allows customers to extend digital (DVI) sources to analog (RGB) destinations and vice versa.

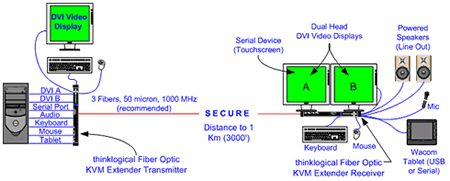

Thinklogical KVM Extender Connection Diagram
Thinklogical KVM Extender Connection Diagram

Thinklogical VIS-000024-SCRX Features:

  • Fiber optic KVM extension range of up to 1,000 meters
  • Fully compatible with all other Thinklogical KVM extenders
  • No proprietary cabling required- uses standard cables and connectors
  • Requires only 3 multi-mode fibers
  • Stand Alone and Rack Mountable options included
  • USB support for tablets, USB touch screens and Human Interface Devices (HID)
  • Supports PS2, Sun Legacy, and USB Keyboard and Mouse
  • Local video, keyboard and mouse at CPU (KVM transmitter) end
  • Duplex stereo audio
  • DVI (single link) supported to VESA standards for 2 remote displays
  • Front panel programmable for unique video formats
  • Serial port (DB9) supported for touch screens and serial tablets

The following copper cables are required and included:

  • (1) DVI Video to computer: DVI-D to DVI-D male to male, 6 feet (supplied)
  • (2) USB Keyboard/Mouse to Computer: USB A to B, 6 feet (supplied)
  • (2) PS2 Keyboard/Mouse to Computer: MiniDIN 6, male to male, 6 feet (supplied)
  • (1) Sun Keyboard/Mouse to Computer: MiniDIN 8, male to male, 6 feet (supplied)
  • (2) Audio to Computer: 3.5mm, male to male, 6 feet (supplied)
  • (1) Serial to Computer: DB9, male to female, 6 feet (supplied)

Thinklogical VIS-000024-SCRX Specifications:

Height 1.75 in. (4.45 cm.)
Width 17.25 in. (43.82 cm.)
Depth 14 in. (35.56 cm.)
Rack Mountable 1U, Rack size: EIA 19"
Weight 10 lbs. (4.4 kg.)
Operating Temperature 0°-50°C; (32°-122°F)
Humidity 5-95% RH, non-condensing
Supply 100-240VAC, 47-63 Hz Universal AC power supply
Consumption 12 watts per unit
Video Resolution (Approx) DVI: 1900 X 1200 @ 72Hz (any DVI single-link)
Copper Connectors
Video DVI-D (2)
Audio MIC Right 3.5mm Jack
Audio MIC Left 3.5mm Jack
Audio LINE 3.5mm Jack
Serial Port DB9 Male
USB Keyboard USB A
USB Local Keyboard N/A
USB Local Mouse N/A
PS2 Keyboard/Mouse MiniDIN 6 Female
Sun Keyboard/Mouse MiniDIN 8 Female
PS2 Local Keyboard/Mouse N/A
Sun Local Keyboard/Mouse N/A
USB Keyboard/Mouse from CPU N/A
Download USB USB B
Fiber Connectors SC
Optical Cable three Fiber Multi-Mode 50 or 62.5 micron (available, not supplied)
Distance Range Up to 1000 meters (3280 feet)
