DVI Video Splitter - 8 Port
VOPEX-DVIS-8

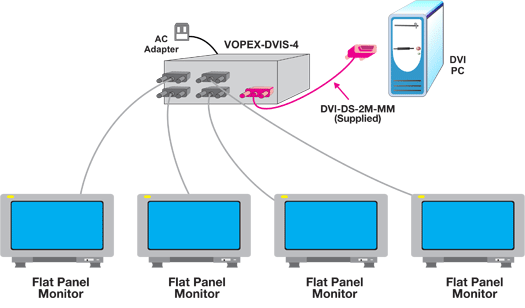

The VOPEX DVI Video Splitter enables up to 8 single link digital DVI displays to be driven by a single digital DVI source with no loss of signal.
Product Features and Benefits
- Supports DVI interface for crisp and clear video quality on flat panel displays.
- Supports HDTV resolutions to 1080p and computer resolutions to 1920x1200.
- Compliant with DVI 1.0 and HDCP standards.
- Supports the DDC2B protocol.
- EDID learning for the support of any DVI display device.
- Cascade multiple units for more numerous display configurations.
- Ideal for digital signage, tradeshows, or classrooms where high quality video on multiple monitors is needed.
| Video Input | Compatible with a computer or HDTV video source (satellite receiver, DVD player, etc) with DVI output. Multiplatform support: Windows 2000/XP/Vista/7, Windows Server 2000/2003/2008, Solaris, Linux, FreeBSD, and MAC OS 9/10. Female DVI-I connector. Signal type: single link digital DVI HDCP compliant |
| Video Output | Female DVI-I connectors. Signal type: single link digital DVI. Resolutions: HDTV resolutions to 1080p and computer resolutions to 1920x1200 at 60 Hz. HDCP compliant |
| Environmental | |
| Operating Temperature | 32 to 100°F (0 to 38°C) |
| Storage Temperature | -20 to 140°F (-30 to 60°C) |
| Humidity | 17-90% Non-Condensing |
| Mechanical | |
| Dimensions(WxDxH) | Local: 8.33 x 3.47 x 1.68 in (211.58 x 88 x 42.67 mm) |
| Weight | 1.4 lb (0.64 kg) |
| Approvals | RoHS |
| Warranty | Two Years |
| Power | |
| Type | 110 or 220 VAC at 50 or 60 Hz via AC adapter. |
Question: What is the output voltage of the AC Adaptor? Are there any concerns connecting the splitter directly to the appropriate DC supply and bypasing the AC adaptor?
Answer: Thank you for your inquiry. The output of the AC adapter is 5VDC/3.0A. According to the manufacturer, it would be possible for a 5VDC source/bus with 3A available for the Vopex unit to be used (depending on the source a DC-DC convertor may be needed.
You can see more details for the power supply on page 4 (6th page) of the PDF manual located here: http://www.networktechinc.com/pdf/man065.pdf
Question: Is this splitter 19" rack mountable? If not, do you have DVI video splitters that are?
Answer: Thank you for your inquiry,
There are a few solutions for a rack mount 8-Port DVI splitter:
Answer: Thank you for your inquiry. The output of the AC adapter is 5VDC/3.0A. According to the manufacturer, it would be possible for a 5VDC source/bus with 3A available for the Vopex unit to be used (depending on the source a DC-DC convertor may be needed.
You can see more details for the power supply on page 4 (6th page) of the PDF manual located here: http://www.networktechinc.com/pdf/man065.pdf
Question: Is this splitter 19" rack mountable? If not, do you have DVI video splitters that are?
Answer: Thank you for your inquiry,
There are a few solutions for a rack mount 8-Port DVI splitter:
- You use a Rack Mount Shelf for storing the NTI VOPEX-DVIS-8 in a 19" EIA Server Rack. To further secure the splitter, you could use for example zip-ties to attach to unit to a vented rack shelf.
- For a native 8-port DVI splitter solution that is rack mountable, you can either get the IP network-based Adder INFINITY DVI KVM Extender / Splitter solution, or the Gefen EXT-UHD600-18 8-Port HDMI Splitter with DVI to HDMI adapters.
