DVI Video Splitter w/ audio - 4 Port

VOPEX-DVISA-4

$195.00$179.31
Save $15.69
FREE Shipping on orders over $100

The VOPEX DVI Video Splitter enables up to 4 single link digital DVI displays to be driven by a single digital DVI source with no loss of signal.

Product Features and Benefits

  • Supports DVI interface for crisp and clear video quality on flat panel displays.
  • Supports HDTV resolutions to 1080p and computer resolutions to 1920x1200.
  • Compliant with DVI 1.0 and HDCP standards.
  • Stereo Audio Enabled
  • Supports the DDC2B protocol.
  • EDID learning for the support of any DVI display device.
  • Cascade multiple units for more numerous display configurations.
  • Ideal for digital signage, tradeshows, or classrooms where high quality video on multiple monitors is needed.

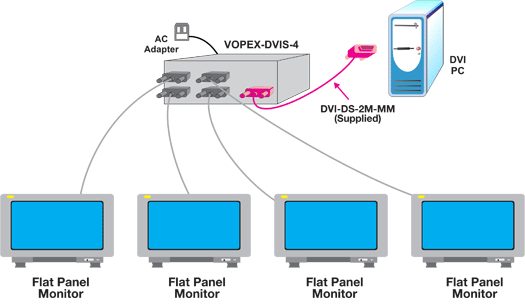

Product Diagram

Video InputCompatible with a computer or HDTV video source (satellite receiver, DVD player, etc) with DVI output.
Multiplatform support: Windows 2000/XP/Vista/7, Windows Server 2000/2003/2008, Solaris, Linux, FreeBSD, and MAC OS 9/10.
Female DVI-I connector.
Signal type: single link digital DVI
HDCP compliant
Video OutputFemale DVI-I connectors.
Signal type: single link digital DVI.
Resolutions: HDTV resolutions to 1080p and computer resolutions to 1920x1200 at 60 Hz.
HDCP compliant
Environmental
Operating Temperature32 to 100°F (0 to 38°C)
Storage Temperature-20 to 140°F (-30 to 60°C)
Humidity17-90% Non-Condensing
Mechanical
Dimensions(WxDxH)Local: 5.14 x 3.47 x 1.68 in (130.55 x 88 x 42.67 mm)
Weight1.1 lb (0.50 kg)
ApprovalsRoHS
WarrantyTwo Years
Power
Type110 or 220 VAC at 50 or 60 Hz via AC adapter.
Audio3.5 mm stereo audio jacks.
Frequency response: 20 Hz to 20 kHz, +/-1 dB.
Total Harmonic Distortion (THD): 0.012%.
Stereo Crosstalk: -82 dB.
Input impedance: 10k Ohms.
CD quality audio output.
