ATEN 4-port VGA video Switch w/120V
VS491
$54.00
ATEN (VS491) 4 Port Video Switch
Aten VS491 is a video switch with 4 ports. It allows 4 independent computers to display their video outputs on a single monitor. Therefore, users will not need to buy monitors for each computer additionally.
ATEN (VS491) 4 Port Video Switch Features and Benefits:
- Electronic switching for greater reliability and durability.
- Displays the output of four computers on a single monitor.
- High resolution video - up to 1920 x 1440 (10m) ; DDC2B.
- Supports VGA, SVGA, XGA and multisync monitors.
- Computer selection via pushbutton switch(manual).
- OS Compatibility:DOS、WIN98、WIN ME、WIN NT、WIN 2K、WIN 2003、WIN XP、LINUX、Mac OS 8.6/9/10 and SUN Solaris 8/9.

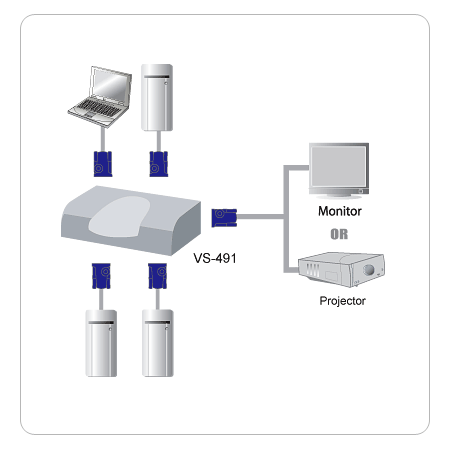

ATEN (VS491) 4 Port Video Switch Function Diagram
ATEN (VS491) 4 Port Video Switch Package Content :
1x VS-491 Video Switch
1x Powr Adapter
ATEN (VS491) 4 Port Video Switch Specifications:
| Connectors | Video In | 4 x HDB-15 Male (Blue) |
| Video Out | 1 x HDB-15 Female (Blue) | |
| Power Jack | 1 | |
| LEDs | 4 x Selected Port | |
| Port Selection | 1 x Push button | |
| VGA Resolution | 1920 x 1440; DDC2B | |
| Signal Type | VGA / SVGA / XGA / Multisync | |
| Power Consumption | DC 9V, 1.35W (max.) | |
| Housing | Plastic / Metal | |
| Weight | 0.22kg | |
| Dimensions ( L x W x H ) | 12 x 6.5 x 4.4 cm | |
UPC 672792102011
EAN 0672792102011
