UltraVista 4k Video Wall Chassis Chassis 14U, 2 windows per output

VWL-CH-DP14


The Rose Electronics UltraVista 4K Video Wall is an easy to use tool for creating multiple screen video walls or displays. Its support for an incredibly wide range of input signal types, as well as its ability to create multiple groups of output screens with different characteristics make it a significant advancement over traditional video wall equipment.

**Note the Input/Output Cards are sold separately, see Accessories

Features & Benefits

  • 14U, 2 windows per output screen. Up to 41 total cards
  • Video input formats include VGA, YpbPr, CVBS, DVI Single and Dual Link, HDMI, SDI, and DisplayPort
  • Input resolutions up to 1920x1200@60Hz, or 3840x2400@30Hz for 4K input cards
  • Output video formats include VGA, DVI Single and Dual Link, HDMI, and SDI
  • Output resolutions to 1920x1200@60Hz, or 3840x2400@30Hz for 4K output cards
  • Allows management of up to 36 video wall display groups from a single UltraVista 4K
  • Each screen group can have a unique resolution
  • Displays up to 4 different video source windows on each output screen group
  • Picture in Picture support allows video windows to be overlaid
  • Input video can be cropped and zoomed for display
  • Overlay labels for input channels provide easy identification of signal source
  • Screen group configurations can be named, saved and reloaded, or displayed in loops
  • Hot swappable input and output cards provide flexibility and convenience
  • Windows based software allows configuration control via IP or RS-232 connection

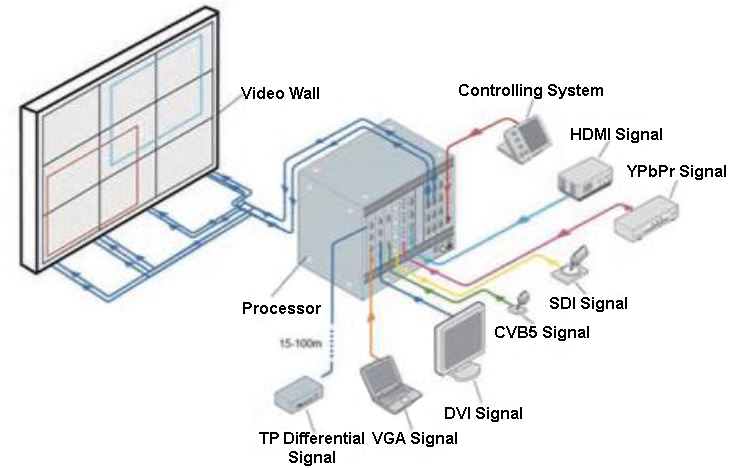

Ulrta Vista 4K Use Diagram
Video
Video Input Signals AvailableVGA, YPbPr, CVBS, DVI, HDMI, SDI, DVI Dual Link, DisplayPort
Video Output Signals AvailableDVI, VGA, HDMI, SDI
Max Resolutions1920x1200@60Hz, or 3840x2400@30Hz (4K) Cards
Environmental
Operating Temperature32°F - 104°F (0-40°C)
Storage Temperature14°F - 122°F (-10-50°C)
Relative Humidity80% Non-condensing
Power
Input100-240 VAC, 50-60 Hz
