Icron Ranger 2301 - 1-Port CATx USB 2.0 Extender - FCC/CE Class B (330 ft)

00-00391

$349.00$328.96
Save $20.04
Extension via: CatX (up to 330 ft)
Ports: Extend 1 USB Device
Construction: Metal Enclosure with FCC/CE Class B certification
FREE Shipping on orders over $100

The Icron USB 2.0 Ranger 2301 (00-00391 or RG2301) extends USB 1.1 connections beyond the desktop up to 85* meters without external power adapters, ideal for keyboards, mice, game controllers and interactive whiteboards - including all SMART Boards and Promethean ActivBoards.

USB Rover products operate over standard solid core Cat 5e UTP cable (the same wiring used in Ethernet). The USB 2.0 Ranger 2301 uses technology ideal for extending USB peripherals and does not require additional software for either the computer or the target devices.

The USB 2.0 Ranger 2301 product is composed of two separate units: the Local Extender (LEX) and the Remote Extender (REX). Conventional USB cables are used to connect the LEX unit to the host computer, and the remote USB device to the REX unit. Cat 5e UTP cabling is used to connect the LEX and REX units over a distance of up to 85m (279 ft).

Icron's USB 2.0 Ranger 2301 extension system is ideal for use with USB peripherals including: keyboards, mice, interactive white boards (including SMART Boards and Promethean ActivBoards), and game controllers.

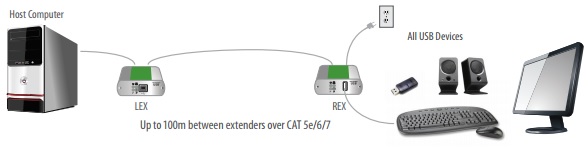

Icron 00-00391 USB 2.0 Ranger 2301 Diagram
Icron USB 2.0 Ranger 2301 (00-00391)

Icron USB 2.0 Ranger 2301 Features

  • USB 2.0 throughput up to 480 Mbps
  • Supplies up to 1 Amp to USB port
  • Operates with all USB controllers
  • Mass Storage Acceleration
  • FCC/CE Class B
  • Includes the ExtremeUSB suite of features:
    • Transparent USB extension
    • True plug and play; no software drivers required
    • Works with all major operating systems: Windows, macOS and Linux
  • Rugged metal enclosure

Ranger 2301 (00-00391) Package Contents

Whats Included In the Box? Icron Ranger 2301 (00-00391) Package Contents

  1. (1) Icron USB 2.0 Ranger 2301 Transmitter (LEX)
  2. (1) Icron USB 2.0 Ranger 2301 Receiver (REX)
  3. (1) 6ft / 2m USB 2.0 Type A to Type B cable
  4. (1) Power Adapter and US-specific Power Cord
  5. (1) Quick Start Guide
  6. (1) 2-Year Standard Warranty

Icron Ranger 2301 (00-00391) Specifications

Mechanical
LEX (Local Extender)86.0mm x 75.0mm x 26.0mm (3.4″ x 3.0″ x 1.0″)
REX (Remote Extender)6.0mm x 75.0mm x 26.0mm (3.4″ x 3.0″ x 1.0″)
Environmental
Operating Temperature0°C to 50°C (32°F to 122°F)
Storage Temperature-20°C to 70°C (-4°F to 158°F)
Operating Humidity20% to 80% relative humidity, non-condensing
Storage Humidity10% to 90% relative humidity, non-condensing
LEX (Local Extender)
USB Connector1 x USB Type B Receptacle
Link Connector1 x RJ45
MountingSlots for cable ties or optional mounting kit available
Enclosure MaterialSilver anodized aluminium
REX (Remote Extender)
USB Connector

1 x USB Type A Receptacle

Link Connector1 x RJ45
Available Currentup to 1 Amp to USB port
Power Supply100-240V AC Input, 5V 3A DC Output
MountingSlots for cable ties or optional mounting kit available
Enclosure MaterialSilver anodized aluminium
Compliance
EMCFCC (Class B), CE (Class B)
EnvironmentalRoHS2, REACH, Conflict Minerals
USB Device Support
Maximum USB 2.0 ThroughputUp to 480Mbps
Maximum USB 1.1 ThroughputUp to 12Mbps
Traffic TypesAll USB 2.0 and 1.1 Traffic Types
Device TypesAll USB 2.0 and 1.1 Device Types
Range
Direct ConnectUp to 100m (330 ft) over CAT 5e/6/7

This is the replacement for the Icron USB 2.0 Ranger 2101 (P/N: 00-00231) and Icron USB 2.0 Ranger 2201 (P/N: 00-00297)

Question: What size is the power adaptor connector on my Icron 2310 I recently purchased from you? 5.5 mm OD, 2.1 mm? 5.5 mm OD, 2.5 mm ID? or other size? Thank you!
Answer: Thank you for your inquiry. The specifications for the 21-00111 power adapter state the inside diameter of the barrel is 1.7mm. According to our manufacturer contact, a micrometer measured the outside diameter at 4.78mm. That looks like it might match up with a 1.7mm ID x 4.75mm OD barrel. He is looking for additional information to confirm the OD.

For your reference here is the full description on the adapter:
21-00111: 5V 3A Power Adapter (Level VI); 5V 3A DC output, 100-240VAC input power supply with 1.7mm (ID) plug, and IEC320-C7/C8 2-pin connector.
