Icron Ranger 2304 - 4 Port USB 2.0 CAT5e Extender (330 ft)

00-00347

$380.00$361.45
Save $18.55
Extension via: CatX (up to 330 ft)
Ports: Extend up to 4 USB Devices
FREE Shipping on orders over $100

The Icron USB 2.0 Ranger 2304 (00-00347 or RG2304) is a four port USB 2.0 high speed extension solution, enabling USB 2.0 connections at up to 480Mbps over 100m/330ft of Cat 5e cabling. The Ranger 2304 is the latest USB 2.0 extender system from Icron, offering the same reliable USB 2.0 extension benefits as the Ranger 2204, but with faster throughputs when using read/write devices such as external hard drives as well as supporting a greater number of connections (up to 31 devices and hubs). The Ranger 2304 provides an integrated four port remote USB 2.0 powered hub delivering 600mA to each port supporting all USB 1.1, 2.0 and 3.0 device types (up to 480Mbps).

The Ranger 2304 provides true USB 2.0 extension at up to 480Mbps over Cat 5e cabling, without the need of additional software drivers. A true plug-and-play solution, the Ranger 2304 is compatible with all leading operating systems, and supports all USB 3.0, 2.0 and 1.1 peripherals such as flash drives, keyboards, mice, webcams and interactive whiteboards across a dedicated Cat 5e connection. An integrated four port hub allows for extension of up to four USB devices without the need for an additional hub.

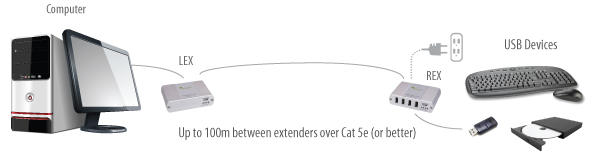

Icron 00-00347 USB 2.0 Ranger 2304 Application Diagram
Icron USB 2.0 Ranger 2304 Application Diagram

Icron USB 2.0 Ranger 2304 Features

  • Extends USB 3,0, 2.0, and 1.1 (both low-speed and full-speed) devices
  • Operates with USB 3.0, 2.0, and 1.1 hosts
  • Supports all USB devices up to 480Mbps
  • True plug and play. No drivers required
  • Supports all major operating systems: Windows, Mac OS X, and Linux
  • Uses a standard solid core Cat 5e cable for easy installation
  • Number of devices can be increased using additional USB hubs
  • FCC Class B
  • Rugged metal enclosure

Ranger 2304 (00-00347) Package Contents

Whats Included In the Box? Icron Ranger 2304 (00-00347) Package Contents

  1. (1) Icron USB 2.0 Ranger 2304 Transmitter (LEX)
  2. (1) Icron USB 2.0 Ranger 2304 Receiver (REX)
  3. (1) 6ft / 2m USB 2.0 Type A to Type B cable
  4. (1) Power Adapter and US-specific Power Cord
  5. (1) Quick Start Guide
  6. (1) 2-Year Standard Warranty

Icron Ranger 2304 (00-00347) Specifications

Mechanical
LEX (Local Extender)100mm x 76mm x 26mm (3.9" x 3.0" x 1.0")
REX (Remote Extender)100mm x 76mm x 26mm (3.9" x 3.0" x 1.0")
Environmental
Operating Temperature0°C to 50°C (32°F to 122°F)
Storage Temperature-10°C to 60°C (14°F to 140°F)
Operating Humidity20% to 80% relative humidity, non-condensing
Storage Humidity10% to 90% relative humidity, non-condensing
LEX (Local Extender)
USB Connector1 x USB Type B Receptacle
Link Connector1 x RJ45
REX (Remote Extender)
USB Connector

4 x USB Type A Receptacles

Link Connector1 x RJ45
Available CurrentUp to 600mA to each USB port
Power Supply100-240V AC input, 1A 24V DC Output
Compliance
EMCFCC (Class B), CE (Class B)
ComplianceRoHS2 (CE)
USB Device Support
Maximum USB 2.0 ThroughputUp to 480Mbps
Maximum USB 1.1 ThroughputUp to 12Mbps
Traffic TypesAll USB 2.0 and 1.1 Traffic Types
Device TypesAll USB 2.0 and 1.1 Device Types
Range
Direct ConnectUp to 100m (330 ft) over solid core Cat 5e or better

This is the replacement for the Icron USB 2.0 Ranger 2204 (P/N: 00-00256).

Question: Is this in stock?
Answer: Thank you for your inquiry,

We currently have plenty of the Icron 00-00347 in-stock and ready-to-ship from Iowa. 00-00347 are also regularly stocked so if you are looking for a very large quantity, those should be also be fulfilled quickly.

For the fastest and most up to date lead-time, please feel free to contact your KVM Switches Online sales representative directly.
