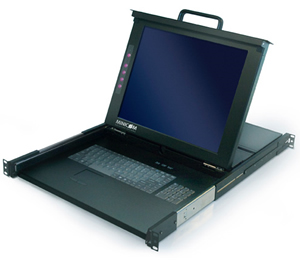

Minicom by Tripplite SmartRack 17" Rackmount LCD Drawer w/ Touch Pad
0SU52088
The Minicom by Tripplite SmartRack 0SU52088 is a 17", Single-rail Rackmount LCD.
Minicom by Tripplite 0SU52088 Features & Benefits:
- Space saving- When every U counts and every cable counts.
- Cost saving- Save on total cost of ownership of your server room by freeing up more U space for servers or devices.
- CAT5 technology- Eliminate cable clutter at the rack. Use standard UTP or FTP cables.
- Multi-platform- Supports PS/2, SUN and USB servers.
- Flexibility- Use CAT5 cabling to customize your server room.
- Multi-layer security through OSD- Three levels of security ensure only authorized users can control or access the system. 128-bit SSL protocol guards and protects your corporate data to efficiently prevent hacking and security breaches.
- Flash upgrade- Field firmware upgrade for the switches and ROC's.
Minicom by Tripplite 0SU52088 Specifications:
| Mechanical | |
| Height | 1.7 in. (44 mm.) |
| Width | 18.5 in. (470.1 mm.) |
| Depth | 17.6 in. (447.5 mm.) |
| Environmental | |
| Operating Temperature | 0° - 40° degree C/32° -104°F |
| Storage Temperature | 20° - 40° degree C/-4° - 104°F |
| Humidity | 10%~90%RH |
| Power | |
| Input | 100-240 VAC input |
| Monitor | |
| Display Size | 17" |
| Panel Type | Active Matrix TFT LCD |
| Resolution Capabilities | Maximum Resolution up to 1280X1024 |
| Pixel Pitch | Supports 0.264mm |
| Viewing Angle | Right-Left view 60° - 70° Up-Down view 45° - 60° |
| Contrast Ratio | 450:1 |
| Brightness | White 250cd/m2 |
| Back Light | Four Lamps |
| Supported Colors | 16.7M Colors |
| Compatibility | |
| Operating Systems | Windows, Linux, Unix and all other major operating systems |
| Response Time | Rising time 2-6ms Delay time 14-24ms |
| System Cables | CAT5 FTP or UTP 2x4x24 AWG solid wire |
| Sync | 45~80KHZ |
| Keyboard/Mouse | 106 key PS/2 keyboard with touch pad mouse |
| Connection Types | |
| System | 16 RJ45 |
| Serial | RJ11 |
| Computer to Switch Distance | Up to 30m/100ft |
This unit is also known as the 0SU52088/EN
Question: The part number I am looking for is a 1SU52088/EN. Is this an old part number?
Answer: Thank you for your inquiry. We are not familiar with the part number 1SU52088/EN. Traditionally, Minicom part numbers begin with a 0, though we have found a few mentioned online beginning with a 1. We also searched our database of old part numbers and could not find a match. It is possible the prefix 1 is a country specific code.
Answer: Thank you for your inquiry. We are not familiar with the part number 1SU52088/EN. Traditionally, Minicom part numbers begin with a 0, though we have found a few mentioned online beginning with a 1. We also searched our database of old part numbers and could not find a match. It is possible the prefix 1 is a country specific code.
