Minicom by Tripplite Smart 108 IP: 8 Port Single User Digital KVM Switch

0SU70032A

$1,116.80

Discontinued
For upgrade or replacement options: Contact Us

The Minicom by Tripplite Smart 108 IP 0SU70032 is an 8 port single user digital KVM switch which gives a system administrator secure, BIOS level access and control to a rack of up to 8 servers either remotely or locally. The rack mountable, 1U sized IP KVM switch features innovative ROC (RICC on Cable) dongle technology that directly connects the Smart 108 IP to each server in the rack, eliminating cable clutter and providing 30m/100ft of range between the server and switch.  For bigger applications such as globally distributed servers or data centers, Smart 116 IP can be managed seamlessly under Minicom by Tripplite's KVM.net centralized management system.

The Smart 108 IP supports the highest security standards for encryption (256-bit AES and HTTPS) and authentication of remote users. This IP KVM switch offers the option of exclusive mode, where users can choose not to share sessions with any other users. Administrators can configure user access rights, with advanced OSD management that has multi-layer security for both local and remote users. ROC dongles are necessary and proprietary to connect this switch to your server/computer and has the option of PS2 or USB connections. Accessories such as ROC dongles are not included but may be purchased separately.

Minicom by Tripplite Smart IP KVM Switch Features:

  • Controls up to 8 servers from a single console
  • Local or internet connection
  • Mixed server platform capability: PS/2 & USB
  • Compatible with Minicom by Tripplite's remote management solutions, AccessIT and KVM.net II
  • ROC technology enables up to 30m/100ft between computer and switch
  • Space saving - 1U, rack mountable
  • Multi-layer security
  • Remote users can connect from various platforms

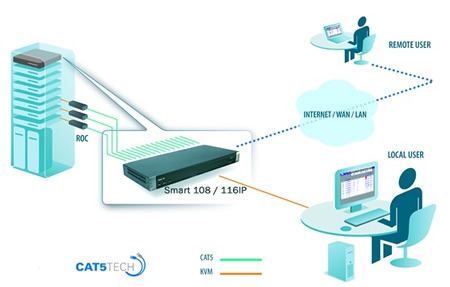

Minicom by Tripplite IP KVM Switch Application Diagram
Minicom by Tripplite IP KVM Switch Application Diagram

Minicom by Tripplite 0SU70032 Specifications:

Mechanical
Height 1.6 in. (41 mm.)
Width 17 in. (431 mm.)
Depth 6.93 in. (176 mm.)
Weight 5.6 lbs. (2.54 kg.)
Environmental
Operating Temperature 0°C to 40°C / 32° to 104°F
Storage Temperature -40°C to 70°C / -40° to 158°F
Power Supply 85 - 265 VAC 50 / 60 Hz
Connection Type
RJ45 LAN Auto sensing 10/100 Mbit /s
RJ45 Servers
RJ11 Service
HDD15/MiniDin6/MiniDin6 Local KVM Connection
Number of Remote Units 8
Operating System Host & Remote: Windows, LINUX
Resolution
Host 1600x1204@85Hz
Remote Recommended, resolution should be higher than local computer resolution
Maximum Distance 100 ft. (30 m.)
System cable CAT5 UTP/FTP Solid Wire 2x4x24 AWG
Host Mouse Driver Microsoft Driver or Operating System default mouse driver
Warranty 3 Years
Question: Is there a minicom/tripplite model that provides USB connections instead of PS2 for the console port?
Answer: Thank you for your inquiry. Unfortunately we currently do not have a Tripplite KVM Switch, such as the 0SU70032A which is configured for USB K/M. However, we do carry a few other switches that may work for your application if branding is immaterial; for example the UIP-802, AV2108-001, or DLX-108 IF you would like more direct assistance with your application needs, feel free to call us anytime at
1-877-586-6654 or join in a quick chat, located on the right side of all KVM Switches Online web pages
