3G-SDI to DVI Converter/Extender via Fiber Cable to 1,640 ft

3GSDI-DVI-FOSC

$1,995.00$1,834.48
Save $160.52
FREE Shipping on orders over $100

The 3G-SDI to DVI Converter/Extender converts SD/HD/3G-SDI video into a DVI signal that can be extended up to 1,640 feet (500 meters) using single-strand multimode SC fiber optic cable.

The Converter/Extender system has two components: the 3GSDI-DVI-FOSC converter/transmitter, which connects to the SD/HD/3G-SDI video source and also supplies video to a local DVI monitor, and an optional ST-1FODVI-R-SC receiver that connects to a remote DVI monitor. The units are interconnected by a single-strand multimode SC fiber optic cable.

Product Features and Benefits

  • Connects a computer or camera with a 3G-SDI/HD-SDI/SD-SDI video signal to a DVI display.
  • Use with an optical receiver (ST-1FODVI-R-SC) to extend a remote DVI monitor 1,640 feet (500 meters)
    • Signal transmission via single-strand multimode (50-micron or 62.5-micron) SC fiber optic cable - no RF interference.
  • Supports resolutions to 1080p.
  • Auto-detects 3G, HD or SD-SDI format.
  • Complies with DVI 1.0 standard.

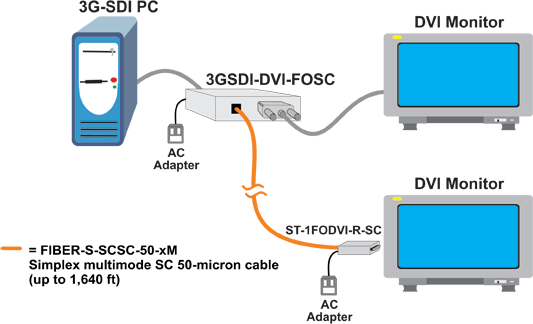

Product Diagram

Video InputOne female BNC connector for SD/HD/3G-SDI input signals.
Input signals: SMPTE 259M-C (270 Mbps), SMPTE 292M (1.485, 1.485/1.001 Gbps), and SMPTE 424M (2.970, 2.970/1.001 Gbps).
Video OutputOne female DVI-I single link connector for DVI output.
One female SC fiber connector for optical DVI output.
Supports resolutions to 1080p
Power100 to 240 VAC at 50 or 60 Hz via AC adapter.
Environmental
Operating Temperature32 to 122°F (0 to 50°C)
Storage Temperature-4 to 158°F (-20 to 70°C)
Relative Humidity10 to 80% non-condensing RH
DimensionsWxDxH in: 3.90x4.61x0.83 (99x117x21 mm)
Weight3.0 lb (1.36 kg)
ApprovalsRoHS
WarrantyTwo Years
